CS1

A button matrix with space to mount encoders, graphical OLED and character displays.

Schematic

Switch matrix, including (max) three encoder switches:

Switch Row Column
S1 2 A
S2 1 B
S3 1 C
S4 3 D
S5 2 D
S6 1 D
S7 1 E
S8 1 F
S9 2 G
S10 2 H
S11 3 A
S12 2 B
S13 2 C
S14 4 D
S15 4 E
S16 3 E
S17 2 E
S18 3 G
S19 3 H
S20 4 A
S21 3 B
S22 4 B
S23 3 C
S24 4 C
S25 4 F
S26 3 F
S27 2 F
S28 4 G
S29 4 H
ENSW1 1 A
ENSW2/3 1 G
ENSW4 1 H

Note that these headers are viewed from the front, so are “mirrored.” Pin 1 is AGND (0V).

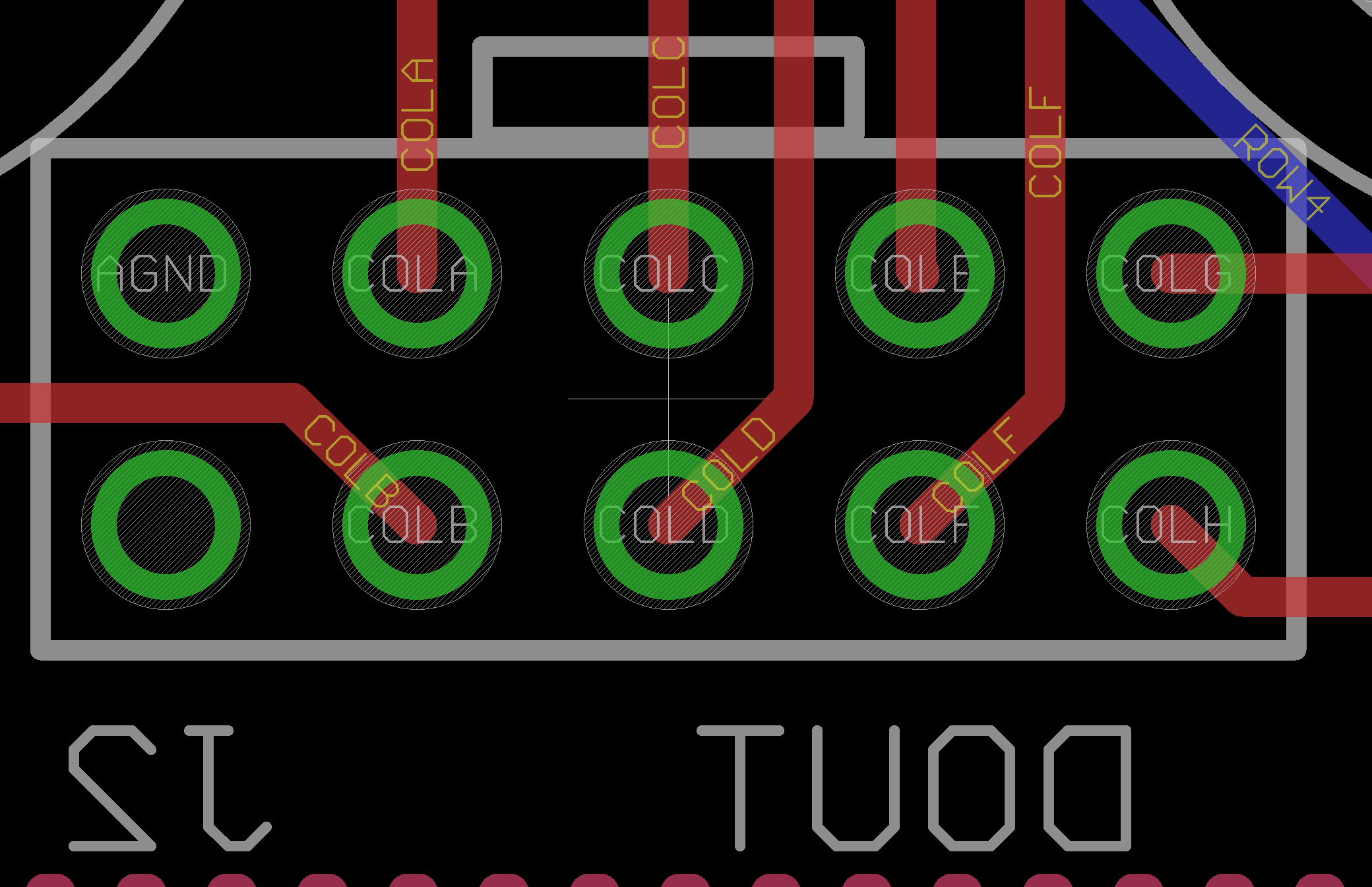

J2: DOUT columns

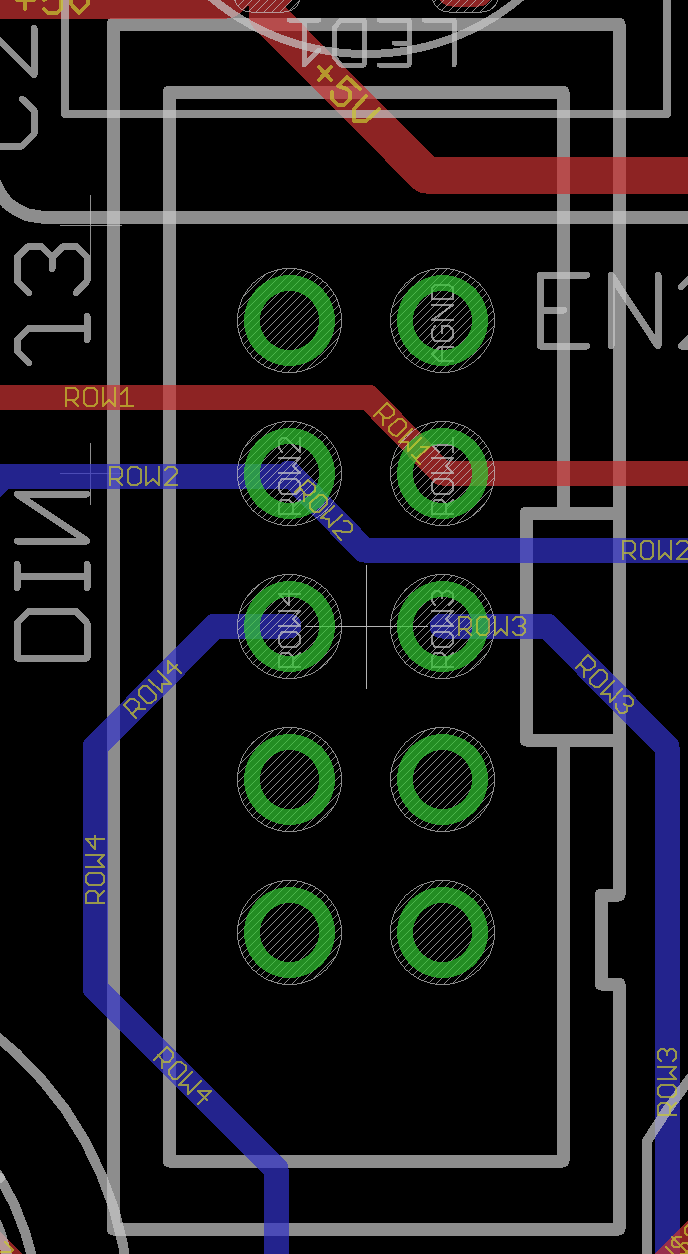

J3: DIN rows

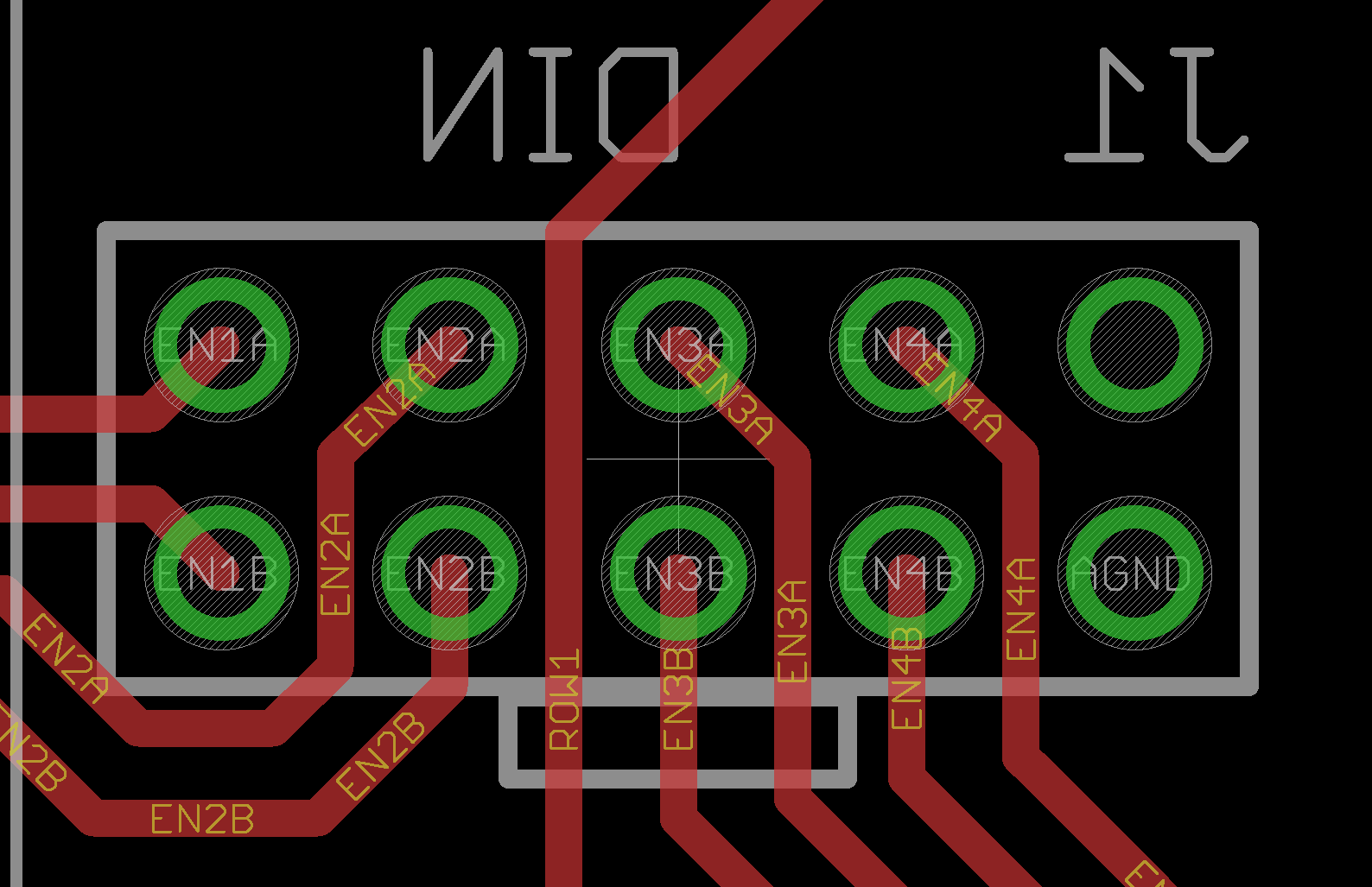

J1: encoders

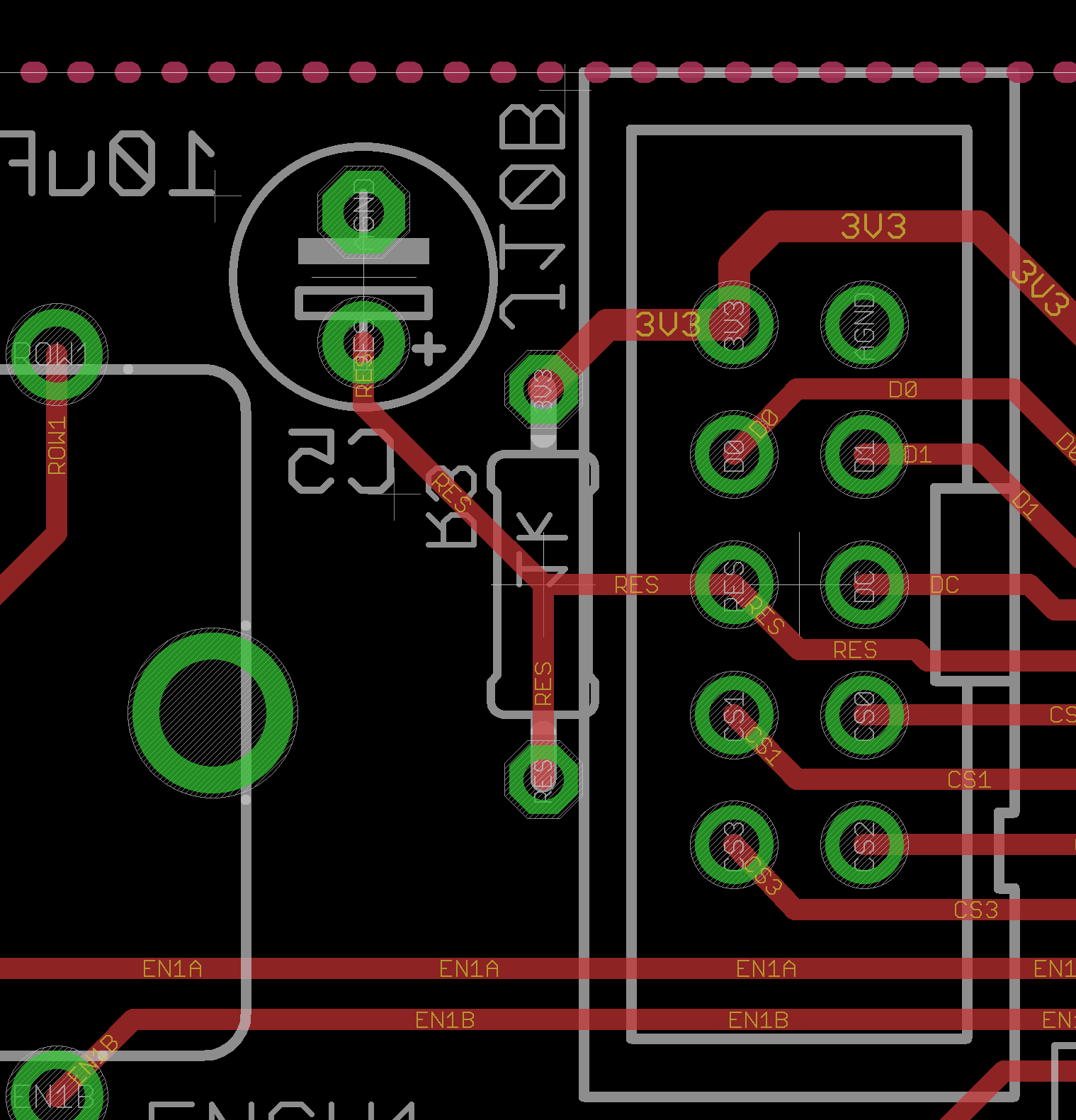

J10B: GPIO for typical SSD1306 OLEDs

Note the resistor/cap reset circuit.

J4 carries the WS2812B serial signal. R1 should be 220-470R for only the first module in the chain, thereafter a wire link. J5 is the serial chain output. R2 and C4 could terminate the serial signal but shouldn't be required.

J6 supplies +5V power through a 5817 diode. This is required; there is no power connection to J4.


BOM v1.0

Type Part Value
Caps C1 10-100uF
C2 100n
C3 100n
C4 DNF
C5 10uF
Diodes D1 1N4148DO35-7
D2 1N4148DO35-7
D3 1N4148DO35-7
D4 1N4148DO35-7
D5 1N4148DO35-7
D6 1N4148DO35-7
D7 1N4148DO35-7
D8 1N4148DO35-7
D9 1N4148DO35-7
D10 1N4148DO35-7
D11 1N4148DO35-7
D12 1N4148DO35-7
D13 1N4148DO35-7
D14 1N4148DO35-7
D15 1N4148DO35-7
D16 1N4148DO35-7
D17 1N4148DO35-7
D18 1N4148DO35-7
D19 1N4148DO35-7
D20 1N4148DO35-7
D21 1N4148DO35-7
D22 1N4148DO35-7
D23 1N4148DO35-7
D24 1N4148DO35-7
D25 1N4148DO35-7
D26 1N4148DO35-7
D27 1N4148DO35-7
D28 1N4148DO35-7
D29 1N4148DO35-7
D30 1N4148DO35-7
D31 1N4148DO35-7
D32 1N4148DO35-7
D111 1N5817
OLEDs DISP1 SSD1306 SPI4
DISP2 SSD1306 SPI4
DISP3 SSD1306 SPI4
DISP4 SSD1306 SPI4
Encoders EN2 ENCODER_NO_SWITCHSW
EN3 ENCODER_NO_SWITCHSW
ENSW1 ENCODER+SWITCHSW
ENSW2 ENCODER+SWITCHSW
ENSW3 ENCODER+SWITCHSW
ENSW4 ENCODER+SWITCHSW
Headers J1 DIN
J2 DOUT
J3 DIN
J4 WS2812
J5 WS2812
J6 +5v
J10B PINHD-2X54WALL
LEDs LED1 WS2812B
LED2 WS2812B
Resistors R1 220-470R or link
R2 DNF
R3 1k
Switches S1 DT6
S2 DT6
S3 DT6
S4 DT6
S5 DT6
S6 DT6
S7 DT6
S8 DT6
S9 DT6
S10 DT6
S11 DT6
S12 DT6
S13 DT6
S14 DT6
S15 DT6
S16 DT6
S17 DT6
S18 DT6
S19 DT6
S20 DT6
S21 DT6
S22 DT6
S23 DT6
S24 DT6
S25 DT6
S26 DT6
S27 DT6
S28 DT6
S29 DT6

Versions

v1.0: first release.

Assembly

Decide on the layout. Only four encoders are supported. ENSW1 and ENSW4 are always available; EN2/ENSW2 and EN3/ENSW3 share pins. The switch for ENSW2/ENSW3 is also shared. This way one can choose whether to have switched encoders or encoders illuminated with WS2812B LEDs.

If illuminated encoders are desired, install these and the associated capacitors first.

Next diodes and resistors/links. Align the diode band with the silkscreen legend. Next the two electrolytic caps.

OLEDs could be socketed using a right-angle pin header. This means a corresponding female header would need to replace the standard 7-pin one common to these displays.

Headers, switches and encoders come last. Note the flat part of the switch, which must align with the DT6 switch body. Illuminated encoders should be raised up around 2mm to fit over the LED and still turn freely.


Interconnection to Core

Headers are mentioned above. DIN/DOUT connect to DINX4/DOUTX4 or a DIOMATRIX. J10B to J10B

Dimensions

cs1.zip


License

Currently the design is © 2018 antilog devices with all rights reserved; all documentation is CC BY-NC-SA 3.0.
