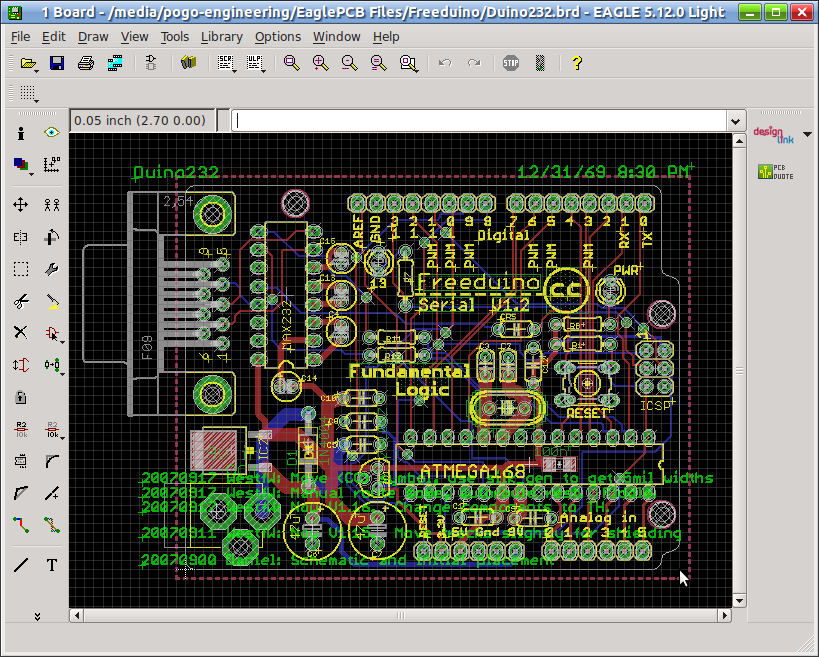

Eagle PCB Design Software

Eagle is a proprietary Computer Assisted Drawing (CAD) software for designing Printed Circuit Boards (PCBs) from Schematics to Gerber Files. This is the software that have primarily been used to design the MBHP PCB modules. It has limitations on PCB size on the freeware version.

You can find the official website here : http://www.cadsoftusa.com/

First, download the correct installer for your operating system at

http://www.cadsoftusa.com/download-eagle/

Follow the instructions to get the program installed

A serie of official Getting Started videos to be found here:

http://www.cadsoftusa.com/eagle-pcb-design-software/guided-tour/#c760

MIDIbox Eagle Library

HowTo Custom Library

• Open the .brd file in Eagle
• Under the “view” menu choose “Display/Hide Layers…”
• Click the layer numbers on the left. Find the layers you want to print. Click “OK”.
• Click in the command line (above the image area“ and enter the command RATSNEST to show the ground plane.
• Under the file menu, choose “Export”, then choose “Picture”.
• Select an appropriate DPI (300+), click “monochrome”, click “browse” to name your image file.
• Eagle will generate a .png file suitable for printing from an image editor.
