The time-frame of the bulk order is not still well defined but it should take place in april/may of 2014.

You will find the technical informations about the MB-LRE8x2CS rev 4.6 PCB here.

I need to know also how much is the interest for:

• MB-LR4x2CS_RED: 4×2 LEDrings board already populated by (128x) 1206 red SMD LEDs but without encoders footprint,
• MB-LR4x2CS_BLUE: 4×2 LEDrings board already populated by (128x) 1206 blue SMD LEDs but without encoders footprint,
• MB-E4x2CS: 4×2 Encoders board, MB-LR4x2CS and MB-E4x2CS can be stacked one on the other.
• 20mm shaft undetended 16mm encoder, typically to use with MB-LRE8x2CS,
• 25mm shaft undetended 16mm encoder, typically to use with MB-E4x2CS.

MB-E4x2CS

MB-LR4x2CS

MB-LR4x2CS + MB-E4x2CS

Encoders

Notes:

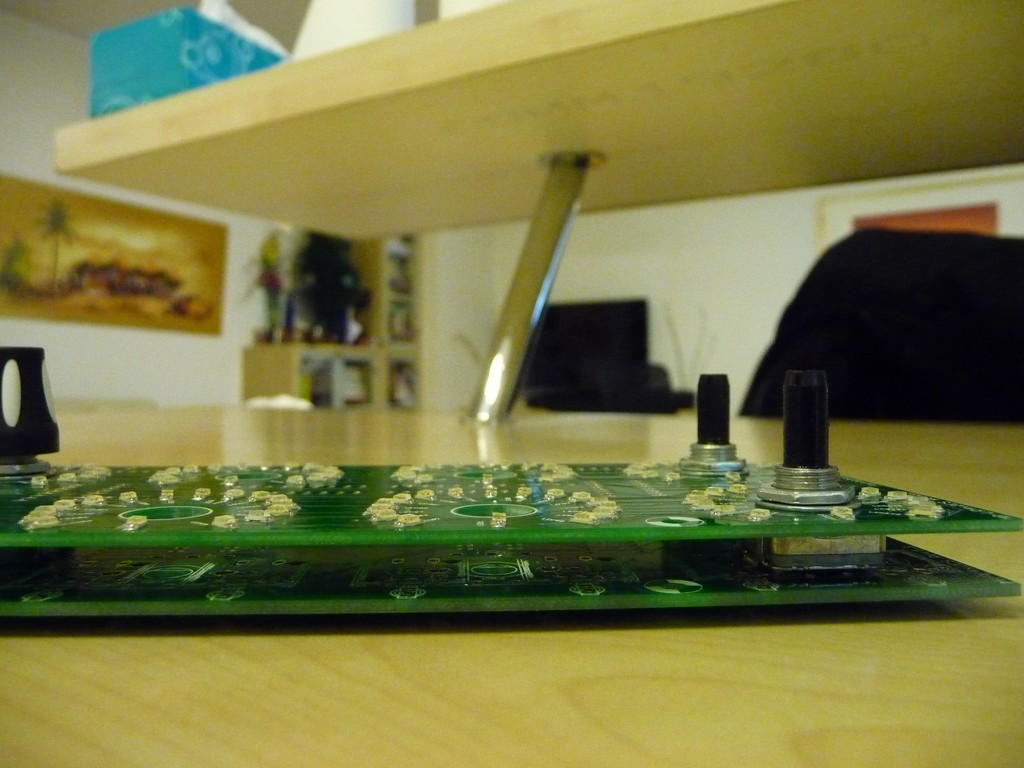

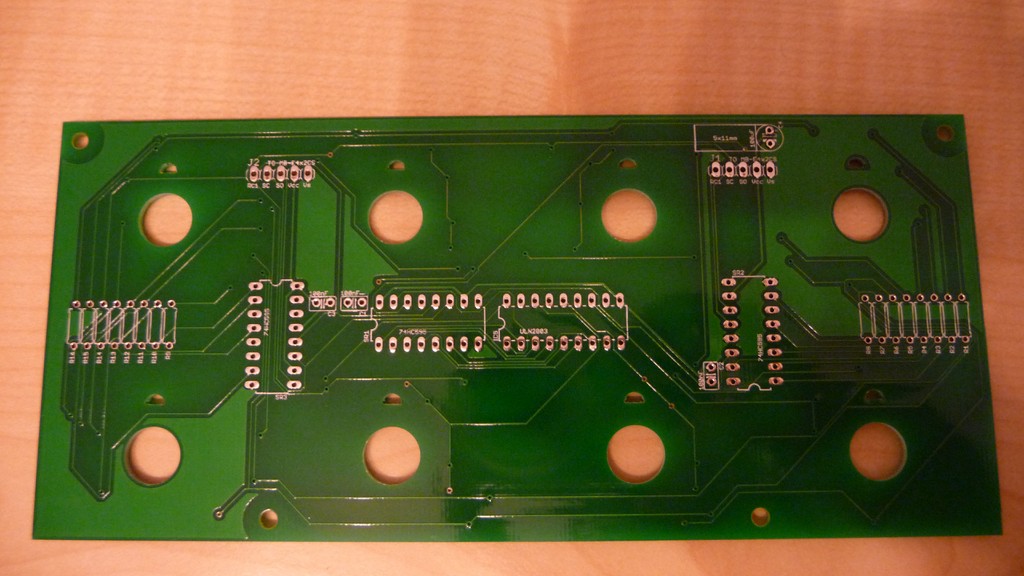

• MB-LR4x2CS consists of improved DOUTx3 modules and 8 SMD LEDrings. There is 8 holes (D=10mm) to let pass the shaft of the encoders toward.

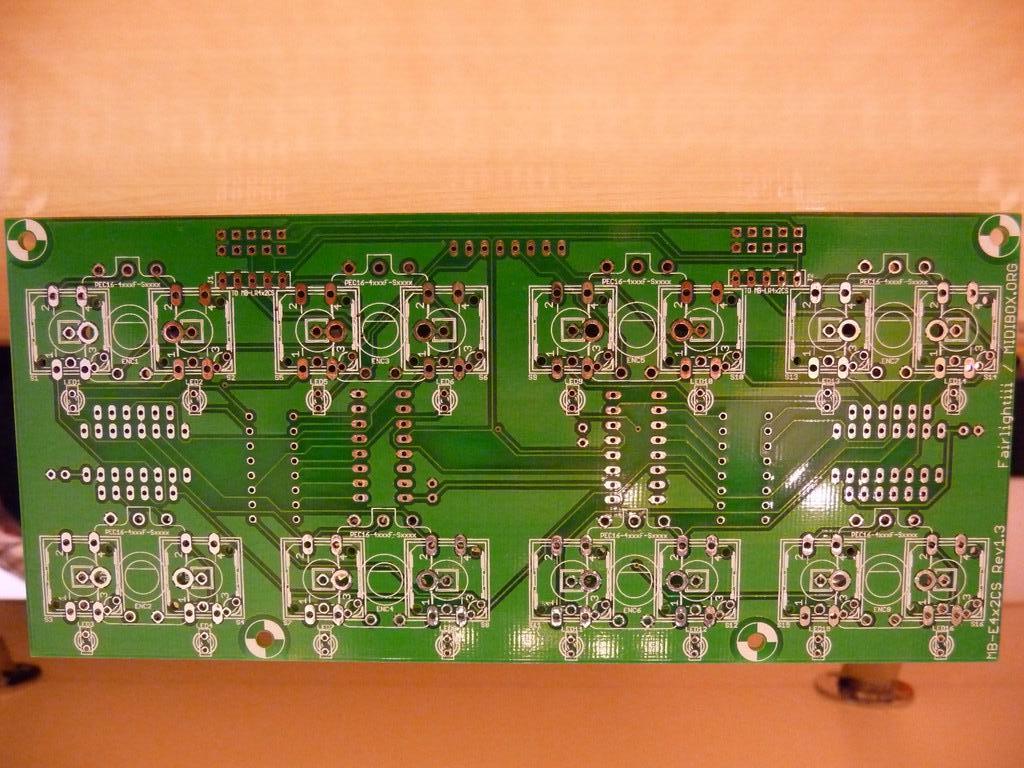

• MB-E4x2CS: consists of DINx2 modules and 8 encoders. I added also as option a DOUTx2 chain, the footprint for 16 LEDs and 16 tact switches (E-Switch TL1100 / OMRON B3F-40XX) onto the board so you can use it standalone with 16 switches or a mix of n x encoders + (16-2n) x switches (4 encoders + 8 switches e.g.) with for each switch the LED feedback.

EDIT: I added also the footprint for the 6425 MARQUARDT switch (with LED).

• MB-LR4x2CS and MB-E4x2CS have the same size: 6,716 x 3,025 inch (170,5864 x 76,835 mm) and their mounting holes match together.
• All the encoders are undetended and have a rational life of 100,000 cycles (…good quality).

All the price below are indicative. They will be definitive when the bulk order will start.

The accuracy of all this prices is enough good except for MB-LR4x2CS (because of the numbers of parameters to take in count).

EDIT: New prices (16/04/2014)

You can already fill your Username in the list below.

It is not an engagement but for me to estimate the amount of people interested and the number of boards/encoders and the shipping material that I will have to order.

1. Log into the Wiki (create an account if any),
2. Click on the “Edit this page” button (“pencil” symbol in the top right corner of this page),
3. Add your MIDIbox Forum username and the number of PCBs and encoders (multiple of 25) you would like,
4. Don't forget to update the quantities to the end of the list.

Use your full and correct FORUM (not the wiki) name, so I can reach you via PM or email.

Do not edit anything else on this page (except to correct my English or spelling mistakes!).

Jérôme aka Fairlightiii.

—–I tried to be clear but if I made a mistake or if I forgot something, don't hesitate to say it in the forum.—–
