The Pedal Box was built to be a very basic extension to a floorboard. Giving it an extra 8 Expression Pedals, and a display to see patch change / CC names, as well as their values. It has grown far beyond it's original intention.

Pedal Box

Is an expression pedal controller to expand an existing floorboard.
In addition to adding up to 8 expression pedals, up to 8 relays can be triggered and the LCD display reflects the actions of your existing floorboard as well.

Pedal Board

Expanding into Pedal Board - you can build a complete MIOS Powered Floorboard.

Is a complete MIOS/MBHP powered floorboard. It can support up to 16 buttons, with banks so there is up to 128 virtual buttons.
No matter how many buttons you connect, you can always access all 128 virtual buttons
It also supports another 16 fixed buttons, that are the same regardless of bank. Great for boost, or effect on/off functions. A further 2 special function buttons allow bank up/down and special functions.
Up to 8 relay's can be triggered and of course up to 8 expression pedals.

Each button or pedal can be assigned to a specific device, up to 7 devices can be controlled over 7 midi channels.

Pedal Box / Pedal Board features an extensive display system;
Program changes can be named, controls can be named, and can also display on/off, a meter showing approximate position for pedals. It can display tap tempo rate, or even the name of a value for a control - eg. For an Amp model select CC, it can display the model name selected.

• Expression Pedals
  • Up to 8 Expression Pedals or Pedal inputs (CV / 10k pot)
  • Individual option for pedals to be 'dynamic' by changing the midi messages sent based on the Rig COntrol Patch Change
  • Value scaled between pre-defined min and max values (can also be different for each program change)
  • A MIDI CC can be configured to act exactly as if it were connected to an analogue in (The 8 limit still applies)
• LCD Display
  • Named Program Changes
  • Named CC events
  • Bar Graph displaying value/on/off
  • up to 10 specific CC value name tables for effect selection, etc
  • Tap Tempo BPM display
• Pedal Board mode (max 34 buttons) - Optional
  • Up to 16 fixed midi output buttons with LED indicators
  • Up to 16 banked buttons for up to 128 midi commands with 16 LED indicators
  • Buttons toggle between a pre-defined min and max value
  • 2 modes for buttons: switching or momentary
  • Bank displayed on 2×7 segment LED digits or LCD (use 2×20 screen for bank display on LCD)
  • Bank Up / Down buttons
• Multiple MIDI Devices
  • Can be setup to control up to 7 devices (1 bankstick required per device)
  • Each pedal or button has it's own device assignment
• Rig Control
  • Internal patches allow up to 32 midi events can be sent at the same time giving you complete control of all you gear
  • Patches can be triggered by any button (PbD only) or a MIDI IN event (PbX only)
  • Up to 8 relays can be used to switch amplifier channels, or other analog switch.
  • Relays can be triggered from patches, a button or a MIDI In event
• Gig Control
  • 30 Song Lists can be setup to trigger patches in a given order
  • Up to 128 patches can be listed in any order
  • Cue Next / Cue Previous can be done from any button or a MIDI IN event
• PedalSwap
  • Allows dynamic pedals to change there midi settings without utilizing Rig Control
• PC Editor files allows easy…ish customization for different MIDI devices.
• Settings configurable from box. (this is a very slow process but can you help you out in pinch, it's far quicker to use the PC Editor).


Basically Pedal Box is a MIDI Monitor / Processor. Pedal Board is a… well… floorboard.

* - Setup can still be done via the PC Editor and uploaded via MIDI

Here are some examples of what is displayed on the LCD.

Program changes
Controllers
Controllers
Controllers
Controllers
On/Off controls
Tap Tempo Display

The Complete Usage Manual

Help can be found in the Pedal Box forum thread

Pedal Box / Pedal Board has been written in C for PIC18F4620.
The legacy version for the PIC18F452 is no longer available.

• No Sysex Support

Firstly your PIC must be setup with bootloader and MIOS 1.9 or higher.
You should be familiar with compliling 'C' files for MIOS.
As well as uploading files to the Core module. See http://www.ucapps.de/

You need to upload the PB software, as well as fill the banksticks with the required info.

The first bankstick is used by PB with info about itself (Master Bankstick), the others are used to tell PB info about the devices it is controlling (Device Banksticks).

USE THE PC EDITOR to setup and upload the Master Bankstick data.

You can also see the manual for more information.

Device Banksticks tell PB about the MIDI devices it is controlling

In these banksticks:

• The device name
• The default MIDI channel
• The Event Map
  • MIDI event name and event type
  • 128 Entries of CC's, 128 of Program Changes
• 10 x Parameter 2 value maps
  • Value name and associated value
  • Up to 128 entries each (1 for each value, does not need all entries)

USE THE PC EDITOR to setup and upload Device Bankstick data.

Now we are ready to upload Pedal Box. Browse to your Pedal Box directory and open the pbx_config.h file.
You need to customise the application here. Comments inside in main.h will tell you what each setting does.

Once you've customised the application it needs to be recompiled. Simply run re-make.bat.

Upload the created project.hex using MIOS Studio (or .syx using MIDI-OX or other midi software) file to the core module. MIOS will now reboot, and that's it!

PEDALBOARD - Set to 1 if for Pedalboard mode, or 0 for Pedalbox mode
ENABLE_MIDI_IN - If you wish to utilise the MIDI IN port, set to 1. Otherwise 0

MIDI_MERGER - To forward events recieved at the MIDI input to the output, set to 1. Otherwise 0.
MIDI_MERGER_DISABLE_MASTER - If the MIDI Merger is enabled, but you do not want to forward messages targeting functions of PB (eg. A patch change) - set to 1. Otherwise set to 0 to forward all messages.

AIN_DEADBAND - (standard MIOS question)
AIN_NUMBER_INPUTS - (standard MIOS question)

DIN_DEBOUNCE_VALUE - (standard MIOS question)

DIN_FIXED_BUTTONS - How many fixed or static footswitches are connected (0-16)
DIN_BANKED_BUTTONS - How many banked or dynamic footswitches are connected (1-16)

DIN_BANK_UP - The pin number assigned for bank up (2-33)
DIN_BANK_DOWN - The pin number assigned for bank down (2-33)
FIRST_PEDALSWAP_DIN_PIN - The pin assigned to the fist PedalSwap footswitch and LED Be wary that placement does not interfere with Relays or LED Digit DOUT pins
NUM_PEDALSWAP_BUTTONS - Number of PedalSwap slots available (max and default = 6)
EVENT_SETUP_DIN_PIN - The pin number assigned for entering event setup mode (while holding bank down) (0-31) Can not be the same as bank up or down
GLOBAL_SETUP_DIN_PIN - The pin number assigned for entering global setup mode (while holding bank down) (0-31) Can not be the same as bank up or down

RELAY_SHIFT_REGISTER - If your using relays, which SR are they connected to if using SOME LED indicators, chosen SR must be after ALL POSSIBLE indicators
RELAY_LED_SHIFT_REGISTER - If your using LED indicators for relays, which SR are they connected to SR should be AFTER the relay SR

USE_LED_INDICATORS - Are you using LED indicators for each footswitch, set 1 for yes, 0 for no

DIGITS_CONNECTED - Numver of LED digits connected (0-2). Set 0 for none.
DOUT_DIGITS_SR - Which SR is the first digit connected to.

This is an example configured for:

• 4 expresson pedals, 8 fixed footswitches and 8 banked footswitches.

• There are 1 LED digit connected to shift register 3 (start at pin 25).

• There will also be 16 LED indicators for the footswitches .

• Bank down is at pin 16, bank up at pin 17.

• Special buttons for setup modes are the same as the first 2 fixed buttons.

• PedalSwap is activated py footswitches connected to pins 19 -24 (LED's on counterpart dout pins).

• Relays are located on Shift Register 4 (pin 32), and it's led indicators are on SR 5 (pin 40)

///////////////////////////////////////////////////////////////////////////
// Configuration Parameters
//
///////////////////////////////////////////////////////////////////////////

/* General Settings */
#define   PEDALBOARD             1  // 1 = Pedal Board mode    0 = Pedal Box mode
#define   ENABLE_MIDI_IN         1  // 1 = yes      0 = no

#define   MIDI_MERGER            0  // 0 = off   1 = on
#define   MIDI_MERGER_DISABLE_MASTER 1  // 0 = disabled  1 = enabled - If set will disable forwarding of events on the master bankstick channel



/* Pedal Settings */
#define   AIN_DEADBAND           7 // 7 for 7-bit midi is best
#define   AIN_NUMBER_INPUTS      4 // 1 - 8 - number of pots connected


/* Pedal Board Buttons */
#define   DIN_DEBOUNCE_VALUE     20 // debounce value

// FIXED BUTTONS MUST CONNECT FIRST
#define   DIN_FIXED_BUTTONS      8 // 0-16 buttons that always stay the same, regardless of bank

// BANKED BUTTONS MUST BE CONNECTED AFTER FIXED BUTTONS
#define   DIN_BANKED_BUTTONS     8 // 0-16 buttons that change with bank. 1 banked button will cause display errors when bank is over 99

 //THESE SPECIAL FUNCTION BUTTONS MUST BE CONNECTED AFTER THE BANKED BUTTONS!!!!!!!
#define   DIN_BANK_UP            17   // 2 - 33, pin number of button used to bank up
#define   DIN_BANK_DOWN          16   // 2 - 33, pin number of button used to bank down

#define  FIRST_PEDALSWAP_DIN_PIN 18  // 4 - 33, First PedalSwap DIN pin (others will be next higher sequentially)
					// Must be higher than Bank Up and Down
					// Be careful not to set the same in the space of LED Digits or Relays
					// Best place is next to the bank up/down pins
#define  NUM_PEDALSWAP_BUTTONS   6   // 0-6, Number of PedalSwap Buttons connected
					// if you wish to have access to all 6 via MIDI (with less than 6 buttons connected
					// - please set to 6 and leave the DIN pins free

 // THESE SPECIAL BUTTONS CAN BE ANY BUTTON CONNECTED, THEY ARE DUAL USE.
#define   EVENT_SETUP_DIN_PIN    0   // 0 - 33, pin number of button used to enter event setup
#define   GLOBAL_SETUP_DIN_PIN   1   // 0 - 33, pin number of button used to enter AIN setup


 /* Relay setup */
#define   RELAY_SHIFT_REGISTER     4 // 0 - 7 Relay's Shift Register
#define   RELAY_LED_SHIFT_REGISTER 5 // 0 - 7 Relay's LD indicator Shift Register


/* LED setup */
#define   USE_LED_INDICATORS     1  // Enable LED indicators connected 1 = Enabled 0 = Disabled

/* LED Digit Setup */
#define   DIGITS_CONNECTED       1  // 0-2 How many LED digits are connected
#define   DOUT_DIGITS_SR         3  // What SR do the digits start from.
                                    // 2nd digit will be on the next SR

                                    ////////////////////////////////////
                                    // IF NO LED DIGITS ARE CONNECTED //
                                    // A 2x20 LCD DISPLAY CAN BE USED //
                                    // WITH THE BANK DISPLAYED ON THE //
                                    // LAST 4 CHARACTERS              //
                                    ////////////////////////////////////

Version 2.6:

• Possble issues with LED's not lighting up correctly
• (minor) Tap Tempo LED only fuctions when another led is lit up… cool huh?

Please report bugs in the Pedal Box forum thread

* 2.6beta1

• Fixed critcal rig control bug
• Fixed lagging with MIDI input while in Pedal Board mode. (May have wrecked led indicators in the process though)
• Relays can now be labeled and polarity set from the PB Editor software
• Reduced max cuelists to 20
• Added MIDI as AIN feature - allows a recieved CC to be translated as if it were an analogue input
• Added PedalSwap feature - temporarily change the settings of expression pedals

* 2.5beta3

• Fixed critcal analogue input bug
• Fixed startup display giberish
• Added better relay support (hard code only - pbx_relay_config.h)
  • Virtual polarity (on when off, off when on option)
  • Relays can be named
  • When relays switch - can display something meaningful (like Input 1, Input 2 instead of just on, off)
• Probably some other stuff - I just can't remember :)

• 2.5beta2
• Pedal Box Programming now enabled… oops
• Bug with LCD returning to show wrong current program after AIN fixed
• LCD will suspend for a short period after sending a program change

• 2.5beta1
• Available only for PIC18F4620
• Re-structure of midi event and device event map handling
• Added midi event type options for DIN/AIN and Rig Control
• supports all standard midi commands without requiring them in the device event map
• Device event map now for CC's and Program changes only, and must be listed in the appropriate slot.
• Improved MIDI In performance 100 fold
• Re-structure of LED handling
• Improved LED performance dramatically
• Lot's of bug fixes, general usage much more stable.

• 2.0 (beta4)
• Updated to new progarmming platform
• Separate download for different PIC types
• Added option to enable midi input for Pedal Board at the expense of LED Digits
• Added bankstick magic numbers
• Changed bankstick data format to accomadate magic numbers
• Device Table Skeleton had incorrect bankstick address for value maps 9 and 10 - Fixed.
• Rig Control Setup now loops back to the first message when after the last message during setup mode
• Bankstick is correctly shown when programming during rig control setup
• Bank now displays on the 4 characters of 2×20 LCD Display if not using LED digits
• Revamped multiple device usage.
• First bankstick is now for internal usage. all button / Pedal info, patches and song lists
• Limit of devices is now 7 (not 8)
• Bankstick usage has also been modified (v1 device files will not work without modification)
• Added Rig Control, up to 32 events can be triggered at once across any loaded device
• Added Gig Control. Song lists that change the patches in a given order with cue next / previous buttons
• Added support for relays to be used for switching amp channels, etc.
• Re-did a lot of code, trying to get code size down

• 1 x Core Module (PIC18F4620)
• 1 x 16×2 LCD Display
• 2 x 24LC256 Bankstick
• 1 x CV Pedal / Expression Pedal (or pot)
• A MIDI Floorboard / HUI (PbX) OR 1xDINX1 Module and 4 buttons (PbD)- Required for editing settings after upload

I use normalising (DPST) 6.5mm TRS Sockets.
Tip = +5 (vd)
Ring = CV (A#)
Sleeve = Ground (vs)

Ring and Sleeve are connected together on the normalising side.
When a jack is not inserted, CV connects straight to ground (prevents AIN jitter).

When inserting/removing a jack, make sure the control voltage = 0 (pedal off). Or you will pass voltage straight to ground, causing mios to crash, and maybe cause damage to the circuit.

If your using manufactured expresion pedals or other cv devices, check the pin assignment, some devices use a different setup.
With different setups, there is no way of stopping +5 being passed straight to ground while inserting/removing the jack (that i know of). Make sure you power off first!!!

Up to 34 buttons can be used with Pedal Board mode.
16 fixed buttons, 16 banked buttons, bank up and bank down

This gives a total of 144 possible midi commands.

The fixed buttons must be connected first (pin 0 up to 15), any amount 16 or less if fine (including none).
Fixed buttons are buttons numbers 1-16.

The banked buttons connect next (starting from the next available pin), again any number of banked buttons 16 or less is fine (including none).
They represent buttons 17-144.

The special function buttons pair up with bank down to access the setup menu's these can be any button aside from bank up or bank down. (pins defined in pbx_config.h)

How many of each type of button is defined in pbx_config.h.

The amount of banks available will vary with how many physical banked buttons you have. eg. with 2, there will be 64 banks, with 4 there will be 32 banks.
With 6 buttons there will be 22 banks. In bank 22, the first 2 buttons will represent button number 143 and 144, the 4 remaining will also represent 144.
If you don't have any banked buttons, bank display functions will also be disabled.

Buttons can have indicator LEDs displaying their curent status.
LEDs connect to the first 1,2,3 or 4 shift registers, matching up with their DIN counterparts.
eg. SR1 DIN D0 = DOUT D7, DIN D1 = DOUT D6

If you do not wish to use indicators for buttons, they must be disabled in pbx_config.h

2 seven segment LED digits can be connected to a DOUT module for bank display.
Pedal BoX does not use a LED matrix, each digit requires it's own shift register

Connect digits to the shift registers after LEDs, so if you only use 4 leds, still start at SR2 (or pin 8)

0, 1 or 2 digits can be used (defined in pbx_config.h). If no digits are used, the current bank is displayed on the LCD (requires a 2×20 display)

The shift register of the 1st digit (the one's display) must be defined in pbx_config.h
The second digit (ten's) will be automatically assigned to the next shift register.

If only 1 digit is used, and bank goes higher than 9. The dot will light up to let you know that '0' is actually 10, '1' is actually 11, etc

In place of LED digits. A 2×20 LCD Display can be used (instead of 2×16). The last 4 charcters of each line are used for bank display. This will only happen when DIGITS_CONNECTED = 0 in pbx_config.h.

Buttons, LEDs and LED Digits are only available for Pedal Board mode

Up to 8 relays can be connected to trigger external switches. Relays can be triggered with a button (PbD), a midi event (PbX) or within Rig Control (both).
Relays can also have separate indicator LEDs.

Relays connect to any free shift register (defined in pbx_config.h). The relay indicator LEDs are also assigned their own shift register.

NOTE: Be sure that you use free shift registers. Remember if you use LED indicators for buttons, the shift registers taken up by buttons are the same for their LED's. If not all buttons have LED's you must leave the DOUT pin's free on any pin that has a button connected on it's DIN counterpart.
If you don't use button indicator LED's, they can be disabled in pbx_config.h, freeing up the DOUT shift registers for use by relays or LED digits.

For information on how to connect relays to a DOUT module refer to the midio128 notes at ucapps:

• relay_example.pdf

• mbhp_doutx1_reed_relays.pdf

Or this forum thread about creating an FX Bypass/Looper

• http://www.midibox.org/forum/index.php?topic=11705.msg96483#msg96483

Please Note: Default connections have changed since 2.6. The default has only one digit connected to SR 5. With bank and PedalSwap footswitches and LED's attched to SR 4

Pedal Board Test Bench

I only built Pedal Box, so I use the Behringer FCV100 Foot Pedal in CV mode. But here's some links that came up on the forum.

• Banzai Effects stock a good range of momentary footswitches - perfect for this project
• Small Bear Electronics Specializes in DIY guitar sound effects
• stryd_one offered this google search for momentary footswitches. http://www.google.com.au/search?safe=off&q=momentary+SPST+footswitch

If you build Pedal Board please

• Allow control of Midi devices without using banksticks. So default numbers only setup is possible
• Add MIDI filter
• Add IIC Midi module so feedback can be recieved from the device (if running in pedal box mode with separate floorboard)
• Probably a lot more. I expect this will be an ongoing project

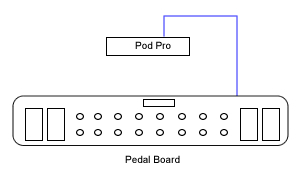

Here's a vision I had:

You know you want to build it!
