I made this Breakout-PCB and Frontpanel for the midiphy LoopA midiphy LoopA
PCB Size is 172x24mm
You have to decide if you want Midi Out 3 or the Gate OUT (space thing)
The Reset Switch and the SD, Card, are still on the base PCB…
If you want use the PCB you dont have place for the stock DIN Sockets!
ON this board we have 3 micromatch Connectors, which are crimped fast on a cable
On the other side of the cable you have to solder directly to the Base-PCB,

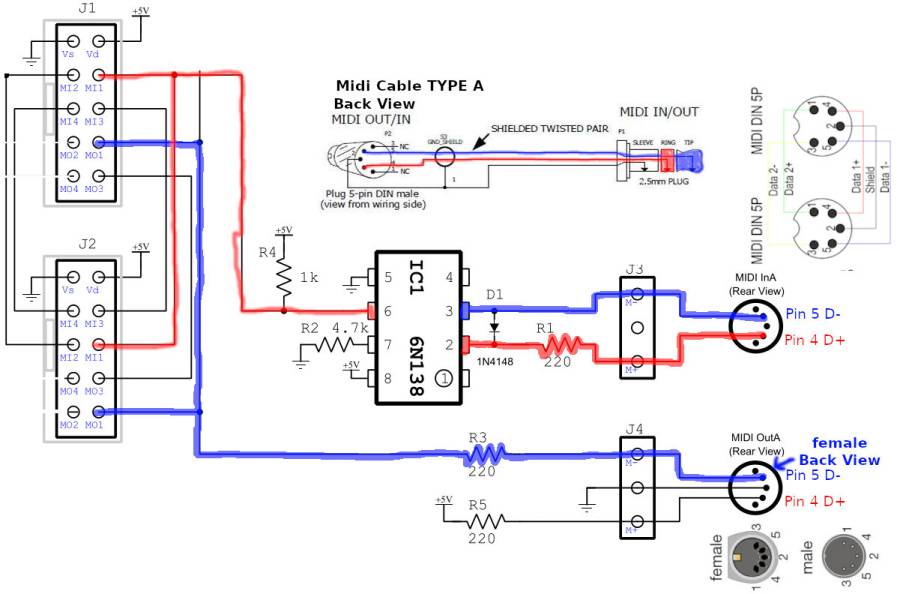

be carefull while soldering - and follow the shematic, which is layout for 3.5 Jack Midi Type B!
All necessery Information is printet on the PCB, but also check the Shematic…
5x Leiterplatten Montageblock aka Standoffs
3x Micromatch Socket 2x5Pole 1,27mm
6x Micromatch Crimp Connector you need only 3, the 3+ is for fails by crimping
1x Flat Cable 1,27mm pitch
8x 3,5 Audio Jack
12x Round 3mm Thruhole LEDs-RED-Flat
4x Round 3mm Thruhole LEDs-GREEN-Flat
And there will be some additional Fasting Material, like bolts, Screws, Standoffs, that i dont know right now, because the first protoype has to be built first…
I made a DXF File which you can send to: (once the prototypestate is gone)
Formulor in Germany - Acrylic … 2Pieces incl shipping 42€
frontpanels.de in germany my choose
The Beast - UK
2mm x 128.5 x 188.58 Aluminium, anodised
contact frontpanels: firstname.lastname@example.org
frontpanels-euroloopa.zip - NOT TESTET - REVERSE ENGENEERING!!!!!!
waiting for the PCBs and Panels… since the Panels are reverse - engineered - its praying for good luck!
Just let a Private message on the forum to user already involved.
