Running External Commands

Buttons can be added to the MIOS Studio toolbar to launch external commands, run scripts, etc. To setup an external command button:
  1. Right-click on the MIOS Studio toolbar and select "Add External Command Button".

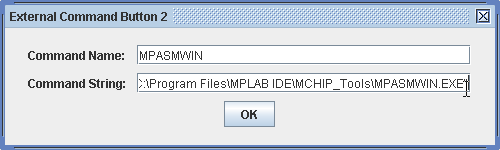

  2. On the newly added button, right-click and select "Properties" to bring up the External Command Button Properties box.



  3. In the External Command Button Properties box, add a name and/or a description for the button in the 'Command Name' field. Add the command to be run in the 'Command String' field - this is the command that you would us in a shell prompt, shortcut, run dialog, etc.



  4. After pressing 'OK', the button will be configured to run the external command when pressed. Keyboard shorcuts (Alt + 1..9) will be automatically assigned for the first 9 external command buttons added to the toolbar.
