dipBoard32
MIDIbox Hardware Platform extension for dipCore32.
features
- Very small size 65x46mm(less than your credit card).
- Very low profile.
- Your application board can be stacked on bottom with 'Micro-match' connectors.
- The dipCore32 can be installed on the two side.
- Provides all the most important features and ports as a regular mbhp.

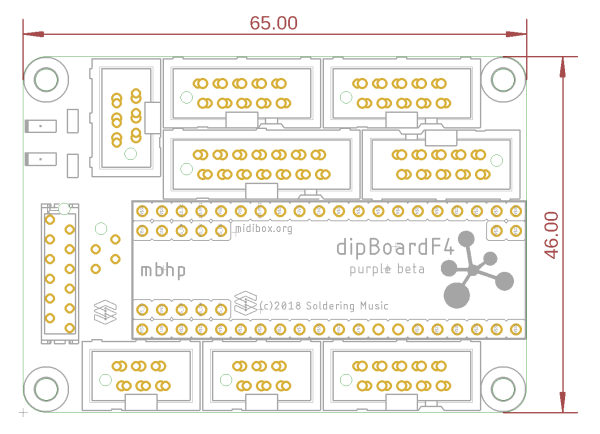

dimension

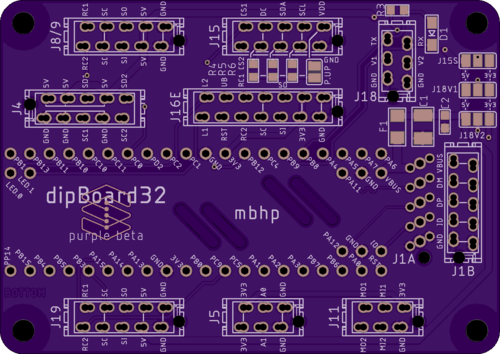

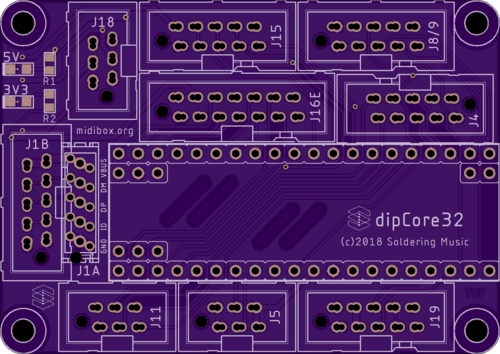

PCB

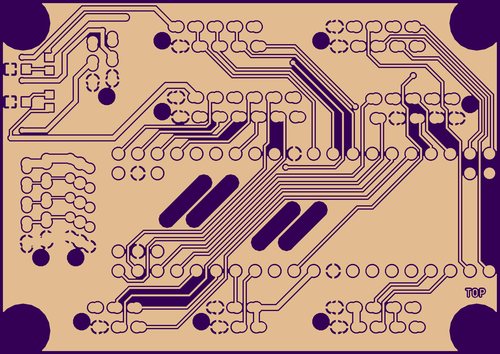

Top copper

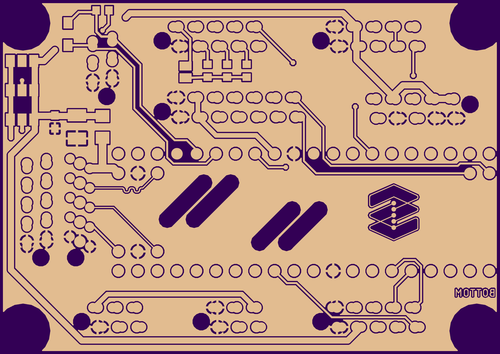

Bottom
toDo
