BLM SCALAR FIX -Based on findbhudda's original design: http://www.midibox.org/dokuwiki/doku.php?id=findbuddha
DESIGN SOFTWARE USED:
KiCAD for PCB/Schematics: http://kicad.sourceforge.net/wiki/Main_Page
KNOWN ISSUES / BUILD SUGGESTIONS:
- blm-scalar.* contain an error. Pins I4-I7 are mirrored. This is easily fixed with a connector modification, and the blm-scalar module seems to work as intended.
- blm-scalar v1.1 attempts to fix this error. Moved connectors J1, J2, Resistor Net 1 and R9 to make room for corrections.
DESIGN FILES:

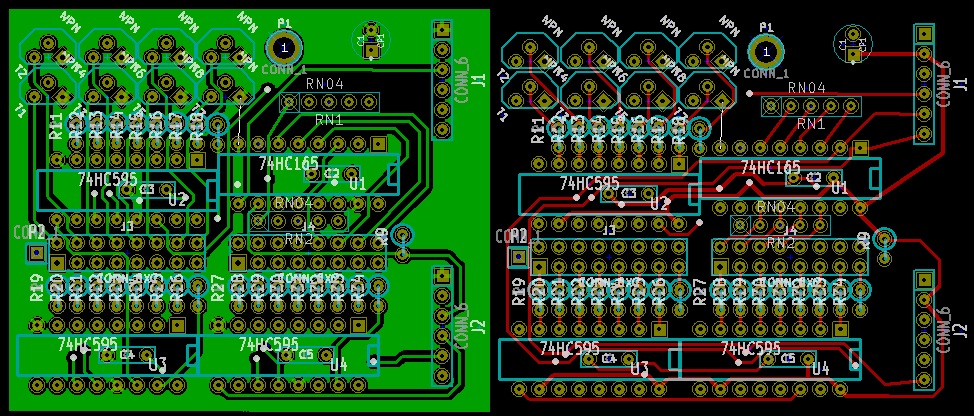

Corrected blm-scalar v1.1.brd below & attached: blm-scalar_v1.1.zip
Original findbhudda board below:
