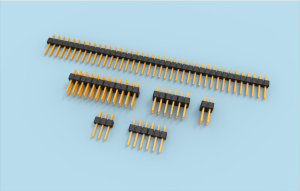

====== Pinheader ====== {{ ::neonking:pinheader.png?direct&300 |}} A pinheader is a basic connector to plug things on your PCB without having them soldered. It can be single or dual row. The usual pitch, aka the distance between 2 pins is 2,54mm.
