KEYBOARD

Defines
#define	DEBUG_MSG   MIOS32_MIDI_SendDebugMessage
#define	MATRIX_NUM_ROWS   16
#define	KEYBOARD_NUM_PINS   (16*MATRIX_NUM_ROWS)
#define	FANTOM_XR_VARIANT   0
Functions
s32	KEYBOARD_Init (u32 mode)
s32	KEYBOARD_ConnectedNumSet (u8 num)
u8	KEYBOARD_ConnectedNumGet (void)
void	KEYBOARD_SRIO_ServicePrepare (void)
void	KEYBOARD_SRIO_ServiceFinish (void)
void	KEYBOARD_Periodic_1mS (void)
void	KEYBOARD_AIN_NotifyChange (u32 pin, u32 pin_value)
s32	KEYBOARD_TerminalHelp (void *_output_function)
s32	KEYBOARD_TerminalParseLine (char *input, void *_output_function)
s32	KEYBOARD_TerminalPrintConfig (int kb, void *_output_function)
s32	KEYBOARD_TerminalPrintDelays (int kb, void *_output_function)
Variables
keyboard_config_t	keyboard_config [KEYBOARD_NUM]

---

Detailed Description

Keyboard Handler

---

Define Documentation

#define DEBUG_MSG   MIOS32_MIDI_SendDebugMessage

#define FANTOM_XR_VARIANT   0

#define KEYBOARD_NUM_PINS   (16*MATRIX_NUM_ROWS)

#define MATRIX_NUM_ROWS   16

---

Function Documentation

void KEYBOARD_AIN_NotifyChange	(	u32	pin,
		u32	pin_value
	)

This function should be called from AIN_NotifyChange in app.c

In addition it should be called periodically from a task to handle the reduced bandwidth function.
See also apps/controllers/midibox_kb_v1/src/app.c

     // update AINs with current value
     // the keyboard driver will only send events on value changes
     {
       int pin;

       for(pin=0; pin<8; ++pin) {
        KEYBOARD_AIN_NotifyChange(pin, MIOS32_AIN_PinGet(pin));
       }
     }

Here is the call graph for this function:

u8 KEYBOARD_ConnectedNumGet

(

void

)

Returns number of connected keyboards

s32 KEYBOARD_ConnectedNumSet

(

u8

num

)

Sets number of connected keyboards

s32 KEYBOARD_Init

(

u32

mode

)

Initialize the keyboard handler

Parameters:

	mode	== 0: init configuration + runtime variables
	mode	> 0: init only runtime variables

void KEYBOARD_Periodic_1mS

(

void

)

This function should be called periodically (each mS) to check for pin changes

Here is the call graph for this function:

void KEYBOARD_SRIO_ServiceFinish

(

void

)

This hook is called after the shift register chain has been scanned

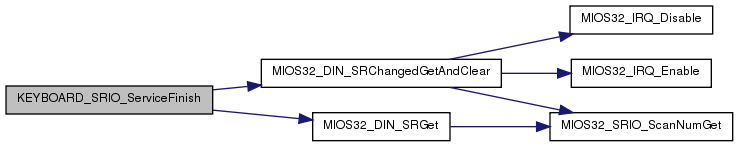

Here is the call graph for this function:

void KEYBOARD_SRIO_ServicePrepare

(

void

)

This hook is called before the shift register chain is scanned

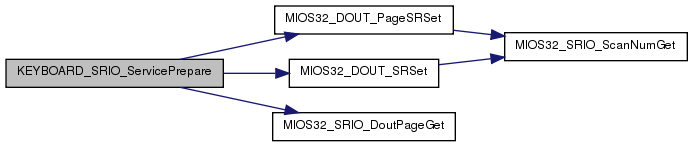

Here is the call graph for this function:

s32 KEYBOARD_TerminalHelp

(

void *

_output_function

)

Returns help page for implemented terminal commands of this module

Here is the call graph for this function:

s32 KEYBOARD_TerminalParseLine	(	char *	input,
		void *	_output_function
	)

Parser for a complete line

Returns:

> 0 if command line matches with UIP terminal commands

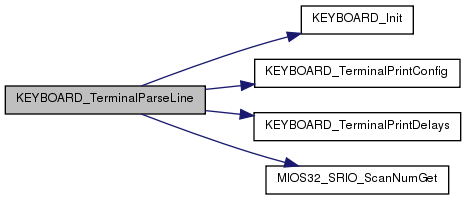

Here is the call graph for this function:

s32 KEYBOARD_TerminalPrintConfig	(	int	kb,
		void *	_output_function
	)

Keyboard Configuration (can also be called from external)

s32 KEYBOARD_TerminalPrintDelays	(	int	kb,
		void *	_output_function
	)

Keyboard Configuration (can also be called from external)

---

Variable Documentation

keyboard_config_t keyboard_config[KEYBOARD_NUM]
