MIOS32_BOARD
Defines |
#define | J5_NUM_PINS 0 |
#define | J10_NUM_PINS 0 |
#define | J28_NUM_PINS 0 |
#define | J15_AVAILABLE 0 |
#define | J5_NUM_PINS 0 |
#define | J10_NUM_PINS 0 |
#define | J28_NUM_PINS 0 |
#define | J15_AVAILABLE 0 |
#define | J5_NUM_PINS 0 |
#define | J10_NUM_PINS 0 |
#define | J28_NUM_PINS 0 |
#define | J15_AVAILABLE 0 |
Functions |
s32 | MIOS32_BOARD_Init (u32 mode) |
s32 | MIOS32_BOARD_LED_Init (u32 leds) |
s32 | MIOS32_BOARD_LED_Set (u32 leds, u32 value) |
u32 | MIOS32_BOARD_LED_Get (void) |
s32 | MIOS32_BOARD_J5_PinInit (u8 pin, mios32_board_pin_mode_t mode) |
s32 | MIOS32_BOARD_J5_Set (u16 value) |
s32 | MIOS32_BOARD_J5_PinSet (u8 pin, u8 value) |
s32 | MIOS32_BOARD_J5_Get (void) |
s32 | MIOS32_BOARD_J5_PinGet (u8 pin) |
s32 | MIOS32_BOARD_J10_PinInit (u8 pin, mios32_board_pin_mode_t mode) |
s32 | MIOS32_BOARD_J10_Set (u16 value) |
s32 | MIOS32_BOARD_J10_PinSet (u8 pin, u8 value) |
s32 | MIOS32_BOARD_J10_Get (void) |
s32 | MIOS32_BOARD_J10_PinGet (u8 pin) |
s32 | MIOS32_BOARD_J10A_Get (void) |
s32 | MIOS32_BOARD_J10A_Set (u8 value) |
s32 | MIOS32_BOARD_J10B_Get (void) |
s32 | MIOS32_BOARD_J10B_Set (u8 value) |
s32 | MIOS32_BOARD_J28_PinInit (u8 pin, mios32_board_pin_mode_t mode) |
s32 | MIOS32_BOARD_J28_Set (u16 value) |
s32 | MIOS32_BOARD_J28_PinSet (u8 pin, u8 value) |
s32 | MIOS32_BOARD_J28_Get (void) |
s32 | MIOS32_BOARD_J28_PinGet (u8 pin) |
s32 | MIOS32_BOARD_J15_PortInit (u32 mode) |
s32 | MIOS32_BOARD_J15_DataSet (u8 data) |
s32 | MIOS32_BOARD_J15_SerDataShift (u8 data) |
s32 | MIOS32_BOARD_J15_RS_Set (u8 rs) |
s32 | MIOS32_BOARD_J15_RW_Set (u8 rw) |
s32 | MIOS32_BOARD_J15_E_Set (u8 lcd, u8 e) |
s32 | MIOS32_BOARD_J15_GetD7In (void) |
s32 | MIOS32_BOARD_J15_D7InPullUpEnable (u8 enable) |
s32 | MIOS32_BOARD_J15_PollUnbusy (u8 lcd, u32 time_out) |
s32 | MIOS32_BOARD_DAC_PinInit (u8 chn, u8 enable) |
s32 | MIOS32_BOARD_DAC_PinSet (u8 chn, u16 value) |
Detailed Description
Development Board specific functions for MIOS32
Define Documentation
Function Documentation
s32 MIOS32_BOARD_DAC_PinInit |
( |
u8 |
chn, |
|
|
u8 |
enable | |
|
) |
| | |
This function enables or disables one of the two DAC channels provided by STM32F103RE (and not by STM32F103RB).
-
the first channel (chn == 0) is output at pin RA4 (J16:RC1 of the MBHP_CORE_STM32 module)
-
the second channel (chn == 1) is output at pin RA5 (J16:SC of the MBHP_CORE_STM32 module)
- Parameters:
-
[in] | chn | channel number (0 or 1) |
[in] | enable | 0: channel disabled, 1: channel enabled. |
- Returns:
- < 0 if DAC channel not supported (e.g. STM32F103RB)
s32 MIOS32_BOARD_DAC_PinSet |
( |
u8 |
chn, |
|
|
u16 |
value | |
|
) |
| | |
This function sets an output channel to a given 16-bit value.
Note that actually the DAC will work at 12-bit resolution. The lowest 4 bits are ignored (reserved for future STM chips).
- Parameters:
-
[in] | chn | channel number (0 or 1) |
[in] | value | the 16-bit value (0..65535). Lowest 4 bits are ignored. |
- Returns:
- < 0 if DAC channel not supported (e.g. STM32F103RB)
s32 MIOS32_BOARD_Init |
( |
u32 |
mode |
) |
|
Initializes MIOS32_BOARD driver
- Parameters:
-
[in] | mode | currently only mode 0 supported |
- Returns:
- < 0 if initialisation failed
s32 MIOS32_BOARD_J10_Get |
( |
void |
|
) |
|
This function returns the state of all pins of J10
- Returns:
- 8 bits which are forwarded from J10
This function returns the state of all pins of J10
- Returns:
- 16 bits which are forwarded from J10
s32 MIOS32_BOARD_J10_PinGet |
( |
u8 |
pin |
) |
|
This function returns the state of a single pin of J10
- Parameters:
-
[in] | pin | the pin number (0..7) |
- Returns:
- < 0 if pin not available
-
>= 0: input state of pin
This function returns the state of a single pin of J10
- Parameters:
-
[in] | pin | the pin number (0..15) |
- Returns:
- < 0 if pin not available
-
>= 0: input state of pin
Initializes a J10 pin
- Parameters:
-
[in] | pin | the pin number (0..7) |
[in] | mode | the pin mode
-
MIOS32_BOARD_PIN_MODE_IGNORE: configuration shouldn't be touched
-
MIOS32_BOARD_PIN_MODE_ANALOG: select analog input mode (default)
-
MIOS32_BOARD_PIN_MODE_INPUT: pin is used as input w/o pull device (floating)
-
MIOS32_BOARD_PIN_MODE_INPUT_PD: pin is used as input, internal pull down enabled
-
MIOS32_BOARD_PIN_MODE_INPUT_PU: pin is used as input, internal pull up enabled
-
MIOS32_BOARD_PIN_MODE_OUTPUT_PP: pin is used as output in push-pull mode
-
MIOS32_BOARD_PIN_MODE_OUTPUT_OD: pin is used as output in open drain mode
|
- Returns:
- < 0 if initialisation failed
Initializes a J10 pin
- Parameters:
-
[in] | pin | the pin number (0..15) |
[in] | mode | the pin mode
-
MIOS32_BOARD_PIN_MODE_IGNORE: configuration shouldn't be touched
-
MIOS32_BOARD_PIN_MODE_ANALOG: select analog input mode (default)
-
MIOS32_BOARD_PIN_MODE_INPUT: pin is used as input w/o pull device (floating)
-
MIOS32_BOARD_PIN_MODE_INPUT_PD: pin is used as input, internal pull down enabled
-
MIOS32_BOARD_PIN_MODE_INPUT_PU: pin is used as input, internal pull up enabled
-
MIOS32_BOARD_PIN_MODE_OUTPUT_PP: pin is used as output in push-pull mode
-
MIOS32_BOARD_PIN_MODE_OUTPUT_OD: pin is used as output in open drain mode
|
- Returns:
- < 0 if initialisation failed
s32 MIOS32_BOARD_J10_PinSet |
( |
u8 |
pin, |
|
|
u8 |
value | |
|
) |
| | |
This function sets a single pin of J10
- Parameters:
-
[in] | pin | the pin number (0..7) |
[in] | value | the pin value (0 or 1) |
- Returns:
- < 0 on errors
This function sets a single pin of J10
- Parameters:
-
[in] | pin | the pin number (0..15) |
[in] | value | the pin value (0 or 1) |
- Returns:
- < 0 on errors
s32 MIOS32_BOARD_J10_Set |
( |
u16 |
value |
) |
|
This function sets all pins of J10 at once
- Parameters:
-
[in] | value | 8 bits which are forwarded to J10 |
- Returns:
- < 0 on errors
This function sets all pins of J10 at once
- Parameters:
-
[in] | value | 16 bits which are forwarded to J10 |
- Returns:
- < 0 on errors
s32 MIOS32_BOARD_J10A_Get |
( |
void |
|
) |
|
This function returns the state of all pins of J10A (J10[7:0])
- Returns:
- 8 bits which are forwarded from J10A
s32 MIOS32_BOARD_J10A_Set |
( |
u8 |
value |
) |
|
This function sets all pins of J10A (J10[7:0]) at once
- Parameters:
-
[in] | value | 8 bits which are forwarded to J10A |
- Returns:
- < 0 on errors
s32 MIOS32_BOARD_J10B_Get |
( |
void |
|
) |
|
This function returns the state of all pins of J10B (J10[15:8])
- Returns:
- 8 bits which are forwarded from J10B
s32 MIOS32_BOARD_J10B_Set |
( |
u8 |
value |
) |
|
This function sets all pins of J10B (J10[15:8]) at once
- Parameters:
-
[in] | value | 8 bits which are forwarded to J10B |
- Returns:
- < 0 on errors
s32 MIOS32_BOARD_J15_D7InPullUpEnable |
( |
u8 |
enable |
) |
|
This function enables/disables the pull up on the D7 pin return < 0 if LCD port not available
s32 MIOS32_BOARD_J15_DataSet |
( |
u8 |
data |
) |
|
This function is used by LCD drivers under $MIOS32_PATH/modules/app_lcd to output an 8bit value on the data lines
- Parameters:
-
- Returns:
- < 0 if access to data port not supported by board
s32 MIOS32_BOARD_J15_E_Set |
( |
u8 |
lcd, |
|
|
u8 |
e | |
|
) |
| | |
This function is used by LCD drivers under $MIOS32_PATH/modules/app_lcd to set the E pin
- Parameters:
-
[in] | lcd | display port (0=J15A, 1=J15B) |
[in] | e | state of the E pin |
- Returns:
- < 0 if access to E pin not supported by board
s32 MIOS32_BOARD_J15_GetD7In |
( |
void |
|
) |
|
This function returns the state of the D7_IN pin return < 0 if LCD port not available return 0 if logic level is 0 return 1 if logic level is 1

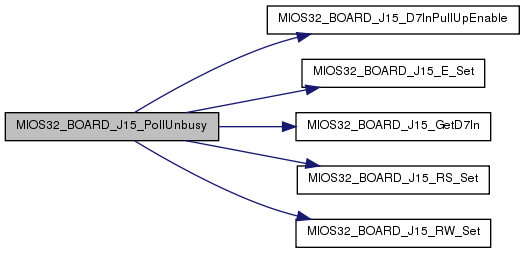

s32 MIOS32_BOARD_J15_PollUnbusy |
( |
u8 |
lcd, |
|
|
u32 |
time_out | |
|
) |
| | |
This function is used by LCD drivers under $MIOS32_PATH/modules/app_lcd to poll the busy bit (D7) of a LCD
- Parameters:
-
[in] | lcd | display port (0=J15A, 1=J15B) |
[in] | time_out | how many times should the busy bit be polled? |
- Returns:
- -1 if LCD not available
-
-2 on timeout return >= 0 on success
s32 MIOS32_BOARD_J15_PortInit |
( |
u32 |
mode |
) |
|
Initializes the J15 port
- Parameters:
-
[in] | mode |
-
0: J15 pins are configured in Push Pull Mode (3.3V)
-
1: J15 pins are configured in Open Drain mode (perfect for 3.3V->5V levelshifting)
|
- Returns:
- < 0 if initialisation failed
s32 MIOS32_BOARD_J15_RS_Set |
( |
u8 |
rs |
) |
|
This function is used by LCD drivers under $MIOS32_PATH/modules/app_lcd to set the RS pin
- Parameters:
-
[in] | rs | state of the RS pin |
- Returns:
- < 0 if access to RS pin not supported by board
s32 MIOS32_BOARD_J15_RW_Set |
( |
u8 |
rw |
) |
|
This function is used by LCD drivers under $MIOS32_PATH/modules/app_lcd to set the RW pin
- Parameters:
-
[in] | rw | state of the RW pin |
- Returns:
- < 0 if access to RW pin not supported by board
s32 MIOS32_BOARD_J15_SerDataShift |
( |
u8 |
data |
) |
|
This function is used by LCD drivers under $MIOS32_PATH/modules/app_lcd to shift an 8bit data value to LCDs with serial interface (SCLK connected to J15A:E, Data line connected to J15A:RW)
- Parameters:
-
- Returns:
- < 0 if access to data port not supported by board
s32 MIOS32_BOARD_J28_Get |
( |
void |
|
) |
|
This function returns the state of all pins of J28
- Returns:
- 8 bits which are forwarded from J28
s32 MIOS32_BOARD_J28_PinGet |
( |
u8 |
pin |
) |
|
This function returns the state of a single pin of J28
- Parameters:
-
[in] | pin | the pin number (0..7) |
- Returns:
- < 0 if pin not available
-
>= 0: input state of pin
Initializes a J28 pin
- Parameters:
-
[in] | pin | the pin number (0..3) |
[in] | mode | the pin mode
-
MIOS32_BOARD_PIN_MODE_IGNORE: configuration shouldn't be touched
-
MIOS32_BOARD_PIN_MODE_ANALOG: select analog input mode (default)
-
MIOS32_BOARD_PIN_MODE_INPUT: pin is used as input w/o pull device (floating)
-
MIOS32_BOARD_PIN_MODE_INPUT_PD: pin is used as input, internal pull down enabled
-
MIOS32_BOARD_PIN_MODE_INPUT_PU: pin is used as input, internal pull up enabled
-
MIOS32_BOARD_PIN_MODE_OUTPUT_PP: pin is used as output in push-pull mode
-
MIOS32_BOARD_PIN_MODE_OUTPUT_OD: pin is used as output in open drain mode
|
- Returns:
- < 0 if initialisation failed
Initializes a J28 pin
- Parameters:
-
[in] | pin | the pin number (0..7) |
[in] | mode | the pin mode
-
MIOS32_BOARD_PIN_MODE_IGNORE: configuration shouldn't be touched
-
MIOS32_BOARD_PIN_MODE_ANALOG: select analog input mode (default)
-
MIOS32_BOARD_PIN_MODE_INPUT: pin is used as input w/o pull device (floating)
-
MIOS32_BOARD_PIN_MODE_INPUT_PD: pin is used as input, internal pull down enabled
-
MIOS32_BOARD_PIN_MODE_INPUT_PU: pin is used as input, internal pull up enabled
-
MIOS32_BOARD_PIN_MODE_OUTPUT_PP: pin is used as output in push-pull mode
-
MIOS32_BOARD_PIN_MODE_OUTPUT_OD: pin is used as output in open drain mode
|
- Returns:
- < 0 if initialisation failed
s32 MIOS32_BOARD_J28_PinSet |
( |
u8 |
pin, |
|
|
u8 |
value | |
|
) |
| | |
This function sets a single pin of J28
- Parameters:
-
[in] | pin | the pin number (0..7) |
[in] | value | the pin value (0 or 1) |
- Returns:
- < 0 on errors
s32 MIOS32_BOARD_J28_Set |
( |
u16 |
value |
) |
|
This function sets all pins of J28 at once
- Parameters:
-
[in] | value | 8 bits which are forwarded to J28 |
- Returns:
- < 0 on errors
s32 MIOS32_BOARD_J5_Get |
( |
void |
|
) |
|
This function returns the state of all pins of J5
- Returns:
- 8 bits which are forwarded from J5A/B
This function returns the state of all pins of J5
- Returns:
- 12 bits which are forwarded from J5A/B/C
s32 MIOS32_BOARD_J5_PinGet |
( |
u8 |
pin |
) |
|
This function returns the state of a single pin of J5
- Parameters:
-
[in] | pin | the pin number (0..7) |
- Returns:
- < 0 if pin not available
-
>= 0: input state of pin
This function returns the state of a single pin of J5
- Parameters:
-
[in] | pin | the pin number (0..11) |
- Returns:
- < 0 if pin not available
-
>= 0: input state of pin
Initializes a J5 pin
- Parameters:
-
[in] | pin | the pin number (0..7) |
[in] | mode | the pin mode
-
MIOS32_BOARD_PIN_MODE_IGNORE: configuration shouldn't be touched
-
MIOS32_BOARD_PIN_MODE_ANALOG: select analog input mode (default)
-
MIOS32_BOARD_PIN_MODE_INPUT: pin is used as input w/o pull device (floating)
-
MIOS32_BOARD_PIN_MODE_INPUT_PD: pin is used as input, internal pull down enabled
-
MIOS32_BOARD_PIN_MODE_INPUT_PU: pin is used as input, internal pull up enabled
-
MIOS32_BOARD_PIN_MODE_OUTPUT_PP: pin is used as output in push-pull mode
-
MIOS32_BOARD_PIN_MODE_OUTPUT_OD: pin is used as output in open drain mode
|
- Returns:
- < 0 if initialisation failed
Initializes a J5 pin
- Parameters:
-
[in] | pin | the pin number (0..11) |
[in] | mode | the pin mode
-
MIOS32_BOARD_PIN_MODE_IGNORE: configuration shouldn't be touched
-
MIOS32_BOARD_PIN_MODE_ANALOG: select analog input mode (default)
-
MIOS32_BOARD_PIN_MODE_INPUT: pin is used as input w/o pull device (floating)
-
MIOS32_BOARD_PIN_MODE_INPUT_PD: pin is used as input, internal pull down enabled
-
MIOS32_BOARD_PIN_MODE_INPUT_PU: pin is used as input, internal pull up enabled
-
MIOS32_BOARD_PIN_MODE_OUTPUT_PP: pin is used as output in push-pull mode
-
MIOS32_BOARD_PIN_MODE_OUTPUT_OD: pin is used as output in open drain mode
|
- Returns:
- < 0 if initialisation failed
s32 MIOS32_BOARD_J5_PinSet |
( |
u8 |
pin, |
|
|
u8 |
value | |
|
) |
| | |
This function sets a single pin of J5
- Parameters:
-
[in] | pin | the pin number (0..7) |
[in] | value | the pin value (0 or 1) |
- Returns:
- < 0 on errors
This function sets a single pin of J5
- Parameters:
-
[in] | pin | the pin number (0..11) |
[in] | value | the pin value (0 or 1) |
- Returns:
- < 0 on errors
s32 MIOS32_BOARD_J5_Set |
( |
u16 |
value |
) |
|
This function sets all pins of J5 at once
- Parameters:
-
[in] | value | 8 bits which are forwarded to J5A/B |
- Returns:
- < 0 on errors
This function sets all pins of J5 at once
- Parameters:
-
[in] | value | 12 bits which are forwarded to J5A/B/C |
- Returns:
- < 0 on errors
u32 MIOS32_BOARD_LED_Get |
( |
void |
|
) |
|
Returns the status of all LEDs
- Returns:
- status of all LEDs
s32 MIOS32_BOARD_LED_Init |
( |
u32 |
leds |
) |
|
Initializes LEDs of the board
- Parameters:
-
[in] | leds | mask contains a flag for each LED which should be initialized
-
MBHP_CORE_STM32: 1 LED (flag 0: green)
-
STM32_PRIMER: 2 LEDs (flag 0: green, flag 1: red)
|
- Returns:
- 0 if initialisation passed
-
-1 if no LEDs specified for board
-
-2 if one or more LEDs not available on board
Initializes LEDs of the board
- Parameters:
-
[in] | leds | mask contains a flag for each LED which should be initialized
-
STM32F4DISCOVERY: 4 LEDs (flag 0: green, flag1: orange, flag2: red, flag3: blue)
|
- Returns:
- 0 if initialisation passed
-
-1 if no LEDs specified for board
-
-2 if one or more LEDs not available on board
s32 MIOS32_BOARD_LED_Set |
( |
u32 |
leds, |
|
|
u32 |
value | |
|
) |
| | |
Sets one or more LEDs to the given value(s)
- Parameters:
-
[in] | leds | mask contains a flag for each LED which should be changed |
[in] | value | contains the value which should be set |
- Returns:
- 0 if initialisation passed
-
-1 if no LEDs specified for board
-
-2 if one or more LEDs not available on board
