MIOS32_DOUT
Functions | |
| s32 | MIOS32_DOUT_Init (u32 mode) |
| s32 | MIOS32_DOUT_PinGet (u32 pin) |
| s32 | MIOS32_DOUT_PinSet (u32 pin, u32 value) |
| s32 | MIOS32_DOUT_PagePinGet (u8 page, u32 pin) |
| s32 | MIOS32_DOUT_PagePinSet (u8 page, u32 pin, u32 value) |
| s32 | MIOS32_DOUT_SRGet (u32 sr) |
| s32 | MIOS32_DOUT_SRSet (u32 sr, u8 value) |
| s32 | MIOS32_DOUT_PageSRGet (u8 page, u32 sr) |
| s32 | MIOS32_DOUT_PageSRSet (u8 page, u32 sr, u8 value) |
Variables | |
| const u8 | mios32_dout_reverse_tab [256] |
Detailed Description
DOUT functions for MIOS32
Function Documentation
Initializes DOUT driver
- Parameters:
-
[in] mode currently only mode 0 supported
- Returns:
- < 0 if initialisation failed
Returns value from a DOUT Pin of given page
- Parameters:
-
[in] page number (0..MIOS32_SRIO_NUM_DOUT_PAGES-1) [in] pin number (0..127)
- Returns:
- 1 if pin is Vss (ie. 5V)
- 0 if pin is 0V
- -1 if pin not available
Here is the call graph for this function:
Sets value of a DOUT Pin in given page
- Parameters:
-
[in] page number (0..MIOS32_SRIO_NUM_DOUT_PAGES-1) [in] pin number (0..127) [in] value of the pin (0 or 1)
- Returns:
- -1 if pin not available

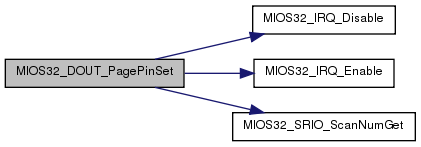

Here is the call graph for this function:
Returns 8bit value of a DOUT shift register of the given page
- Parameters:
-
[in] sr shift register number (0..15)
- Returns:
- 8bit value of shift register
- -1 if shift register not available
Here is the call graph for this function:
Sets 8bit value of a DOUT shift register in the given page.
- Parameters:
-
[in] sr shift register number (0..15) [in] value 8bit value of shift register
- Returns:
- -1 if shift register not available
Here is the call graph for this function:
Returns value from a DOUT Pin (always page 0)
- Parameters:
-
[in] pin number (0..127)
- Returns:
- 1 if pin is Vss (ie. 5V)
- 0 if pin is 0V
- -1 if pin not available
Here is the call graph for this function:
Sets value of a DOUT Pin
With MIOS32_SRIO_NUM_DOUT_PAGES > 1, the value will be set in all pages at once!
- Parameters:
-
[in] pin number (0..127) [in] value of the pin (0 or 1)
- Returns:
- -1 if pin not available

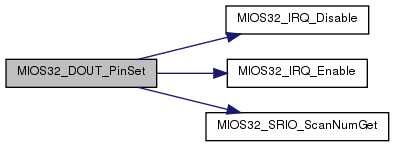

Here is the call graph for this function:
Returns 8bit value of a DOUT shift register (always from page 0)
- Parameters:
-
[in] sr shift register number (0..15)
- Returns:
- 8bit value of shift register
- -1 if shift register not available
Here is the call graph for this function:
Sets 8bit value of a DOUT shift register
With MIOS32_SRIO_NUM_DOUT_PAGES > 1, the value will be set in all pages at once!
- Parameters:
-
[in] sr shift register number (0..15) [in] value 8bit value of shift register
- Returns:
- -1 if shift register not available
Here is the call graph for this function:
Variable Documentation
| const u8 mios32_dout_reverse_tab[256] |
Initial value:
{
0x00,0x80,0x40,0xc0,0x20,0xa0,0x60,0xe0,0x10,0x90,0x50,0xd0,0x30,0xb0,0x70,0xf0,
0x08,0x88,0x48,0xc8,0x28,0xa8,0x68,0xe8,0x18,0x98,0x58,0xd8,0x38,0xb8,0x78,0xf8,
0x04,0x84,0x44,0xc4,0x24,0xa4,0x64,0xe4,0x14,0x94,0x54,0xd4,0x34,0xb4,0x74,0xf4,
0x0c,0x8c,0x4c,0xcc,0x2c,0xac,0x6c,0xec,0x1c,0x9c,0x5c,0xdc,0x3c,0xbc,0x7c,0xfc,
0x02,0x82,0x42,0xc2,0x22,0xa2,0x62,0xe2,0x12,0x92,0x52,0xd2,0x32,0xb2,0x72,0xf2,
0x0a,0x8a,0x4a,0xca,0x2a,0xaa,0x6a,0xea,0x1a,0x9a,0x5a,0xda,0x3a,0xba,0x7a,0xfa,
0x06,0x86,0x46,0xc6,0x26,0xa6,0x66,0xe6,0x16,0x96,0x56,0xd6,0x36,0xb6,0x76,0xf6,
0x0e,0x8e,0x4e,0xce,0x2e,0xae,0x6e,0xee,0x1e,0x9e,0x5e,0xde,0x3e,0xbe,0x7e,0xfe,
0x01,0x81,0x41,0xc1,0x21,0xa1,0x61,0xe1,0x11,0x91,0x51,0xd1,0x31,0xb1,0x71,0xf1,
0x09,0x89,0x49,0xc9,0x29,0xa9,0x69,0xe9,0x19,0x99,0x59,0xd9,0x39,0xb9,0x79,0xf9,
0x05,0x85,0x45,0xc5,0x25,0xa5,0x65,0xe5,0x15,0x95,0x55,0xd5,0x35,0xb5,0x75,0xf5,
0x0d,0x8d,0x4d,0xcd,0x2d,0xad,0x6d,0xed,0x1d,0x9d,0x5d,0xdd,0x3d,0xbd,0x7d,0xfd,
0x03,0x83,0x43,0xc3,0x23,0xa3,0x63,0xe3,0x13,0x93,0x53,0xd3,0x33,0xb3,0x73,0xf3,
0x0b,0x8b,0x4b,0xcb,0x2b,0xab,0x6b,0xeb,0x1b,0x9b,0x5b,0xdb,0x3b,0xbb,0x7b,0xfb,
0x07,0x87,0x47,0xc7,0x27,0xa7,0x67,0xe7,0x17,0x97,0x57,0xd7,0x37,0xb7,0x77,0xf7,
0x0f,0x8f,0x4f,0xcf,0x2f,0xaf,0x6f,0xef,0x1f,0x9f,0x5f,0xdf,0x3f,0xbf,0x7f,0xff
}
temporary help array to mirror a byte (could be provided as MIOS32 help function later)
