MIOS32_SYS

Defines
#define	MEM32(addr)   (*((volatile u32 *)(addr)))
#define	MEM16(addr)   (*((volatile u16 *)(addr)))
#define	MEM8(addr)   (*((volatile u8 *)(addr)))
#define	NUM_DMA_CHANNELS   8
#define	MEM32(addr)   (*((volatile u32 *)(addr)))
#define	MEM16(addr)   (*((volatile u16 *)(addr)))
#define	MEM8(addr)   (*((volatile u8 *)(addr)))
#define	EXT_CRYSTAL_FRQ   12000000
#define	RTC_PREDIVIDER   (EXT_CRYSTAL_FRQ/128)
#define	MEM32(addr)   (*((volatile u32 *)(addr)))
#define	MEM16(addr)   (*((volatile u16 *)(addr)))
#define	MEM8(addr)   (*((volatile u8 *)(addr)))
#define	EXT_CRYSTAL_FRQ   8000000
#define	PLL_M   8
#define	PLL_N   336
#define	PLL_P   2
#define	PLL_Q   7
Functions
s32	MIOS32_SYS_Init (u32 mode)
s32	MIOS32_SYS_Reset (void)
u32	MIOS32_SYS_ChipIDGet (void)
u32	MIOS32_SYS_FlashSizeGet (void)
u32	MIOS32_SYS_RAMSizeGet (void)
s32	MIOS32_SYS_SerialNumberGet (char *str)
s32	MIOS32_SYS_TimeSet (mios32_sys_time_t t)
mios32_sys_time_t	MIOS32_SYS_TimeGet (void)
s32	MIOS32_SYS_DMA_CallbackSet (u8 dma, u8 chn, void *callback)
void	DMA_IRQHandler (void)
Variables
u32	mios32_sys_isr_vector
u32	mios32_sys_isr_vector
u32	mios32_sys_isr_vector

---

Detailed Description

System Initialisation for MIOS32

---

Define Documentation

#define EXT_CRYSTAL_FRQ   8000000

#define EXT_CRYSTAL_FRQ   12000000

#define MEM16

(

addr

)

(*((volatile u16 *)(addr)))

#define MEM16

(

addr

)

(*((volatile u16 *)(addr)))

#define MEM16

(

addr

)

(*((volatile u16 *)(addr)))

#define MEM32

(

addr

)

(*((volatile u32 *)(addr)))

#define MEM32

(

addr

)

(*((volatile u32 *)(addr)))

#define MEM32

(

addr

)

(*((volatile u32 *)(addr)))

#define MEM8

(

addr

)

(*((volatile u8 *)(addr)))

#define MEM8

(

addr

)

(*((volatile u8 *)(addr)))

#define MEM8

(

addr

)

(*((volatile u8 *)(addr)))

#define NUM_DMA_CHANNELS   8

#define PLL_M   8

#define PLL_N   336

#define PLL_P   2

#define PLL_Q   7

#define RTC_PREDIVIDER   (EXT_CRYSTAL_FRQ/128)

---

Function Documentation

void DMA_IRQHandler

(

void

)

u32 MIOS32_SYS_ChipIDGet

(

void

)

Returns the Chip ID of the core

Returns:

the chip ID

s32 MIOS32_SYS_DMA_CallbackSet	(	u8	dma,
		u8	chn,
		void *	callback
	)

Installs a DMA callback function which is invoked on DMA interrupts
Available for LTC17xx (and not STM32) since it only provides a single DMA interrupt which is shared by all channels.

Parameters:

[in]	dma	the DMA number (currently always 0)
[in]	chn	the DMA channel (0..7)
[in]	callback	the callback function which will be invoked by DMA ISR

Returns:

-1 if function not implemented for this MIOS32_PROCESSOR

-2 if invalid DMA number is selected

-2 if invalid DMA channel selected

u32 MIOS32_SYS_FlashSizeGet

(

void

)

Returns the Flash size of the core

Returns:

the Flash size in bytes

s32 MIOS32_SYS_Init

(

u32

mode

)

Initializes the System for MIOS32:

• enables clock for IO ports
• configures pull-ups for all IO pins
• initializes PLL for 72 MHz @ 12 MHz ext. clock
  (skipped if PLL already running - relevant for proper software reset, e.g. so that USB connection can survive)
• sets base address of vector table
• configures the suspend flags in DBGMCU_CR as specified in MIOS32_SYS_STM32_DBGMCU_CR (can be overruled in mios32_config.h) to simplify debugging via JTAG
• enables the system realtime clock via MIOS32_SYS_Time_Init(0)

Parameters:

[in]

mode

currently only mode 0 supported

Returns:

< 0 if initialisation failed

Here is the call graph for this function:

u32 MIOS32_SYS_RAMSizeGet

(

void

)

Returns the (data) RAM size of the core

Returns:

the RAM size in bytes

s32 MIOS32_SYS_Reset

(

void

)

Shutdown MIOS32 and reset the microcontroller:

• disable all RTOS tasks
• print "Bootloader Mode " message if LCD enabled (since MIOS32 will enter this mode after reset)
• wait until all MIDI OUT buffers are empty (TODO)
• disable all interrupts
• turn off all board LEDs
• send all-0 to DOUT chain (TODO)
• send all-0 to MF control chain (if enabled) (TODO)
• reset STM32

Returns:

< 0 if reset failed

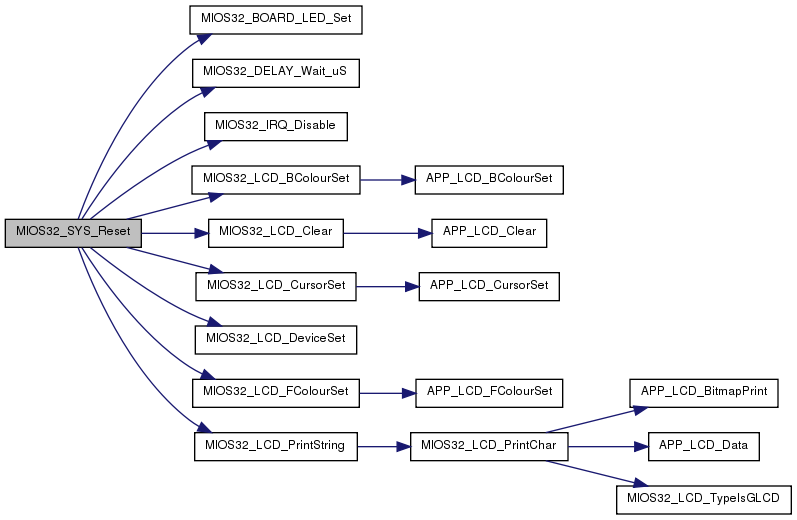

Here is the call graph for this function:

s32 MIOS32_SYS_SerialNumberGet

(

char *

str

)

Returns the serial number as a string

Parameters:

[out]

str

pointer to a string which can store at least 32 digits + zero terminator! (24 digits returned for STM32)

Returns:

< 0 if feature not supported

mios32_sys_time_t MIOS32_SYS_TimeGet

(

void

)

Returns the System Real Time (with mS accuracy)

Following example code converts the returned time into hours, minutes, seconds and milliseconds:

   mios32_sys_time_t t = MIOS32_SYS_TimeGet();
   int hours = t.seconds / 3600;
   int minutes = (t.seconds % 3600) / 60;
   int seconds = (t.seconds % 3600) % 60;
   int milliseconds = t.fraction_ms;

Returns:

the system time in a mios32_sys_time_t structure

Here is the call graph for this function:

s32 MIOS32_SYS_TimeSet

(

mios32_sys_time_t

t

)

Initializes/Resets the System Real Time Clock, so that MIOS32_SYS_Time() can be used for microsecond accurate measurements.

The time can be re-initialized the following way:

   // set System Time to one hour and 30 minutes
   mios32_sys_time_t t = { .seconds=1*3600 + 30*60, .fraction_ms=0 };
   MIOS32_SYS_TimeSet(t);

After system reset it will always start with 0. A battery backup option is not supported by MIOS32

Parameters:

[in]

t

the time in seconds + fraction part (mS) Note that this format isn't completely compatible to the NTP timestamp format, as the fraction has only mS accuracy

Returns:

< 0 if initialisation failed

---

Variable Documentation

u32 mios32_sys_isr_vector

u32 mios32_sys_isr_vector

u32 mios32_sys_isr_vector
