modules/msd/STM32F10x/msd_scsi.h File Reference

#include "stm32f10x.h"

Defines

#define SCSI_FORMAT_UNIT   0x04
#define SCSI_INQUIRY   0x12
#define SCSI_MODE_SELECT6   0x15
#define SCSI_MODE_SELECT10   0x55
#define SCSI_MODE_SENSE6   0x1A
#define SCSI_MODE_SENSE10   0x5A
#define SCSI_ALLOW_MEDIUM_REMOVAL   0x1E
#define SCSI_READ6   0x08
#define SCSI_READ10   0x28
#define SCSI_READ12   0xA8
#define SCSI_READ16   0x88
#define SCSI_READ_CAPACITY10   0x25
#define SCSI_READ_CAPACITY16   0x9E
#define SCSI_REQUEST_SENSE   0x03
#define SCSI_START_STOP_UNIT   0x1B
#define SCSI_TEST_UNIT_READY   0x00
#define SCSI_WRITE6   0x0A
#define SCSI_WRITE10   0x2A
#define SCSI_WRITE12   0xAA
#define SCSI_WRITE16   0x8A
#define SCSI_VERIFY10   0x2F
#define SCSI_VERIFY12   0xAF
#define SCSI_VERIFY16   0x8F
#define SCSI_SEND_DIAGNOSTIC   0x1D
#define SCSI_READ_FORMAT_CAPACITIES   0x23
#define NO_SENSE   0
#define RECOVERED_ERROR   1
#define NOT_READY   2
#define MEDIUM_ERROR   3
#define HARDWARE_ERROR   4
#define ILLEGAL_REQUEST   5
#define UNIT_ATTENTION   6
#define DATA_PROTECT   7
#define BLANK_CHECK   8
#define VENDOR_SPECIFIC   9
#define COPY_ABORTED   10
#define ABORTED_COMMAND   11
#define VOLUME_OVERFLOW   13
#define MISCOMPARE   14
#define INVALID_COMMAND   0x20
#define INVALID_FIELED_IN_COMMAND   0x24
#define PARAMETER_LIST_LENGTH_ERROR   0x1A
#define INVALID_FIELD_IN_PARAMETER_LIST   0x26
#define ADDRESS_OUT_OF_RANGE   0x21
#define MEDIUM_NOT_PRESENT   0x3A
#define MEDIUM_HAVE_CHANGED   0x28
#define READ_FORMAT_CAPACITY_DATA_LEN   0x0C
#define READ_CAPACITY10_DATA_LEN   0x08
#define MODE_SENSE10_DATA_LEN   0x08
#define MODE_SENSE6_DATA_LEN   0x04
#define REQUEST_SENSE_DATA_LEN   0x12
#define STANDARD_INQUIRY_DATA_LEN   0x24
#define BLKVFY   0x04
#define MSD_SCSI_Prevent_Removal_Cmd   MSD_SCSI_Valid_Cmd
#define MSD_SCSI_READ_CAPACITY16_Cmd   MSD_SCSI_Invalid_Cmd
#define MSD_SCSI_Write6_Cmd   MSD_SCSI_Invalid_Cmd
#define MSD_SCSI_Write16_Cmd   MSD_SCSI_Invalid_Cmd
#define MSD_SCSI_Write12_Cmd   MSD_SCSI_Invalid_Cmd
#define MSD_SCSI_Read6_Cmd   MSD_SCSI_Invalid_Cmd
#define MSD_SCSI_Read12_Cmd   MSD_SCSI_Invalid_Cmd
#define MSD_SCSI_Read16_Cmd   MSD_SCSI_Invalid_Cmd
#define MSD_SCSI_Send_Diagnostic_Cmd   MSD_SCSI_Invalid_Cmd
#define MSD_SCSI_Mode_Select6_Cmd   MSD_SCSI_Invalid_Cmd
#define MSD_SCSI_Mode_Select10_Cmd   MSD_SCSI_Invalid_Cmd
#define MSD_SCSI_Verify12_Cmd   MSD_SCSI_Invalid_Cmd
#define MSD_SCSI_Verify16_Cmd   MSD_SCSI_Invalid_Cmd

Functions

void MSD_SCSI_Inquiry_Cmd (uint8_t lun)
void MSD_SCSI_ReadFormatCapacity_Cmd (uint8_t lun)
void MSD_SCSI_ReadCapacity10_Cmd (uint8_t lun)
void MSD_SCSI_RequestSense_Cmd (uint8_t lun)
void MSD_SCSI_Start_Stop_Unit_Cmd (uint8_t lun)
void MSD_SCSI_ModeSense6_Cmd (uint8_t lun)
void MSD_SCSI_ModeSense10_Cmd (uint8_t lun)
void MSD_SCSI_Write10_Cmd (uint8_t lun, uint32_t LBA, uint32_t BlockNbr)
void MSD_SCSI_Read10_Cmd (uint8_t lun, uint32_t LBA, uint32_t BlockNbr)
void MSD_SCSI_Verify10_Cmd (uint8_t lun)
void MSD_SCSI_Invalid_Cmd (uint8_t lun)
void MSD_SCSI_Valid_Cmd (uint8_t lun)
bool MSD_SCSI_Address_Management (uint8_t lun, uint8_t Cmd, uint32_t LBA, uint32_t BlockNbr)
void MSD_Set_Scsi_Sense_Data (uint8_t lun, uint8_t Sens_Key, uint8_t Asc)
void MSD_SCSI_TestUnitReady_Cmd (uint8_t lun)
void MSD_SCSI_Format_Cmd (uint8_t lun)

Variables

uint8_t MSD_Page00_Inquiry_Data []
uint8_t MSD_Standard_Inquiry_Data []
uint8_t MSD_Standard_Inquiry_Data2 []
uint8_t MSD_Mode_Sense6_data []
uint8_t MSD_Mode_Sense10_data []
uint8_t MSD_Scsi_Sense_Data []
uint8_t MSD_ReadCapacity10_Data []
uint8_t MSD_ReadFormatCapacity_Data []

Define Documentation

#define ABORTED_COMMAND   11
#define ADDRESS_OUT_OF_RANGE   0x21
#define BLANK_CHECK   8
#define BLKVFY   0x04
#define COPY_ABORTED   10
#define DATA_PROTECT   7
#define HARDWARE_ERROR   4
#define ILLEGAL_REQUEST   5
#define INVALID_COMMAND   0x20
#define INVALID_FIELD_IN_PARAMETER_LIST   0x26
#define INVALID_FIELED_IN_COMMAND   0x24
#define MEDIUM_ERROR   3
#define MEDIUM_HAVE_CHANGED   0x28
#define MEDIUM_NOT_PRESENT   0x3A
#define MISCOMPARE   14
#define MODE_SENSE10_DATA_LEN   0x08
#define MODE_SENSE6_DATA_LEN   0x04
#define MSD_SCSI_Mode_Select10_Cmd   MSD_SCSI_Invalid_Cmd
#define MSD_SCSI_Mode_Select6_Cmd   MSD_SCSI_Invalid_Cmd
#define MSD_SCSI_Prevent_Removal_Cmd   MSD_SCSI_Valid_Cmd
#define MSD_SCSI_Read12_Cmd   MSD_SCSI_Invalid_Cmd
#define MSD_SCSI_Read16_Cmd   MSD_SCSI_Invalid_Cmd
#define MSD_SCSI_Read6_Cmd   MSD_SCSI_Invalid_Cmd
#define MSD_SCSI_READ_CAPACITY16_Cmd   MSD_SCSI_Invalid_Cmd
#define MSD_SCSI_Send_Diagnostic_Cmd   MSD_SCSI_Invalid_Cmd
#define MSD_SCSI_Verify12_Cmd   MSD_SCSI_Invalid_Cmd
#define MSD_SCSI_Verify16_Cmd   MSD_SCSI_Invalid_Cmd
#define MSD_SCSI_Write12_Cmd   MSD_SCSI_Invalid_Cmd
#define MSD_SCSI_Write16_Cmd   MSD_SCSI_Invalid_Cmd
#define MSD_SCSI_Write6_Cmd   MSD_SCSI_Invalid_Cmd
#define NO_SENSE   0
#define NOT_READY   2
#define PARAMETER_LIST_LENGTH_ERROR   0x1A
#define READ_CAPACITY10_DATA_LEN   0x08
#define READ_FORMAT_CAPACITY_DATA_LEN   0x0C
#define RECOVERED_ERROR   1
#define REQUEST_SENSE_DATA_LEN   0x12
#define SCSI_ALLOW_MEDIUM_REMOVAL   0x1E
#define SCSI_FORMAT_UNIT   0x04
#define SCSI_INQUIRY   0x12
#define SCSI_MODE_SELECT10   0x55
#define SCSI_MODE_SELECT6   0x15
#define SCSI_MODE_SENSE10   0x5A
#define SCSI_MODE_SENSE6   0x1A
#define SCSI_READ10   0x28
#define SCSI_READ12   0xA8
#define SCSI_READ16   0x88
#define SCSI_READ6   0x08
#define SCSI_READ_CAPACITY10   0x25
#define SCSI_READ_CAPACITY16   0x9E
#define SCSI_READ_FORMAT_CAPACITIES   0x23
#define SCSI_REQUEST_SENSE   0x03
#define SCSI_SEND_DIAGNOSTIC   0x1D
#define SCSI_START_STOP_UNIT   0x1B
#define SCSI_TEST_UNIT_READY   0x00
#define SCSI_VERIFY10   0x2F
#define SCSI_VERIFY12   0xAF
#define SCSI_VERIFY16   0x8F
#define SCSI_WRITE10   0x2A
#define SCSI_WRITE12   0xAA
#define SCSI_WRITE16   0x8A
#define SCSI_WRITE6   0x0A
#define STANDARD_INQUIRY_DATA_LEN   0x24
#define UNIT_ATTENTION   6
#define VENDOR_SPECIFIC   9
#define VOLUME_OVERFLOW   13

Function Documentation

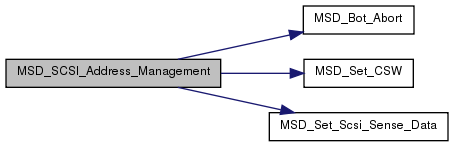

bool MSD_SCSI_Address_Management ( uint8_t  lun,
uint8_t  Cmd,
uint32_t  LBA,
uint32_t  BlockNbr
)

Here is the call graph for this function:

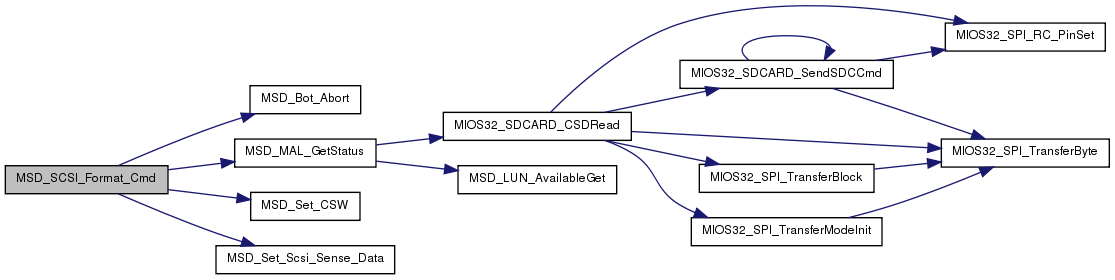

void MSD_SCSI_Format_Cmd ( uint8_t  lun  )

Here is the call graph for this function:

void MSD_SCSI_Inquiry_Cmd ( uint8_t  lun  )

Here is the call graph for this function:

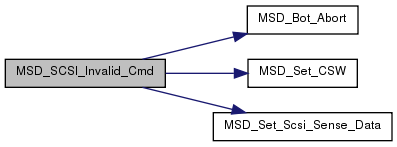

void MSD_SCSI_Invalid_Cmd ( uint8_t  lun  )

Here is the call graph for this function:

void MSD_SCSI_ModeSense10_Cmd ( uint8_t  lun  )

Here is the call graph for this function:

void MSD_SCSI_ModeSense6_Cmd ( uint8_t  lun  )

Here is the call graph for this function:

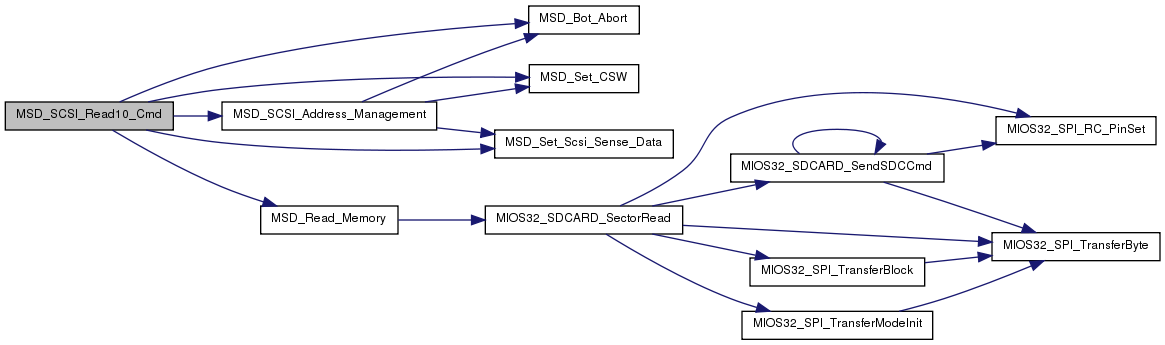

void MSD_SCSI_Read10_Cmd ( uint8_t  lun,
uint32_t  LBA,
uint32_t  BlockNbr
)

Here is the call graph for this function:

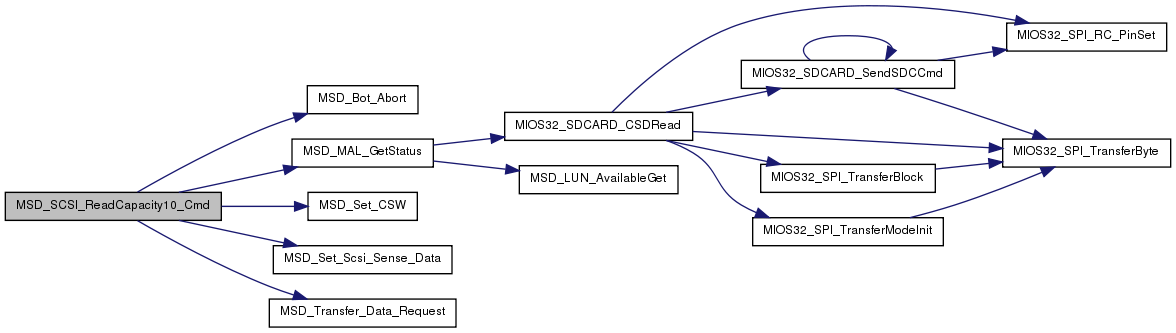

void MSD_SCSI_ReadCapacity10_Cmd ( uint8_t  lun  )

Here is the call graph for this function:

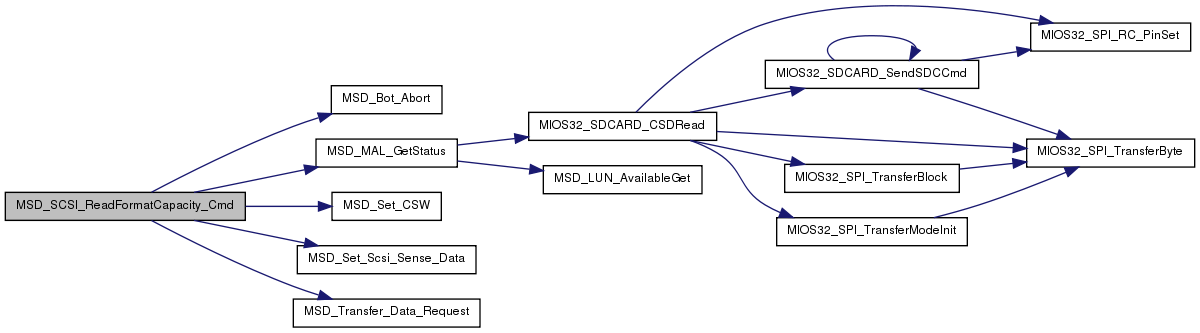

void MSD_SCSI_ReadFormatCapacity_Cmd ( uint8_t  lun  )

Here is the call graph for this function:

void MSD_SCSI_RequestSense_Cmd ( uint8_t  lun  )

Here is the call graph for this function:

void MSD_SCSI_Start_Stop_Unit_Cmd ( uint8_t  lun  )

Here is the call graph for this function:

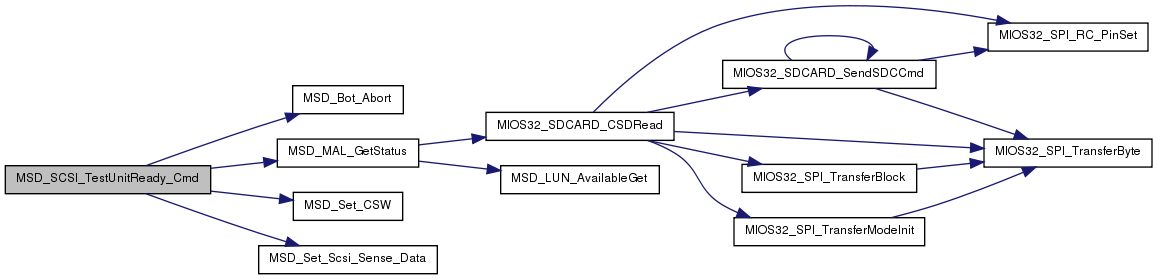

void MSD_SCSI_TestUnitReady_Cmd ( uint8_t  lun  )

Here is the call graph for this function:

void MSD_SCSI_Valid_Cmd ( uint8_t  lun  )

Here is the call graph for this function:

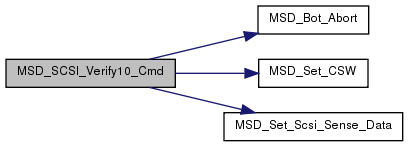

void MSD_SCSI_Verify10_Cmd ( uint8_t  lun  )

Here is the call graph for this function:

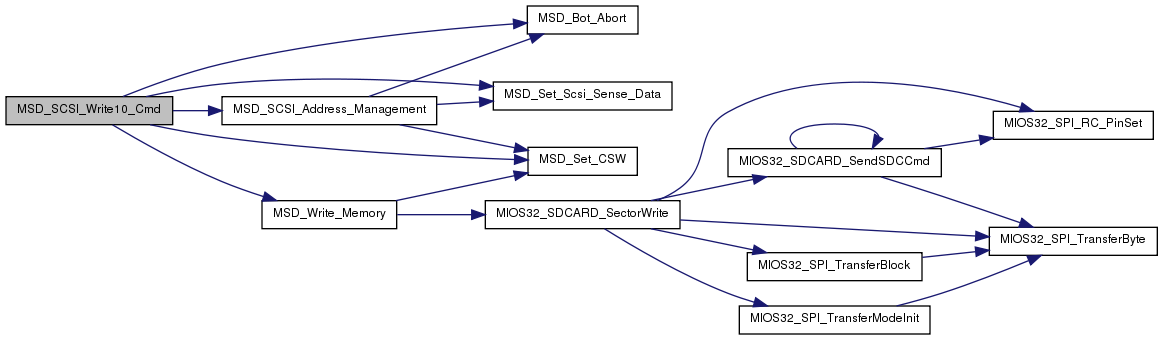

void MSD_SCSI_Write10_Cmd ( uint8_t  lun,
uint32_t  LBA,
uint32_t  BlockNbr
)

Here is the call graph for this function:

void MSD_Set_Scsi_Sense_Data ( uint8_t  lun,
uint8_t  Sens_Key,
uint8_t  Asc
)

Variable Documentation
