modules/sid/sid.h File Reference

Data Structures
union	sid_voice_t
union	sid_regs_t
Defines
#define	SID_NUM   2
#define	SID_REGS_NUM   32
#define	SID_SCLK_PORT   GPIOB
#define	SID_SCLK_PIN   GPIO_Pin_6
#define	SID_RCLK_PORT   GPIOC
#define	SID_RCLK_PIN   GPIO_Pin_13
#define	SID_SER_PORT   GPIOB
#define	SID_SER_PIN   GPIO_Pin_5
#define	SID_CLK_PORT   GPIOB
#define	SID_CLK_PIN   GPIO_Pin_7
#define	SID_CSN0_PORT   GPIOC
#define	SID_CSN0_PIN   GPIO_Pin_14
#define	SID_CSN1_PORT   GPIOC
#define	SID_CSN1_PIN   GPIO_Pin_0
#define	SID_CSN2_PORT   GPIOC
#define	SID_CSN2_PIN   GPIO_Pin_1
#define	SID_CSN3_PORT   GPIOC
#define	SID_CSN3_PIN   GPIO_Pin_2
#define	SID_CSN4_PORT   GPIOC
#define	SID_CSN4_PIN   GPIO_Pin_3
#define	SID_CSN5_PORT   GPIOA
#define	SID_CSN5_PIN   GPIO_Pin_0
#define	SID_CSN6_PORT   GPIOA
#define	SID_CSN6_PIN   GPIO_Pin_1
#define	SID_CSN7_PORT   GPIOA
#define	SID_CSN7_PIN   GPIO_Pin_2
#define	SID_USE_MBNET   0
Functions
s32	SID_Init (u32 mode)
s32	SID_AvailableSet (u8 available)
u8	SID_AvailableGet (void)
s32	SID_Update (u32 mode)
s32	SID_PrintStatistics (void)
Variables
sid_regs_t	sid_regs [SID_NUM]

---

Define Documentation

#define SID_CLK_PIN   GPIO_Pin_7

#define SID_CLK_PORT   GPIOB

#define SID_CSN0_PIN   GPIO_Pin_14

#define SID_CSN0_PORT   GPIOC

#define SID_CSN1_PIN   GPIO_Pin_0

#define SID_CSN1_PORT   GPIOC

#define SID_CSN2_PIN   GPIO_Pin_1

#define SID_CSN2_PORT   GPIOC

#define SID_CSN3_PIN   GPIO_Pin_2

#define SID_CSN3_PORT   GPIOC

#define SID_CSN4_PIN   GPIO_Pin_3

#define SID_CSN4_PORT   GPIOC

#define SID_CSN5_PIN   GPIO_Pin_0

#define SID_CSN5_PORT   GPIOA

#define SID_CSN6_PIN   GPIO_Pin_1

#define SID_CSN6_PORT   GPIOA

#define SID_CSN7_PIN   GPIO_Pin_2

#define SID_CSN7_PORT   GPIOA

#define SID_NUM   2

#define SID_RCLK_PIN   GPIO_Pin_13

#define SID_RCLK_PORT   GPIOC

#define SID_REGS_NUM   32

#define SID_SCLK_PIN   GPIO_Pin_6

#define SID_SCLK_PORT   GPIOB

#define SID_SER_PIN   GPIO_Pin_5

#define SID_SER_PORT   GPIOB

#define SID_USE_MBNET   0

---

Function Documentation

u8 SID_AvailableGet

(

void

)

s32 SID_AvailableSet

(

u8

available

)

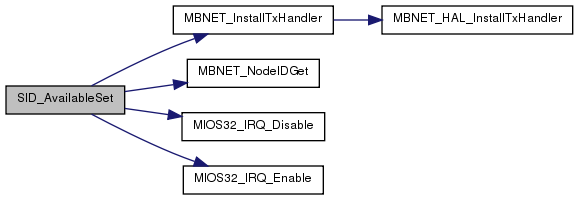

Here is the call graph for this function:

s32 SID_Init

(

u32

mode

)

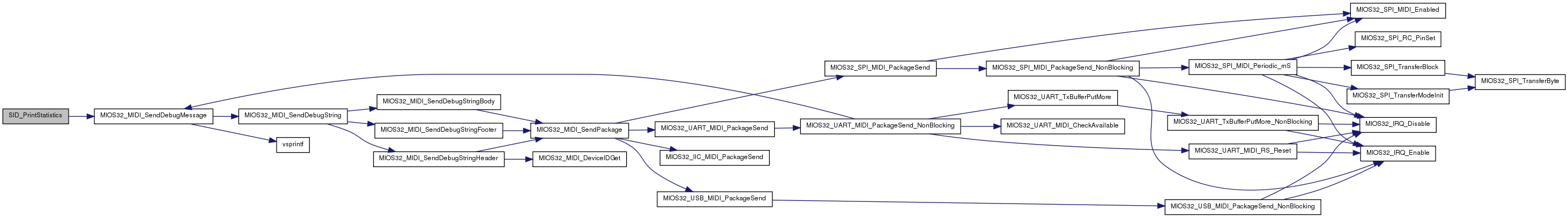

Here is the call graph for this function:

s32 SID_PrintStatistics

(

void

)

Here is the call graph for this function:

s32 SID_Update

(

u32

mode

)

---

Variable Documentation

sid_regs_t sid_regs[SID_NUM]
