modules/app_lcd/st7637/app_lcd.c File Reference

#include <mios32.h>
#include <glcd_font.h>
#include "app_lcd.h"
#include "app_lcd_st7637.h"

Defines

#define APP_LCD_D_PINS   (GPIO_Pin_0|GPIO_Pin_1|GPIO_Pin_2|GPIO_Pin_3|GPIO_Pin_4|GPIO_Pin_5|GPIO_Pin_6|GPIO_Pin_7)
#define APP_LCD_D_PORT   GPIOC
#define APP_LCD_BL_PORT   GPIOB
#define APP_LCD_BL_PIN   GPIO_Pin_7
#define APP_LCD_RS_PORT   GPIOC
#define APP_LCD_RS_PIN   GPIO_Pin_8
#define APP_LCD_RD_PORT   GPIOC
#define APP_LCD_RD_PIN   GPIO_Pin_9
#define APP_LCD_WR_PORT   GPIOC
#define APP_LCD_WR_PIN   GPIO_Pin_10
#define APP_LCD_CS_PORT   GPIOC
#define APP_LCD_CS_PIN   GPIO_Pin_11
#define APP_LCD_RST_PORT   GPIOC
#define APP_LCD_RST_PIN   GPIO_Pin_12
#define PIN_BL(b)   { APP_LCD_BL_PORT->BSRR = (b) ? APP_LCD_BL_PIN : (APP_LCD_BL_PIN << 16); }
#define PIN_RS(b)   { APP_LCD_RS_PORT->BSRR = (b) ? APP_LCD_RS_PIN : (APP_LCD_RS_PIN << 16); }
#define PIN_RD(b)   { APP_LCD_RD_PORT->BSRR = (b) ? APP_LCD_RD_PIN : (APP_LCD_RD_PIN << 16); }
#define PIN_WR(b)   { APP_LCD_WR_PORT->BSRR = (b) ? APP_LCD_WR_PIN : (APP_LCD_WR_PIN << 16); }
#define PIN_CS(b)   { APP_LCD_CS_PORT->BSRR = (b) ? APP_LCD_CS_PIN : (APP_LCD_CS_PIN << 16); }
#define PIN_RST(b)   { APP_LCD_RST_PORT->BSRR = (b) ? APP_LCD_RST_PIN : (APP_LCD_RST_PIN << 16); }

Functions

s32 APP_LCD_Init (u32 mode)
s32 APP_LCD_Data (u8 data)
s32 APP_LCD_Cmd (u8 cmd)
s32 APP_LCD_Clear (void)
s32 APP_LCD_CursorSet (u16 column, u16 line)
s32 APP_LCD_GCursorSet (u16 x, u16 y)
s32 APP_LCD_SpecialCharInit (u8 num, u8 table[8])
s32 APP_LCD_BColourSet (u32 rgb)
s32 APP_LCD_FColourSet (u32 rgb)
s32 APP_LCD_BitmapPixelSet (mios32_lcd_bitmap_t bitmap, u16 x, u16 y, u32 colour)
s32 APP_LCD_BitmapPrint (mios32_lcd_bitmap_t bitmap)

Define Documentation

#define APP_LCD_BL_PIN   GPIO_Pin_7
#define APP_LCD_BL_PORT   GPIOB
#define APP_LCD_CS_PIN   GPIO_Pin_11
#define APP_LCD_CS_PORT   GPIOC
#define APP_LCD_D_PINS   (GPIO_Pin_0|GPIO_Pin_1|GPIO_Pin_2|GPIO_Pin_3|GPIO_Pin_4|GPIO_Pin_5|GPIO_Pin_6|GPIO_Pin_7)
#define APP_LCD_D_PORT   GPIOC
#define APP_LCD_RD_PIN   GPIO_Pin_9
#define APP_LCD_RD_PORT   GPIOC
#define APP_LCD_RS_PIN   GPIO_Pin_8
#define APP_LCD_RS_PORT   GPIOC
#define APP_LCD_RST_PIN   GPIO_Pin_12
#define APP_LCD_RST_PORT   GPIOC
#define APP_LCD_WR_PIN   GPIO_Pin_10
#define APP_LCD_WR_PORT   GPIOC
#define PIN_BL (  )     { APP_LCD_BL_PORT->BSRR = (b) ? APP_LCD_BL_PIN : (APP_LCD_BL_PIN << 16); }
#define PIN_CS (  )     { APP_LCD_CS_PORT->BSRR = (b) ? APP_LCD_CS_PIN : (APP_LCD_CS_PIN << 16); }
#define PIN_RD (  )     { APP_LCD_RD_PORT->BSRR = (b) ? APP_LCD_RD_PIN : (APP_LCD_RD_PIN << 16); }
#define PIN_RS (  )     { APP_LCD_RS_PORT->BSRR = (b) ? APP_LCD_RS_PIN : (APP_LCD_RS_PIN << 16); }
#define PIN_RST (  )     { APP_LCD_RST_PORT->BSRR = (b) ? APP_LCD_RST_PIN : (APP_LCD_RST_PIN << 16); }
#define PIN_WR (  )     { APP_LCD_WR_PORT->BSRR = (b) ? APP_LCD_WR_PIN : (APP_LCD_WR_PIN << 16); }

Function Documentation

s32 APP_LCD_BColourSet ( u32  rgb  )
s32 APP_LCD_BitmapPixelSet ( mios32_lcd_bitmap_t  bitmap,
u16  x,
u16  y,
u32  colour
)
s32 APP_LCD_BitmapPrint ( mios32_lcd_bitmap_t  bitmap  )

Here is the call graph for this function:

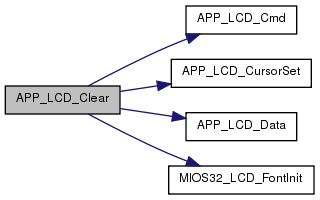

s32 APP_LCD_Clear ( void   )

Here is the call graph for this function:

s32 APP_LCD_Cmd ( u8  cmd  )
s32 APP_LCD_CursorSet ( u16  column,
u16  line
)
s32 APP_LCD_Data ( u8  data  )
s32 APP_LCD_FColourSet ( u32  rgb  )
s32 APP_LCD_GCursorSet ( u16  x,
u16  y
)

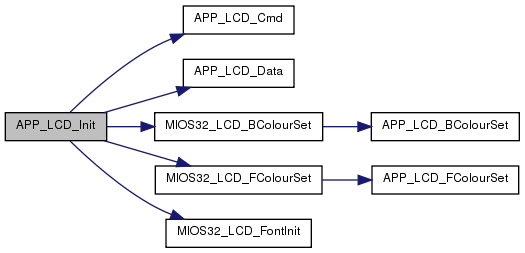

s32 APP_LCD_Init ( u32  mode  )

Here is the call graph for this function:

s32 APP_LCD_SpecialCharInit ( u8  num,
u8  table[8]
)
