mf_state_t Union Reference
[MIOS32_MF]

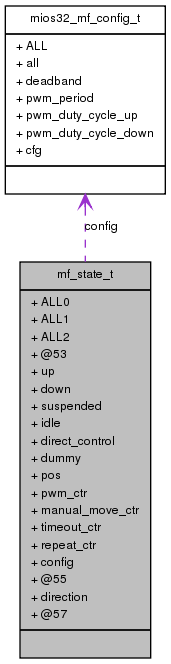

Collaboration diagram for mf_state_t:[legend]

Data Fields
struct {
unsigned   ALL0:32
unsigned   ALL1:32
unsigned   ALL2:32
};
struct {
unsigned   up:1
unsigned   down:1
unsigned   suspended:1
unsigned   idle:1
unsigned   direct_control:1
unsigned   dummy:3+8
u16   pos
u8   pwm_ctr
u8   manual_move_ctr
u8   timeout_ctr
u8   repeat_ctr
mios32_mf_config_t   config
};
struct {
mios32_mf_direction_t   direction
};

---

Field Documentation

struct { ... }

struct { ... }

struct { ... }

unsigned mf_state_t::ALL0

unsigned mf_state_t::ALL1

unsigned mf_state_t::ALL2

mios32_mf_config_t mf_state_t::config

unsigned mf_state_t::direct_control

mios32_mf_direction_t mf_state_t::direction

unsigned mf_state_t::down

unsigned mf_state_t::dummy

unsigned mf_state_t::idle

u8 mf_state_t::manual_move_ctr

u16 mf_state_t::pos

u8 mf_state_t::pwm_ctr

u8 mf_state_t::repeat_ctr

unsigned mf_state_t::suspended

u8 mf_state_t::timeout_ctr

unsigned mf_state_t::up

---

The documentation for this union was generated from the following file:

• mios32/common/mios32_mf.c

---
