MBNG_FILE

Defines
#define	DEBUG_VERBOSE_LEVEL   1
Functions
s32	MBNG_FILE_Init (u32 mode)
s32	MBNG_FILE_LoadAllFiles (u8 including_hw)
s32	MBNG_FILE_UnloadAllFiles (void)
s32	MBNG_FILE_CreateDefaultFiles (void)
s32	MBNG_FILE_StatusMsgSet (char *msg)
char *	MBNG_FILE_StatusMsgGet (void)

---

Detailed Description

File access functions for MIDIbox NG

NOTE: before accessing the SD Card, the upper level function should synchronize with the SD Card semaphore! MUTEX_SDCARD_TAKE; // to take the semaphore MUTEX_SDCARD_GIVE; // to release the semaphore

---

Define Documentation

#define DEBUG_VERBOSE_LEVEL   1

Include files for optional debugging messages via DEBUG_MSG (defined in mios32_config.h)

---

Function Documentation

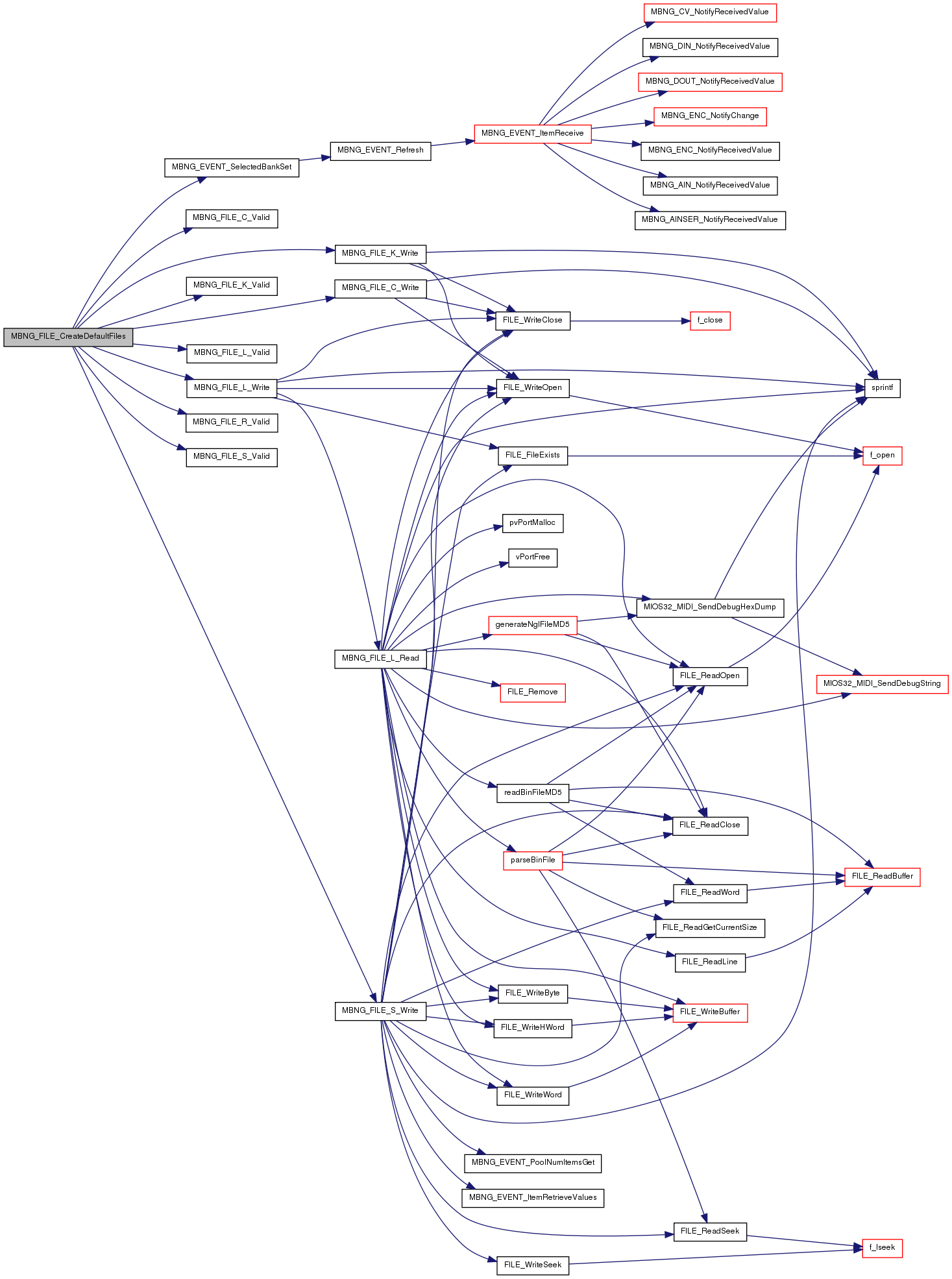

s32 MBNG_FILE_CreateDefaultFiles

(

void

)

creates the default files if they don't exist on SD Card

Here is the call graph for this function:

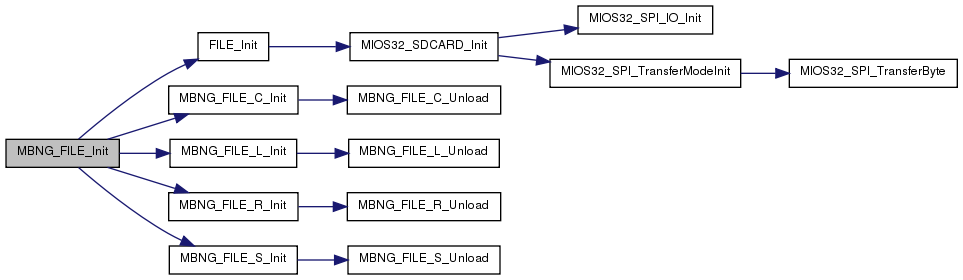

s32 MBNG_FILE_Init

(

u32

mode

)

Initialisation

Here is the call graph for this function:

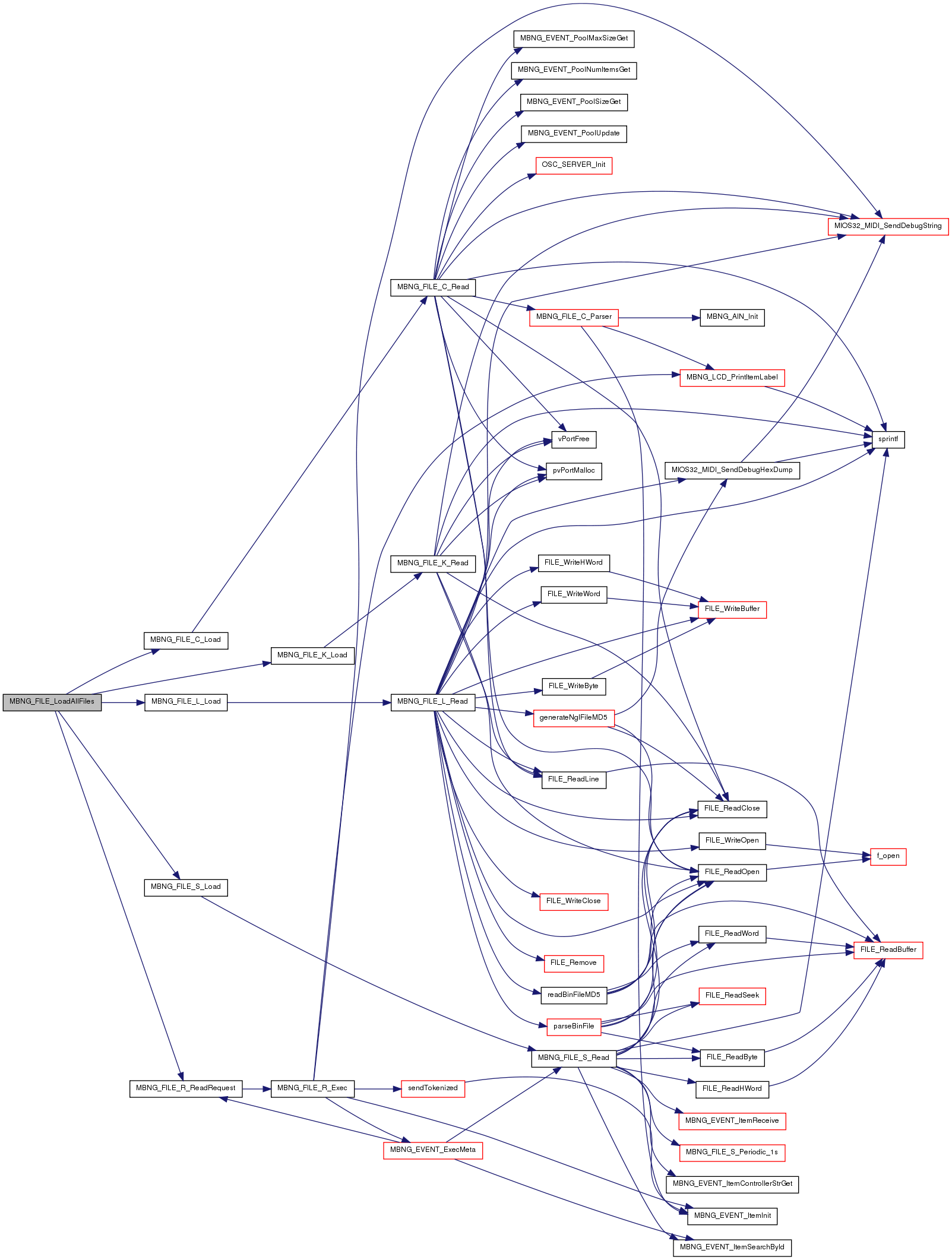

s32 MBNG_FILE_LoadAllFiles

(

u8

including_hw

)

Loads all files

Here is the call graph for this function:

char* MBNG_FILE_StatusMsgGet

(

void

)

Returns:

the current SD Card status if NULL: ok, no special status, print filename

s32 MBNG_FILE_StatusMsgSet

(

char *

msg

)

sets the SD Card status 12 characters max. if msg == NULL: ok, no special status, print filename

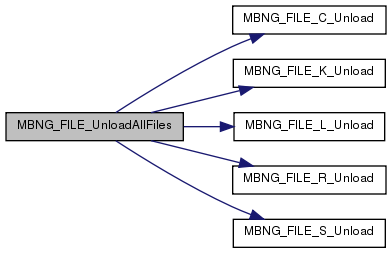

s32 MBNG_FILE_UnloadAllFiles

(

void

)

invalidate all file infos

Here is the call graph for this function:
