MBNG_FILE_C

Data Structures
struct	mbng_file_c_info_t
Defines
#define	DEBUG_VERBOSE_LEVEL   1
#define	MBNG_FILES_PATH   "/"
Functions
s32	MBNG_FILE_C_Init (u32 mode)
s32	MBNG_FILE_C_Load (char *filename)
s32	MBNG_FILE_C_Unload (void)
s32	MBNG_FILE_C_Valid (void)
s32	parseEvent (u32 line, char *cmd, char *brkt)
s32	parseMap (u32 line, char *cmd, char *brkt)
s32	parseSysExVar (u32 line, char *cmd, char *brkt)
s32	parseEnc (u32 line, char *cmd, char *brkt)
s32	parseDinMatrix (u32 line, char *cmd, char *brkt)
s32	parseDoutMatrix (u32 line, char *cmd, char *brkt)
s32	parseKeyboard (u32 line, char *cmd, char *brkt)
s32	parseLedMatrixPattern (u32 line, char *cmd, char *brkt)
s32	parseLcMeterPattern (u32 line, char *cmd, char *brkt)
s32	parseAin (u32 line, char *cmd, char *brkt)
s32	parseAinSer (u32 line, char *cmd, char *brkt)
s32	parseMf (u32 line, char *cmd, char *brkt)
s32	parseAout (u32 line, char *cmd, char *brkt)
s32	parseDio (u32 line, char *cmd, char *brkt)
s32	parseScs (u32 line, char *cmd, char *brkt)
s32	parseSrio (u32 line, char *cmd, char *brkt)
s32	parseRouter (u32 line, char *cmd, char *brkt)
s32	parseEth (u32 line, char *cmd, char *brkt)
s32	parseOsc (u32 line, char *cmd, char *brkt)
s32	MBNG_FILE_C_Parser (u32 line, char *line_buffer, u8 *got_first_event_item)
s32	MBNG_FILE_C_Read (char *filename)
s32	MBNG_FILE_C_Write (char *filename)
s32	MBNG_FILE_C_Debug (void)
Variables
char	mbng_file_c_config_name [MBNG_FILE_C_FILENAME_LEN+1]

---

Detailed Description

Config File access functions

NOTE: before accessing the SD Card, the upper level function should synchronize with the SD Card semaphore! MUTEX_SDCARD_TAKE; // to take the semaphore MUTEX_SDCARD_GIVE; // to release the semaphore

---

Define Documentation

#define DEBUG_VERBOSE_LEVEL   1

Include files for optional debugging messages via DEBUG_MSG (defined in mios32_config.h)

#define MBNG_FILES_PATH   "/"

Local definitions

---

Function Documentation

s32 MBNG_FILE_C_Debug

(

void

)

sends config data to debug terminal

Returns:

< 0 on errors

s32 MBNG_FILE_C_Init

(

u32

mode

)

Initialisation

Here is the call graph for this function:

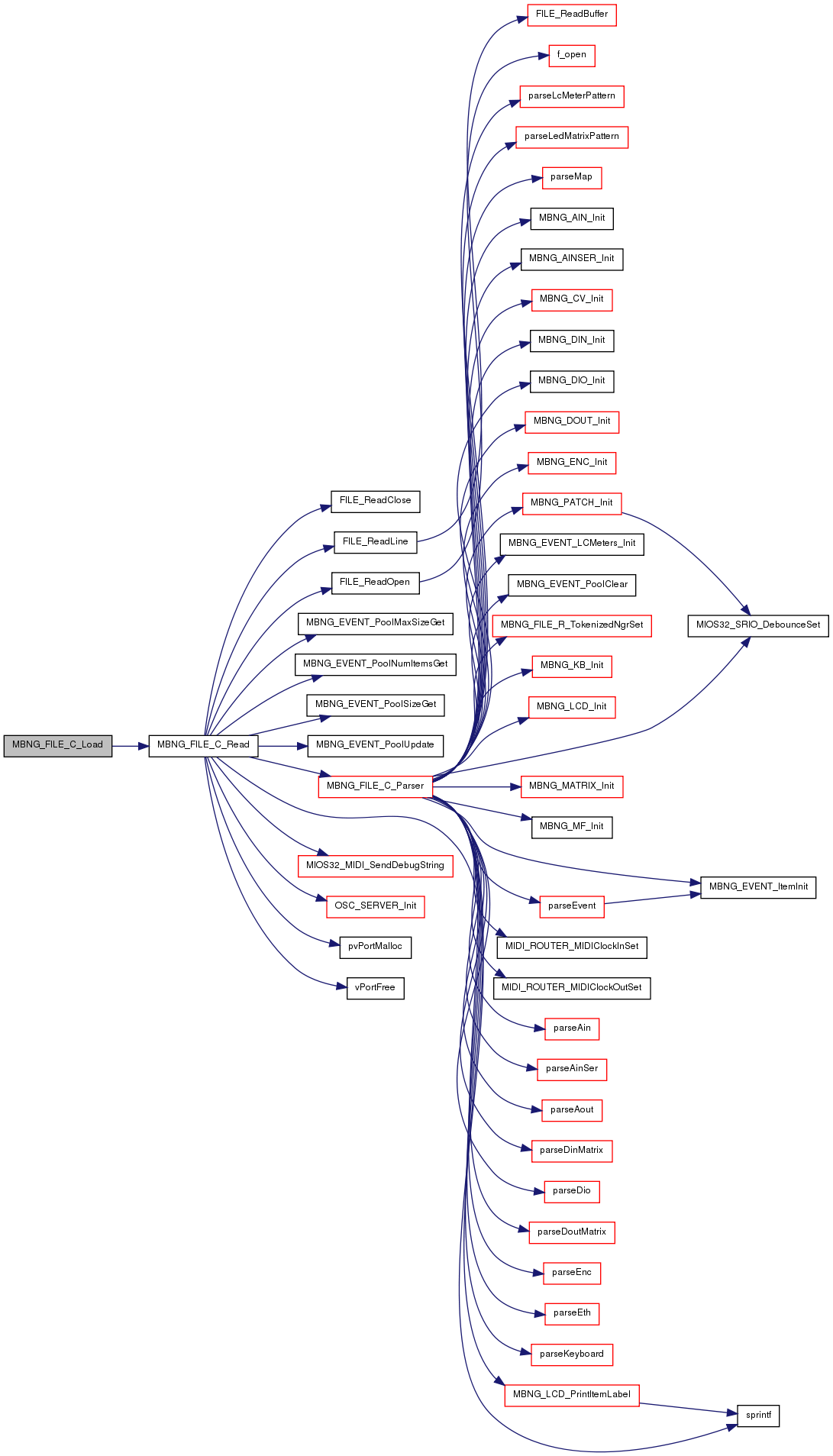

s32 MBNG_FILE_C_Load

(

char *

filename

)

Loads patch file Called from MBNG_FILE_CheckSDCard() when the SD card has been connected

Returns:

< 0 on errors

Here is the call graph for this function:

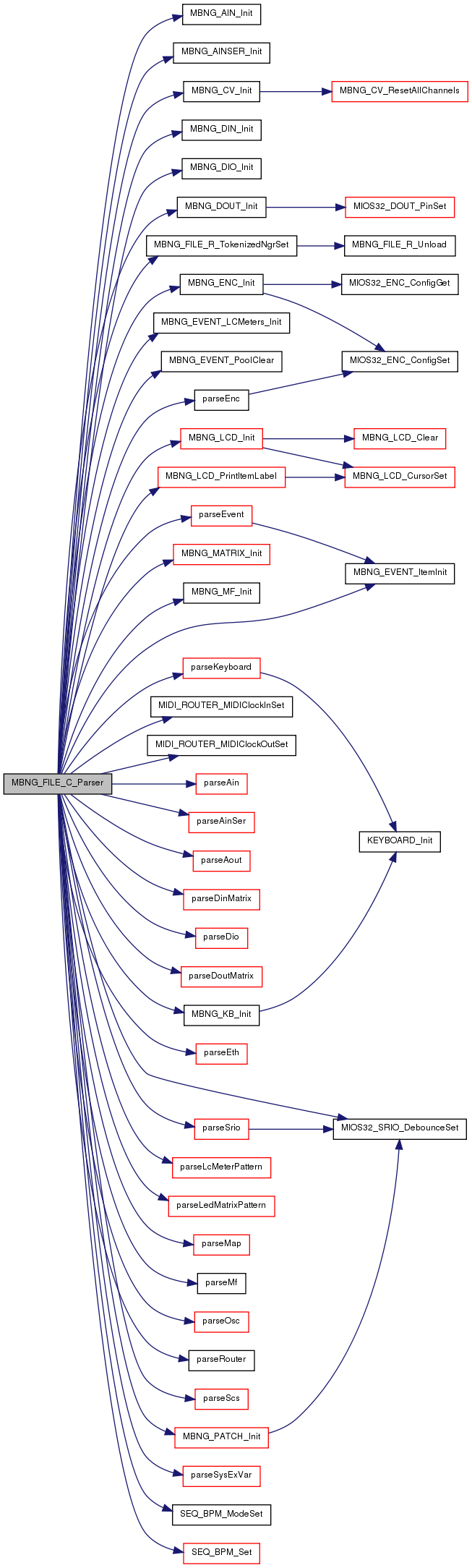

s32 MBNG_FILE_C_Parser	(	u32	line,
		char *	line_buffer,
		u8 *	got_first_event_item
	)

Parses a .NGC command line

Returns:

< 0 on errors (error codes are documented in mbng_file.h)

Here is the call graph for this function:

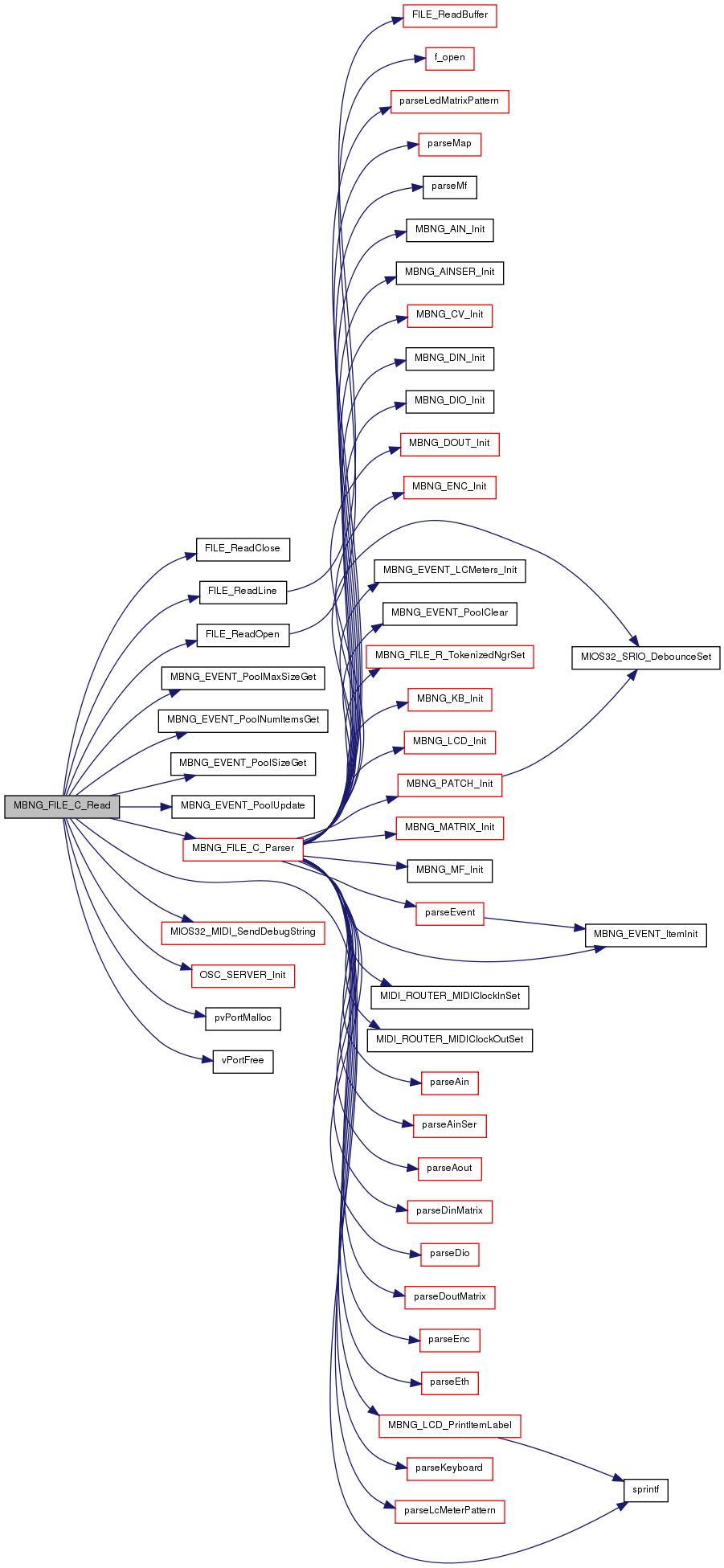

s32 MBNG_FILE_C_Read

(

char *

filename

)

reads the config file content (again)

Returns:

< 0 on errors (error codes are documented in mbng_file.h)

Here is the call graph for this function:

s32 MBNG_FILE_C_Unload

(

void

)

Unloads patch file Called from MBNG_FILE_CheckSDCard() when the SD card has been disconnected

Returns:

< 0 on errors

s32 MBNG_FILE_C_Valid

(

void

)

1 if current patch file valid 0 if current patch file not valid

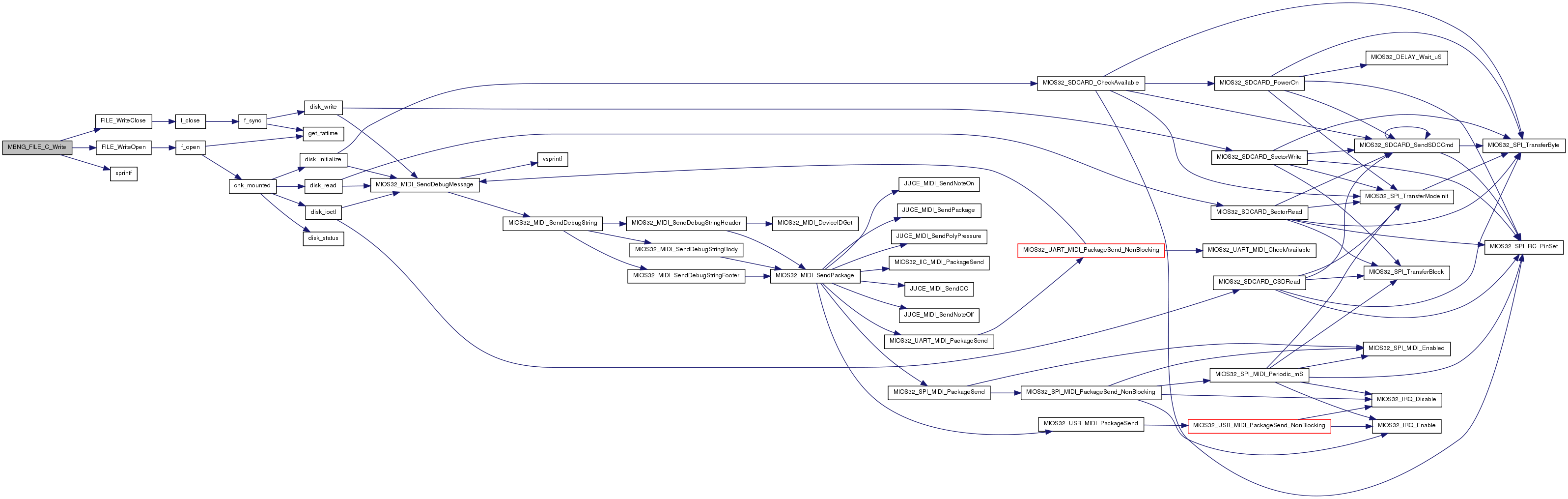

s32 MBNG_FILE_C_Write

(

char *

filename

)

writes data into config file

Returns:

< 0 on errors (error codes are documented in seq_file.h)

Here is the call graph for this function:

s32 parseAin	(	u32	line,
		char *	cmd,
		char *	brkt
	)

help function which parses AIN definitions

Returns:

>= 0 if command is valid

<0 if command is invalid

Here is the call graph for this function:

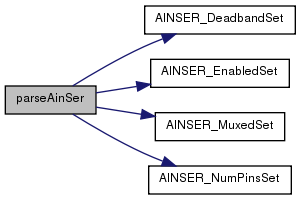

s32 parseAinSer	(	u32	line,
		char *	cmd,
		char *	brkt
	)

Here is the call graph for this function:

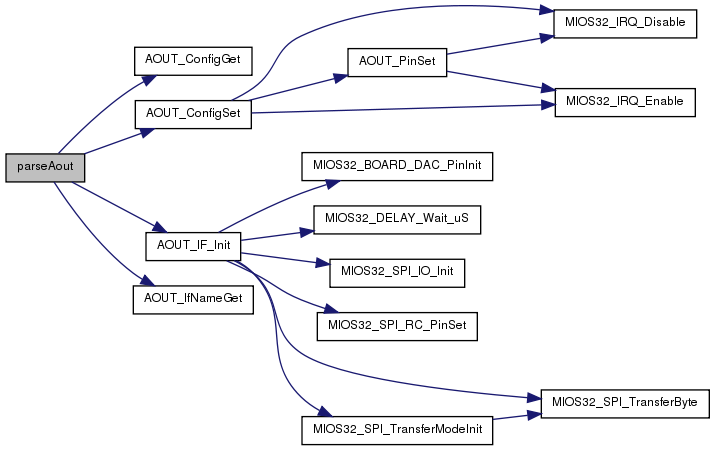

s32 parseAout	(	u32	line,
		char *	cmd,
		char *	brkt
	)

help function which parses AOUT definitions

Returns:

>= 0 if command is valid

<0 if command is invalid

Here is the call graph for this function:

s32 parseDinMatrix	(	u32	line,
		char *	cmd,
		char *	brkt
	)

help function which parses DIN_MATRIX definitions

Returns:

>= 0 if command is valid

<0 if command is invalid

Here is the call graph for this function:

s32 parseDio	(	u32	line,
		char *	cmd,
		char *	brkt
	)

Here is the call graph for this function:

s32 parseDoutMatrix	(	u32	line,
		char *	cmd,
		char *	brkt
	)

help function which parses DOUT_MATRIX definitions

Returns:

>= 0 if command is valid

<0 if command is invalid

Here is the call graph for this function:

s32 parseEnc	(	u32	line,
		char *	cmd,
		char *	brkt
	)

help function which parses ENC definitions

Returns:

>= 0 if command is valid

<0 if command is invalid

Here is the call graph for this function:

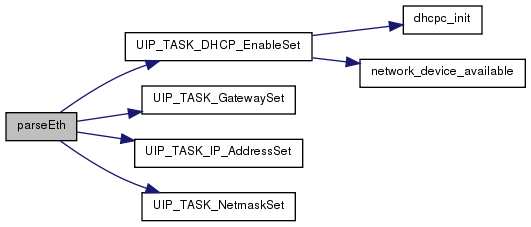

s32 parseEth	(	u32	line,
		char *	cmd,
		char *	brkt
	)

function which parses ETH definitions

Returns:

>= 0 if command is valid

<0 if command is invalid

Here is the call graph for this function:

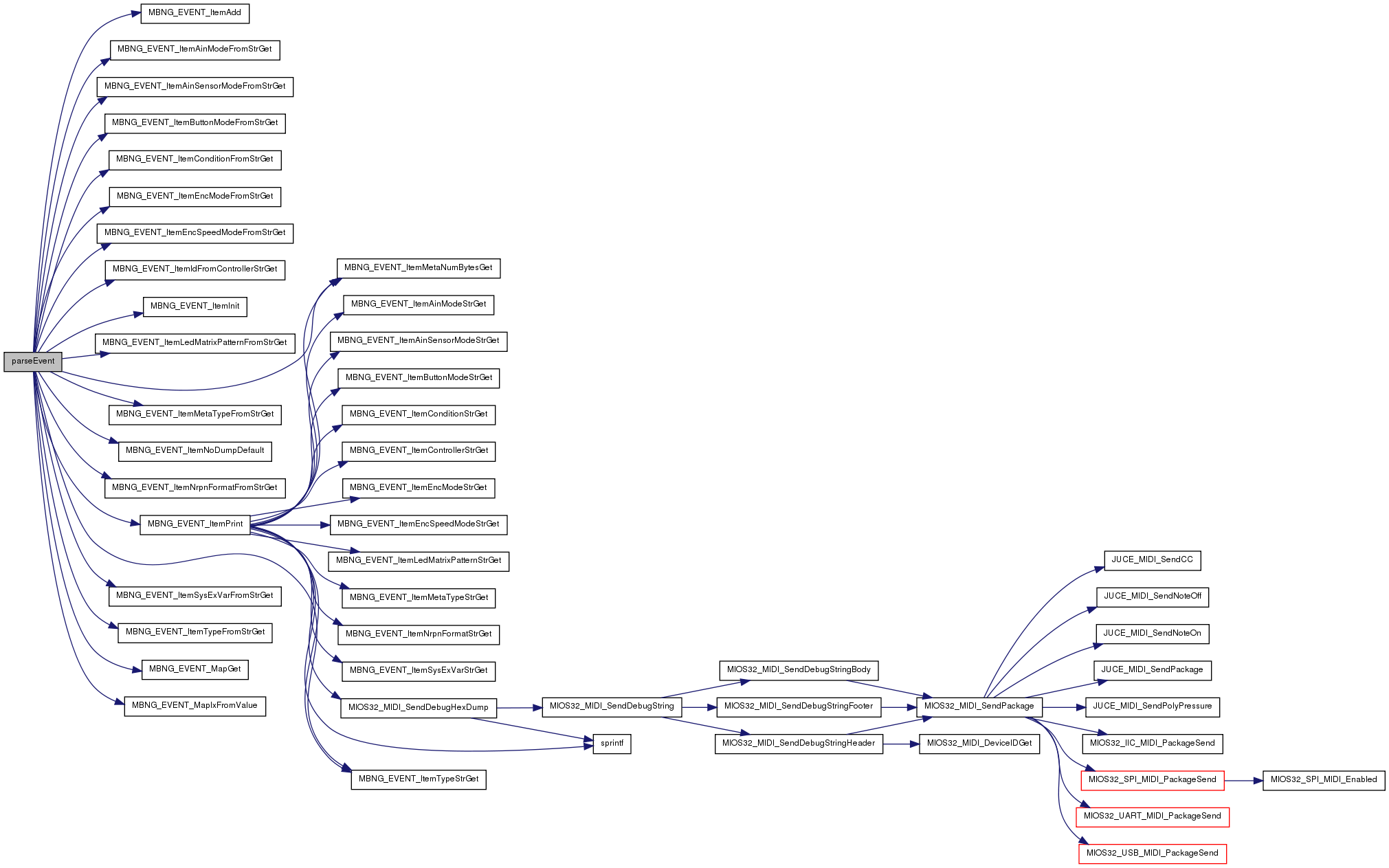

s32 parseEvent	(	u32	line,
		char *	cmd,
		char *	brkt
	)

help function which parses a EVENT command and adds it to the pool

Returns:

>= 0 if command is valid

<0 if command is invalid

Here is the call graph for this function:

s32 parseKeyboard	(	u32	line,
		char *	cmd,
		char *	brkt
	)

help function which parses KEYBOARD definitions

Returns:

>= 0 if command is valid

<0 if command is invalid

Here is the call graph for this function:

s32 parseLcMeterPattern	(	u32	line,
		char *	cmd,
		char *	brkt
	)

help function which parses LC_METER_PATTERN definitions

Returns:

>= 0 if command is valid

<0 if command is invalid

Here is the call graph for this function:

s32 parseLedMatrixPattern	(	u32	line,
		char *	cmd,
		char *	brkt
	)

help function which parses LED_MATRIX_PATTERN definitions

Returns:

>= 0 if command is valid

<0 if command is invalid

Here is the call graph for this function:

s32 parseMap	(	u32	line,
		char *	cmd,
		char *	brkt
	)

Here is the call graph for this function:

s32 parseMf	(	u32	line,
		char *	cmd,
		char *	brkt
	)

help function which parses MF definitions

Returns:

>= 0 if command is valid

<0 if command is invalid

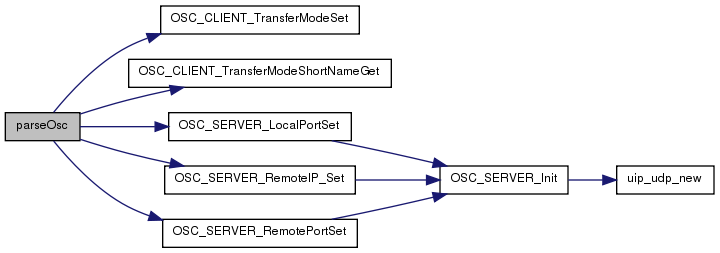

s32 parseOsc	(	u32	line,
		char *	cmd,
		char *	brkt
	)

help function which parses OSC definitions

Returns:

>= 0 if command is valid

<0 if command is invalid

Here is the call graph for this function:

s32 parseRouter	(	u32	line,
		char *	cmd,
		char *	brkt
	)

help function which parses ROUTER definitions

Returns:

>= 0 if command is valid

<0 if command is invalid

s32 parseScs	(	u32	line,
		char *	cmd,
		char *	brkt
	)

help function which parses SCS definitions

Returns:

>= 0 if command is valid

<0 if command is invalid

Here is the call graph for this function:

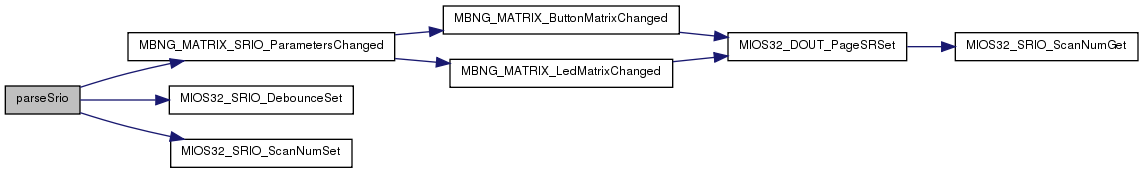

s32 parseSrio	(	u32	line,
		char *	cmd,
		char *	brkt
	)

Here is the call graph for this function:

s32 parseSysExVar	(	u32	line,
		char *	cmd,
		char *	brkt
	)

Here is the call graph for this function:

---

Variable Documentation

char mbng_file_c_config_name[MBNG_FILE_C_FILENAME_LEN+1]

Global variables
