mbng_patch_matrix_din_entry_t Struct Reference

#include <mbng_patch.h>

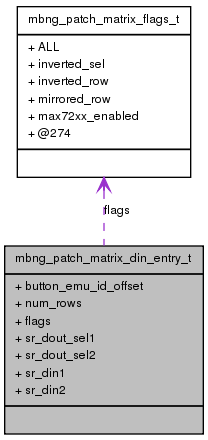

Collaboration diagram for mbng_patch_matrix_din_entry_t:

[legend]

Data Fields
u16	button_emu_id_offset
u8	num_rows
mbng_patch_matrix_flags_t	flags
u8	sr_dout_sel1
u8	sr_dout_sel2
u8	sr_din1
u8	sr_din2

---

Field Documentation

u16 mbng_patch_matrix_din_entry_t::button_emu_id_offset

mbng_patch_matrix_flags_t mbng_patch_matrix_din_entry_t::flags

u8 mbng_patch_matrix_din_entry_t::num_rows

u8 mbng_patch_matrix_din_entry_t::sr_din1

u8 mbng_patch_matrix_din_entry_t::sr_din2

u8 mbng_patch_matrix_din_entry_t::sr_dout_sel1

u8 mbng_patch_matrix_din_entry_t::sr_dout_sel2

---

The documentation for this struct was generated from the following file:

• midibox_ng_v1/src/mbng_patch.h
