Display driver module

32 SPI-driven displays

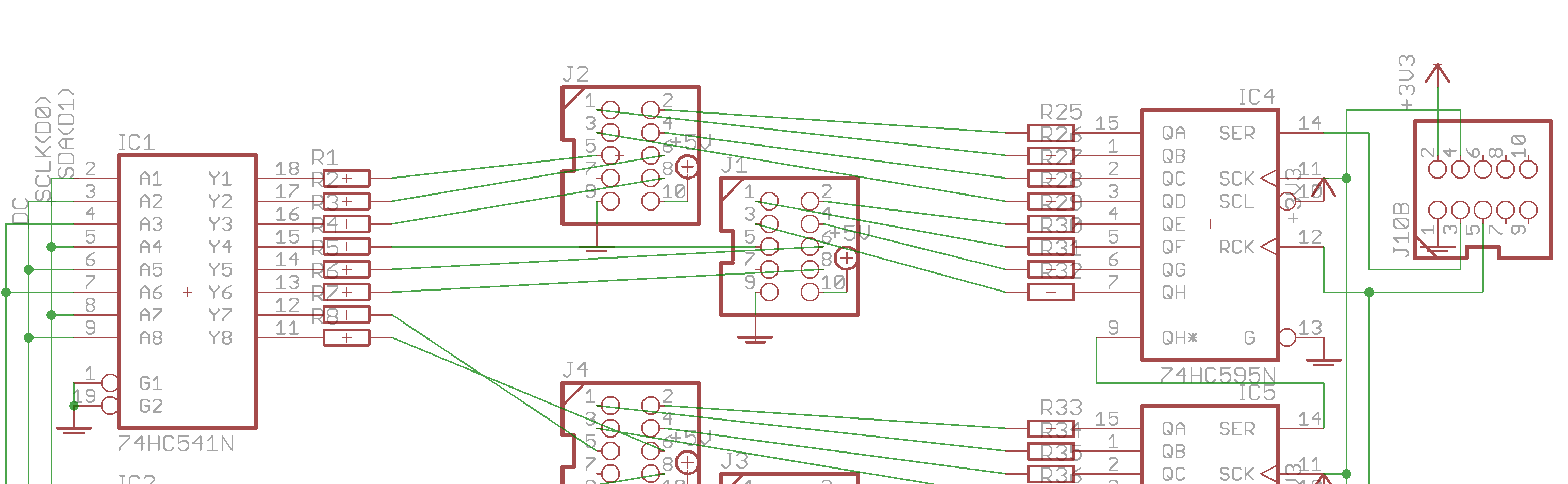

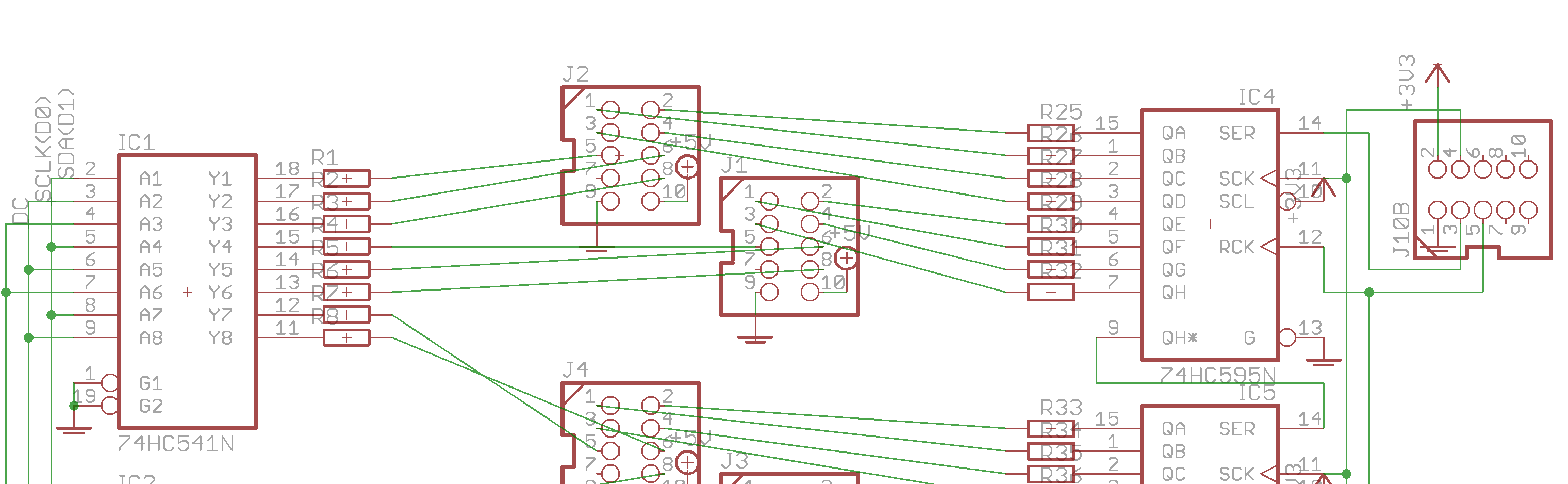

The concept is to buffer the time-critical clock signal. A wire connected directly to the MCU is loaded by the long distance (resistance in the connectors and wires) and could be susceptible to noise. Using a 541 buffer and shunt resistors controls this impedance. The serial data and data/command (DC) signals are also buffered to avoid time propagation errors.

The second purpose is to use a chain of shift registers to provide chip select (CS) signals. It is functionally equivalent to a DOUT module, but the header is directly compatible with GPIO on the Core.

The pinout for the display connectors is as follows:

(Power is connected to pin 10.)

BOM v1.0

Type Part Value Device
Caps C1 100n C025-025×050
C2 100n C025-025×050
C3 100n C025-025×050
C4 100n C025-025×050
C5 100n C025-025×050
C6 100n C025-025×050
C7 100n C025-025×050
ICs IC1 74HC541N 74HC541N
IC2 74HC541N 74HC541N
IC3 74HC541N 74HC541N
IC4 74HC595N 74HC595N
IC5 74HC595N 74HC595N
IC6 74HC595N 74HC595N
IC7 74HC595N 74HC595N
Headers J1 PINHD-2X54WALL PAK100/2500-10
J2 PINHD-2X54WALL PAK100/2500-10
J3 PINHD-2X54WALL PAK100/2500-10
J4 PINHD-2X54WALL PAK100/2500-10
J5 PINHD-2X54WALL PAK100/2500-10
J6 PINHD-2X54WALL PAK100/2500-10
J7 PINHD-2X54WALL PAK100/2500-10
J8 PINHD-2X54WALL PAK100/2500-10
J9 +5V 22-23-2031
J10B PINHD-2X54WALL PAK100/2500-10
J10B1 PINHD-2X54WALL PAK100/2500-10
J15A PINHD-2X8THTTHT PAK100/2500-16
J15A1 PINHD-2X8THTTHT PAK100/2500-16
Resistors R1 ~220R 0207/10
R2 ~220R 0207/10
R3 ~220R 0207/10
R4 ~220R 0207/10
R5 ~220R 0207/10
R6 ~220R 0207/10
R7 ~220R 0207/10
R8 ~220R 0207/10
R9 ~220R 0207/10
R10 ~220R 0207/10
R11 ~220R 0207/10
R12 ~220R 0207/10
R13 ~220R 0207/10
R14 ~220R 0207/10
R15 ~220R 0207/10
R16 ~220R 0207/10
R17 ~220R 0207/10
R18 ~220R 0207/10
R19 ~220R 0207/10
R20 ~220R 0207/10
R21 ~220R 0207/10
R22 ~220R 0207/10
R23 ~220R 0207/10
R24 ~220R 0207/10
R25 ~1k 0207/10
R26 ~1k 0207/10
R27 ~1k 0207/10
R28 ~1k 0207/10
R29 ~1k 0207/10
R30 ~1k 0207/10
R31 ~1k 0207/10
R32 ~1k 0207/10
R33 ~1k 0207/10
R34 ~1k 0207/10
R35 ~1k 0207/10
R36 ~1k 0207/10
R37 ~1k 0207/10
R38 ~1k 0207/10
R39 ~1k 0207/10
R40 ~1k 0207/10
R41 ~1k 0207/10
R42 ~1k 0207/10
R43 ~1k 0207/10
R44 ~1k 0207/10
R45 ~1k 0207/10
R46 ~1k 0207/10
R47 ~1k 0207/10
R48 ~1k 0207/10
R49 ~1k 0207/10
R50 ~1k 0207/10
R51 ~1k 0207/10
R52 ~1k 0207/10
R53 ~1k 0207/10
R54 ~1k 0207/10
R55 ~1k 0207/10
R56 ~1k 0207/10

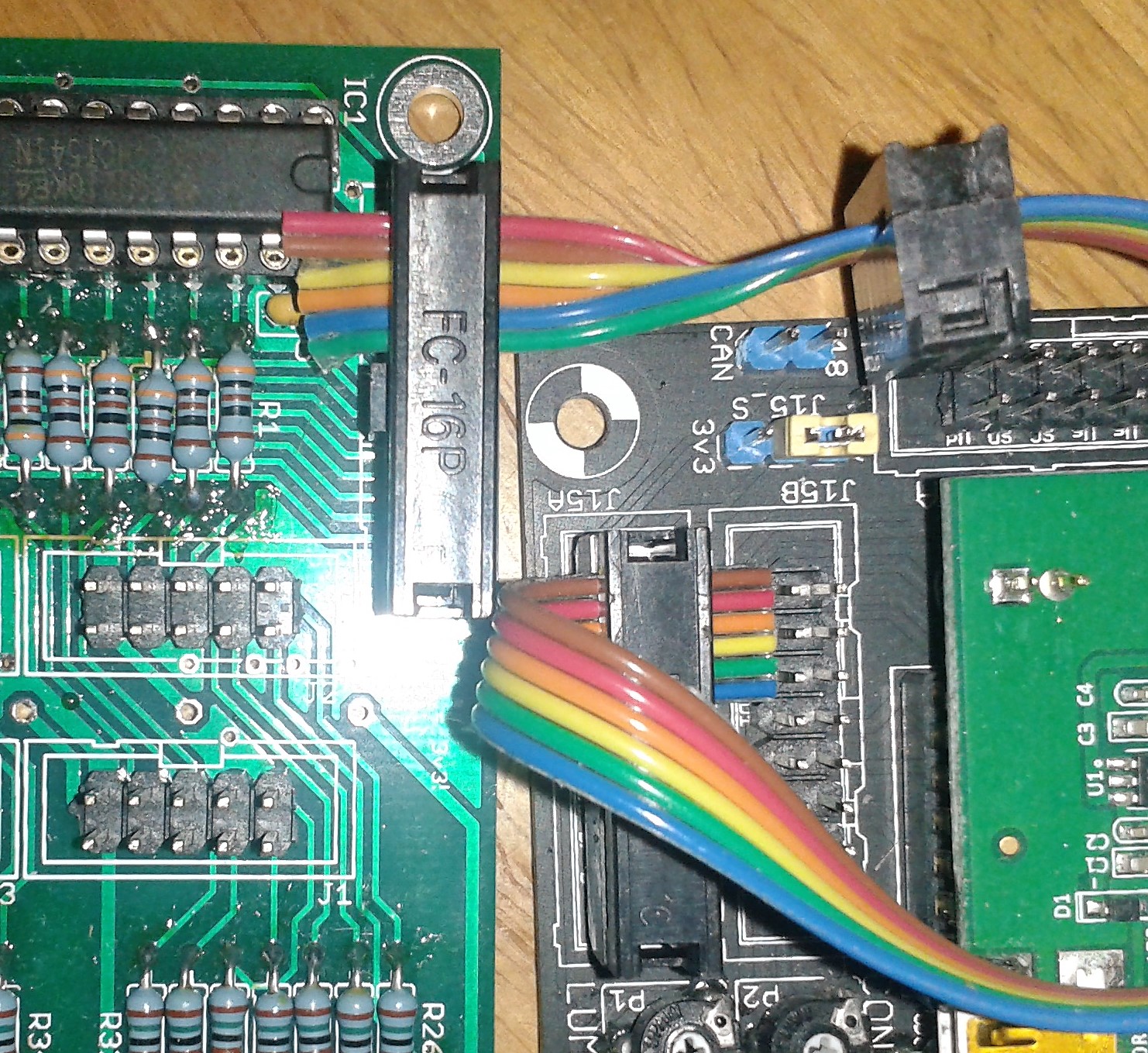

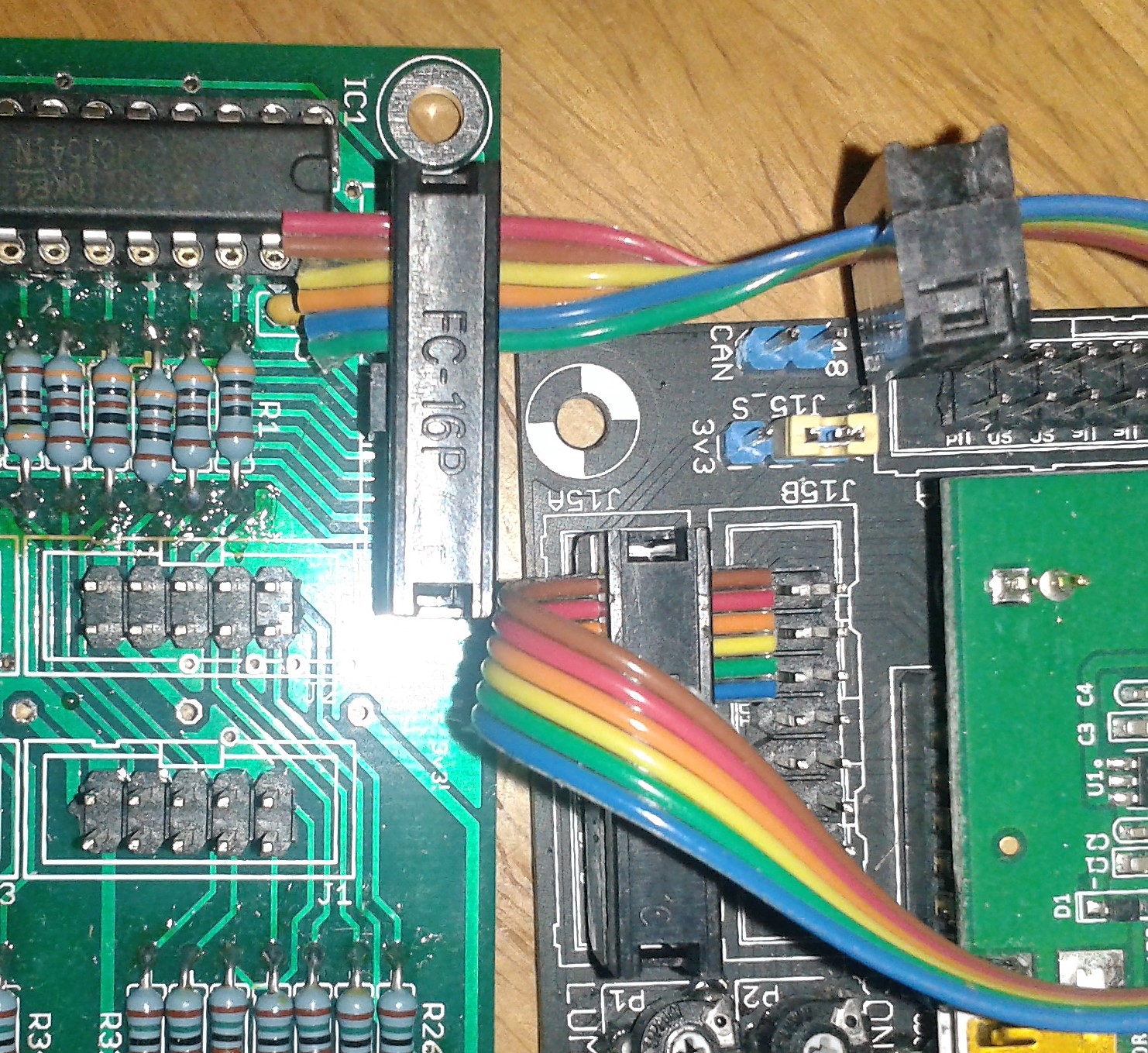

v1.0: first release. Erratum: there is a significant error in that J15 is mirrored. The simplest way to get it working is to swap pairs of the ribbon wires as shown:

Here the header notches are aligned with the silkscreen. Only the first six wires are required.


All parts are THT, start with resistors and caps, IC sockets then headers.

Interconnection to Core

J10B connects to J10B. J15A to J15A. Note the mirrored connection on v1.0

J15A1/J10B1 chain another Display Driver. Note that the J15 connection should not be mirrored for subsequent boards.

J9 is a power supply input that is sent to the displays over headers J1-J8. It may be better to wire the displays directly to the power supply rather than using the ribbon cable and connectors.


The PCB is 100*100mm with 3.2mm diameter holes centred 3.5mm from the edges.


Currently the design is © 2018 antilog devices with all rights reserved; all documentation is CC BY-NC-SA 3.0.
