Combination of 0.96“ SSD1306 OLEDs and switches for an SCS

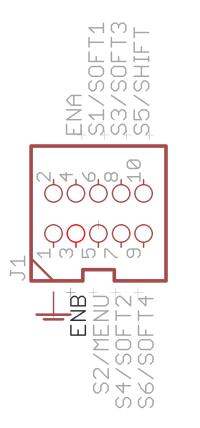

Refer to the SCS schematic or below for J1/button and encoder pinning and the Core module (J15) for J5/OLEDs.
|Switches||S1(A)||DT6 or 6mm|
|S2(A)||DT6 or 6mm|
|S3(A)||DT6 or 6mm|
|S4(A)||DT6 or 6mm|
|S5(A)||DT6 or 6mm|
|S6(A)||DT6 or 6mm|
v1.0: first release

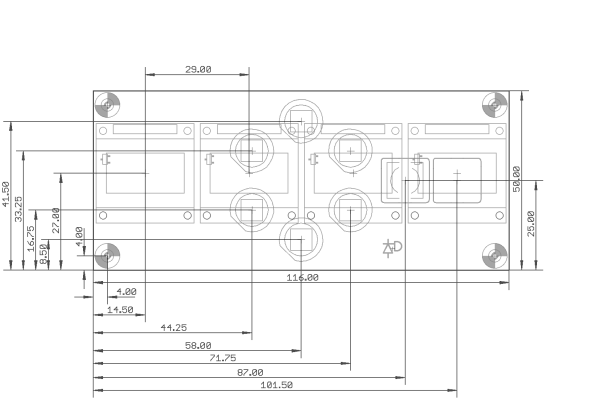

Decide on the configuration to be used. Any combination of switches, encoders or OLEDs is possible if they fit.
Only one encoder is wired to the J1 header. If you want to use the EN2 position, wire the legs to the empty EN1 solder points.
R9 and C29 form the power-on reset for OLEDs. R7 should not be installed. R3/C25/R4/C26 form a termination shunt for OLED data lines. They shouldn't be required.
The switches accommodate either DT6 or 6mm switches (obviously only one type!). For DT6 switches, ensure the flat side is aligned with the PCB silkscreen.
J2 can supply power if needed.
J1 is the SCS header, connecting to J10A
J2 can provide power as indicated; it is also connected on J5.
J5 connects to J15 on the Core (or equivalent)
Currently the design is © 2016 antilog devices with all rights reserved; all documentation is CC BY-NC-SA 3.0.
