modules/genesis/genesis.h File Reference

Data Structures
union	opn2_operator_t
union	opn2_channel_t
union	opn2_chip_t
union	psg_square_t
union	psg_noise_t
union	psg_chip_t
union	genesis_board_t
union	genesis_t
Defines
#define	GENESIS_COUNT   1
#define	GENESIS_OPN2_WRITETIMEOUT   160
#define	GENESIS_PSG_WRITETIMEOUT   12
#define	GENESIS_RESETTIMEOUTUS   1000
Functions
void	Genesis_Init (void)
void	Genesis_OPN2Write (u8 board, u8 addrhi, u8 address, u8 data)
void	Genesis_PSGWrite (u8 board, u8 data)
bool	Genesis_CheckOPN2Busy (u8 board)
bool	Genesis_CheckPSGBusy (u8 board)
void	Genesis_Reset (u8 board)
void	Genesis_WriteBoardBits (u8 board)
Variables
genesis_t	genesis [GENESIS_COUNT]

---

Define Documentation

#define GENESIS_COUNT   1

#define GENESIS_OPN2_WRITETIMEOUT   160

#define GENESIS_PSG_WRITETIMEOUT   12

#define GENESIS_RESETTIMEOUTUS   1000

---

Function Documentation

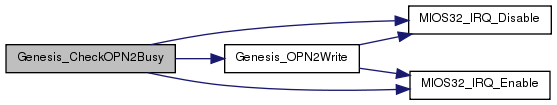

bool Genesis_CheckOPN2Busy

(

u8

board

)

Here is the call graph for this function:

bool Genesis_CheckPSGBusy

(

u8

board

)

Here is the call graph for this function:

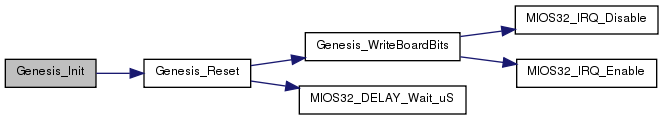

void Genesis_Init

(

void

)

Here is the call graph for this function:

void Genesis_OPN2Write	(	u8	board,
		u8	addrhi,
		u8	address,
		u8	data
	)

Here is the call graph for this function:

void Genesis_PSGWrite	(	u8	board,
		u8	data
	)

Here is the call graph for this function:

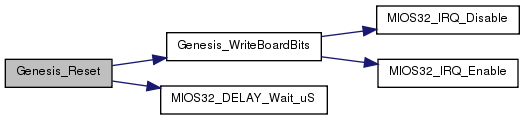

void Genesis_Reset

(

u8

board

)

Here is the call graph for this function:

void Genesis_WriteBoardBits

(

u8

board

)

Here is the call graph for this function:

---

Variable Documentation

genesis_t genesis[GENESIS_COUNT]
