BLM_SCALAR_MASTER

Collaboration diagram for BLM_SCALAR_MASTER:

Data Structures

union  sysex_state_t

Defines

#define SYSEX_DISACK   0x0e
#define SYSEX_ACK   0x0f
#define SYSEX_DISACK_LESS_BYTES_THAN_EXP   0x01
#define SYSEX_DISACK_MORE_BYTES_THAN_EXP   0x02
#define SYSEX_DISACK_INVALID_COMMAND   0x0c
#define SYSEX_BLM_CMD_REQUEST   0x00
#define SYSEX_BLM_CMD_LAYOUT   0x01
#define BLM_TIMEOUT_RELOAD_VALUE   10000
#define BLM_MAX_PACKETS   8

Enumerations

enum  sysex_cmd_state_t { SYSEX_CMD_STATE_BEGIN, SYSEX_CMD_STATE_CONT, SYSEX_CMD_STATE_END }

Functions

s32 BLM_SCALAR_MASTER_Init (u32 mode)
s32 BLM_SCALAR_MASTER_MIDI_PortSet (u8 blm, mios32_midi_port_t port)
mios32_midi_port_t BLM_SCALAR_MASTER_MIDI_PortGet (u8 blm)
blm_scalar_master_connection_state_t BLM_SCALAR_MASTER_ConnectionStateGet (u8 blm)
s32 BLM_SCALAR_MASTER_ButtonCallback_Init (s32(*button_callback_func)(u8 blm, blm_scalar_master_element_t element_id, u8 button_x, u8 button_y, u8 button_depressed))
s32 BLM_SCALAR_MASTER_FaderCallback_Init (s32(*fader_callback_func)(u8 blm, u8 fader, u8 value))
s32 BLM_SCALAR_MASTER_LED_Set (u8 blm, blm_scalar_master_element_t element_id, u8 led_x, u8 led_y, blm_scalar_master_colour_t colour)
blm_scalar_master_colour_t BLM_SCALAR_MASTER_LED_Get (u8 blm, blm_scalar_master_element_t element_id, u8 led_x, u8 led_y)
s32 BLM_SCALAR_MASTER_RotateViewSet (u8 blm, u8 rotate_view)
s32 BLM_SCALAR_MASTER_RotateViewGet (u8 blm)
s32 BLM_SCALAR_MASTER_RowOffsetSet (u8 blm, u8 row_offset)
s32 BLM_SCALAR_MASTER_RowOffsetGet (u8 blm)
s32 BLM_SCALAR_MASTER_NumColumnsGet (u8 blm)
s32 BLM_SCALAR_MASTER_NumRowsGet (u8 blm)
s32 BLM_SCALAR_MASTER_NumColoursGet (u8 blm)
s32 BLM_SCALAR_MASTER_TimeoutCtrSet (u8 blm, u16 ctr)
s32 BLM_SCALAR_MASTER_TimeoutCtrGet (u8 blm)
s32 BLM_SCALAR_MASTER_ForceDisplayUpdate (u8 blm)
s32 BLM_SCALAR_MASTER_MIDI_Receive (mios32_midi_port_t port, mios32_midi_package_t midi_package)
s32 BLM_SCALAR_MASTER_MIDI_TimeOut (mios32_midi_port_t port)
s32 BLM_SCALAR_MASTER_SYSEX_Parser (mios32_midi_port_t port, u8 midi_in)
s32 BLM_SCALAR_MASTER_SendRequest (u8 blm, u8 req)
s32 BLM_SCALAR_MASTER_Periodic_mS (void)

Variables

u16 blm_scalar_master_leds_green [BLM_SCALAR_MASTER_NUM_ROWS]
u16 blm_scalar_master_leds_red [BLM_SCALAR_MASTER_NUM_ROWS]
u16 blm_scalar_master_leds_extracolumn_green
u16 blm_scalar_master_leds_extracolumn_red
u16 blm_scalar_master_leds_extracolumn_shift_green
u16 blm_scalar_master_leds_extracolumn_shift_red
u16 blm_scalar_master_leds_extrarow_green
u16 blm_scalar_master_leds_extrarow_red
u8 blm_scalar_master_leds_extra_green
u8 blm_scalar_master_leds_extra_red

Detailed Description

BLM_SCALAR_MASTER Driver

Define Documentation

#define BLM_MAX_PACKETS   8
#define BLM_TIMEOUT_RELOAD_VALUE   10000
#define SYSEX_ACK   0x0f
#define SYSEX_BLM_CMD_LAYOUT   0x01
#define SYSEX_BLM_CMD_REQUEST   0x00
#define SYSEX_DISACK   0x0e

Include files Local definitions

#define SYSEX_DISACK_INVALID_COMMAND   0x0c
#define SYSEX_DISACK_LESS_BYTES_THAN_EXP   0x01
#define SYSEX_DISACK_MORE_BYTES_THAN_EXP   0x02

Enumeration Type Documentation

enum sysex_cmd_state_t

Local types

Enumerator:
SYSEX_CMD_STATE_BEGIN
SYSEX_CMD_STATE_CONT
SYSEX_CMD_STATE_END

Function Documentation

s32 BLM_SCALAR_MASTER_ButtonCallback_Init ( s32(*)(u8 blm, blm_scalar_master_element_t element_id, u8 button_x, u8 button_y, u8 button_depressed)  button_callback_func  )

Installs callback function for BLM16x16 buttons

blm_scalar_master_connection_state_t BLM_SCALAR_MASTER_ConnectionStateGet ( u8  blm  )

Returns connection state to MBHP_BLM_SCALAR:

Returns:
0 no contact yet
1 contact via MIDI protocol
2 contact via simplified Lemur protocol
s32 BLM_SCALAR_MASTER_FaderCallback_Init ( s32(*)(u8 blm, u8 fader, u8 value)  fader_callback_func  )

Installs callback function for faders

s32 BLM_SCALAR_MASTER_ForceDisplayUpdate ( u8  blm  )

Enforces a display update

s32 BLM_SCALAR_MASTER_Init ( u32  mode  )

Initializes the BLM_SCALAR_MASTER driver Should be called from Init() during startup

Parameters:
[in] mode currently only mode 0 supported
Returns:
< 0 if initialisation failed
blm_scalar_master_colour_t BLM_SCALAR_MASTER_LED_Get ( u8  blm,
blm_scalar_master_element_t  element_id,
u8  led_x,
u8  led_y
)

Returns the current colour of a LED

s32 BLM_SCALAR_MASTER_LED_Set ( u8  blm,
blm_scalar_master_element_t  element_id,
u8  led_x,
u8  led_y,
blm_scalar_master_colour_t  colour
)

Sets a LED to the given colour

mios32_midi_port_t BLM_SCALAR_MASTER_MIDI_PortGet ( u8  blm  )

Returns the currently configured MIDI IN/OUT port for MBHP_BLM_SCALAR communication

Returns:
0 no communication
the MIDI port if != 0
s32 BLM_SCALAR_MASTER_MIDI_PortSet ( u8  blm,
mios32_midi_port_t  port
)

Sets the IN/OUT port for MBHP_BLM_SCALAR communication

s32 BLM_SCALAR_MASTER_MIDI_Receive ( mios32_midi_port_t  port,
mios32_midi_package_t  midi_package
)

Receives a MIDI package from APP_NotifyReceivedEvent (-> app.c) if port matches with blm_midi_port

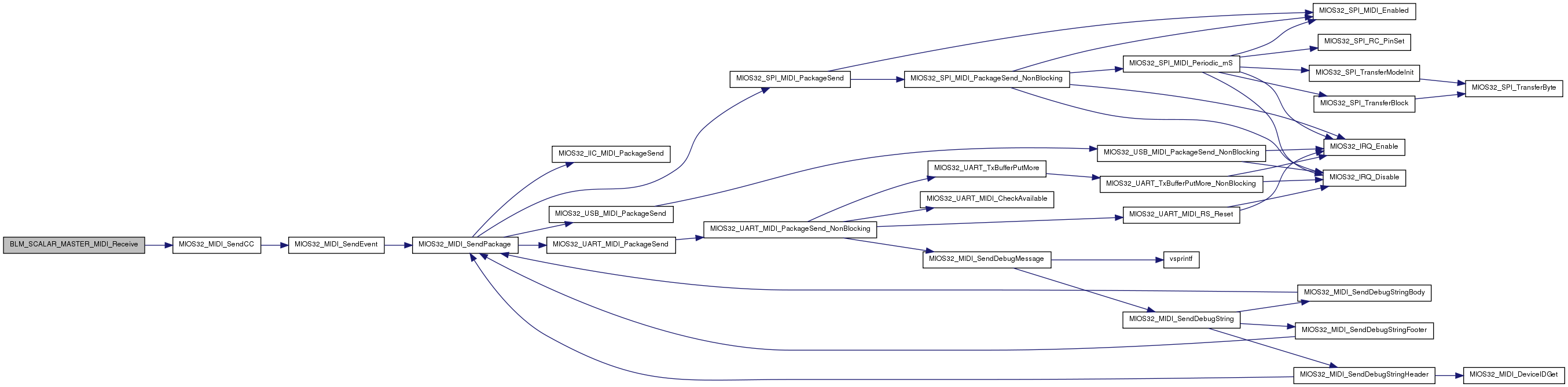

Here is the call graph for this function:

s32 BLM_SCALAR_MASTER_MIDI_TimeOut ( mios32_midi_port_t  port  )

This function is called from NOTIFY_MIDI_TimeOut() in app.c if the MIDI parser runs into timeout

s32 BLM_SCALAR_MASTER_NumColoursGet ( u8  blm  )

Returns the number of colours as reported by the BLM during layout request

s32 BLM_SCALAR_MASTER_NumColumnsGet ( u8  blm  )

Returns the number of columns as reported by the BLM during layout request

s32 BLM_SCALAR_MASTER_NumRowsGet ( u8  blm  )

Returns the number of columns as reported by the BLM during layout request

s32 BLM_SCALAR_MASTER_Periodic_mS ( void   )

This function should be periodically called each mS

handle Timeout

take over update force flag

send LED changes to BLM16x16

send LED changes to extra buttons

Here is the call graph for this function:

s32 BLM_SCALAR_MASTER_RotateViewGet ( u8  blm  )

Returns != 0 if screen currently rotated by 90 grad

s32 BLM_SCALAR_MASTER_RotateViewSet ( u8  blm,
u8  rotate_view
)

Rotates the Screen by 90 grad

s32 BLM_SCALAR_MASTER_RowOffsetGet ( u8  blm  )

Returns the current row offset

s32 BLM_SCALAR_MASTER_RowOffsetSet ( u8  blm,
u8  row_offset
)

Sets a row offsets when sending the display data for smaller BLM screens

s32 BLM_SCALAR_MASTER_SendRequest ( u8  blm,
u8  req
)

This function is called to request the layout

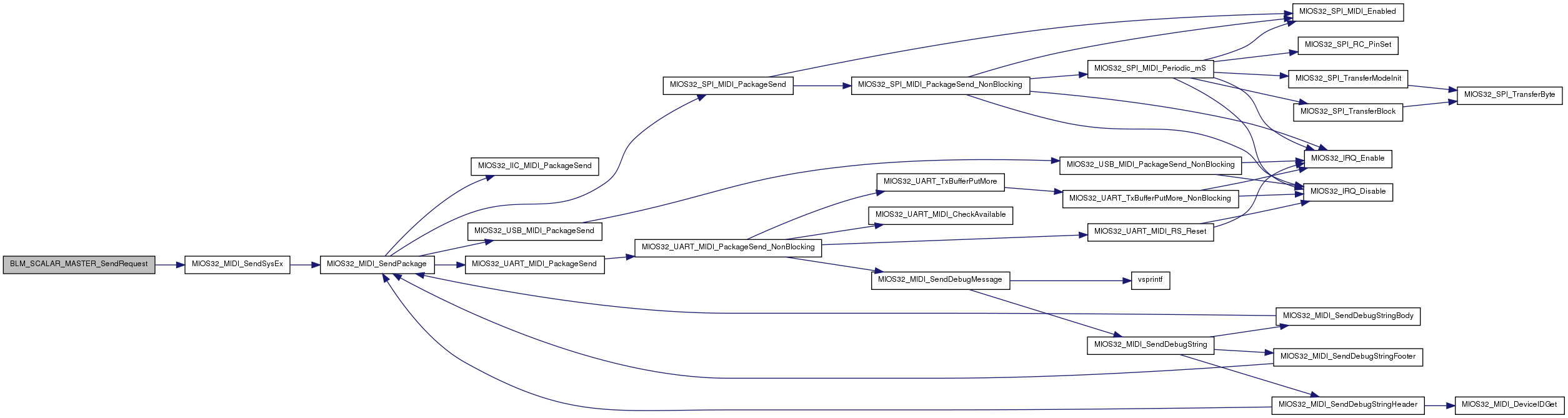

Here is the call graph for this function:

s32 BLM_SCALAR_MASTER_SYSEX_Parser ( mios32_midi_port_t  port,
u8  midi_in
)

This function parses an incoming sysex stream for MIOS32 commands Called from SysEx hook in app.c

s32 BLM_SCALAR_MASTER_TimeoutCtrGet ( u8  blm  )
Returns:
the current timeout counter
s32 BLM_SCALAR_MASTER_TimeoutCtrSet ( u8  blm,
u16  ctr
)

Directly sets the timeout counter, e.g. to 0 so that the BLM will be disabled until a newly selected port receives a connection request

Variable Documentation

u8 blm_scalar_master_leds_extra_green
u8 blm_scalar_master_leds_extra_red
u16 blm_scalar_master_leds_extracolumn_green
u16 blm_scalar_master_leds_extracolumn_red
u16 blm_scalar_master_leds_extracolumn_shift_green
u16 blm_scalar_master_leds_extracolumn_shift_red
u16 blm_scalar_master_leds_extrarow_green
u16 blm_scalar_master_leds_extrarow_red
u16 blm_scalar_master_leds_green[BLM_SCALAR_MASTER_NUM_ROWS]

Global variables

u16 blm_scalar_master_leds_red[BLM_SCALAR_MASTER_NUM_ROWS]
