FILE

Defines
#define	DEBUG_VERBOSE_LEVEL 1
#define	SECTOR_SIZE _MAX_SS
#define	TMP_BUFFER_SIZE _MAX_SS
Functions
s32	FILE_Init (u32 mode)
s32	FILE_CheckSDCard (void)
s32	FILE_UpdateFreeBytes (void)
u32	FILE_VolumeSectorsPerCluster (void)
u32	FILE_VolumeCluster2Sector (u32 cluster)
s32	FILE_SDCardAvailable (void)
s32	FILE_VolumeAvailable (void)
u32	FILE_VolumeBytesFree (void)
u32	FILE_VolumeBytesTotal (void)
char *	FILE_VolumeLabel (void)
s32	FILE_ReadOpen (file_t file, char filepath)
s32	FILE_ReadReOpen (file_t *file)
s32	FILE_ReadClose (file_t *file)
s32	FILE_ReadSeek (u32 offset)
u32	FILE_ReadGetCurrentSize (void)
u32	FILE_ReadGetCurrentPosition (void)
s32	FILE_ReadBuffer (u8 *buffer, u32 len)
s32	FILE_ReadBufferUnknownLen (u8 *buffer, u32 len)
s32	FILE_ReadLine (u8 *buffer, u32 max_len)
s32	FILE_ReadByte (u8 *byte)
s32	FILE_ReadHWord (u16 *hword)
s32	FILE_ReadWord (u32 *word)
s32	FILE_WriteOpen (char *filepath, u8 create)
s32	FILE_WriteClose (void)
s32	FILE_WriteSeek (u32 offset)
u32	FILE_WriteGetCurrentSize (void)
u32	FILE_WriteGetCurrentPosition (void)
s32	FILE_WriteBuffer (u8 *buffer, u32 len)
s32	FILE_WriteByte (u8 byte)
s32	FILE_WriteHWord (u16 hword)
s32	FILE_WriteWord (u32 word)
s32	FILE_Copy (char src_file, char dst_file)
s32	FILE_MakeDir (char *path)
s32	FILE_Remove (char *path)
s32	FILE_FileExists (char *filepath)
s32	FILE_DirExists (char *path)
s32	FILE_GetDirs (char path, char dir_list, u8 num_of_items, u8 dir_offset)
s32	FILE_GetFiles (char path, char ext_filter, char *file_list, u8 num_of_items, u8 file_offset)
s32	FILE_FindNextFile (char path, char filename, char ext_filter, char next_filename)
s32	FILE_FindPreviousFile (char path, char filename, char ext_filter, char prev_filename)
s32	FILE_SendSyxDump (char *path, mios32_midi_port_t port, u32 ms_delay_between_dumps)
s32	FILE_PrintSDCardInfos (void)
s32	FILE_SendErrorMessage (s32 error_status)
s32	FILE_BrowserHandler (mios32_midi_port_t port, char *command)
s32	FILE_BrowserUploadCallback_Init (s32(callback_upload)(char filename))
Variables
u32	file_dfs_errno
u8	file_copy_percentage

Detailed Description

File access layer for FatFS

Frontend functions to read/write files.
Optimized for Memory Size and Speed!

For the whole application only single file handlers for read and write operations are available. They are shared globally to save memory (because each FatFs handler allocates more than 512 bytes to store the last read sector)

For read operations it is possible to re-open a file via a file_t reference so that no directory access is required to find the first sector of the file (again).

NOTE: before accessing the SD Card, the upper level function should synchronize with a SD Card semaphore! E.g. (defined in tasks.h in various projects): MUTEX_SDCARD_TAKE; // to take the semaphore MUTEX_SDCARD_GIVE; // to release the semaphore

Define Documentation

#define DEBUG_VERBOSE_LEVEL 1

#define SECTOR_SIZE _MAX_SS

#define TMP_BUFFER_SIZE _MAX_SS

Function Documentation

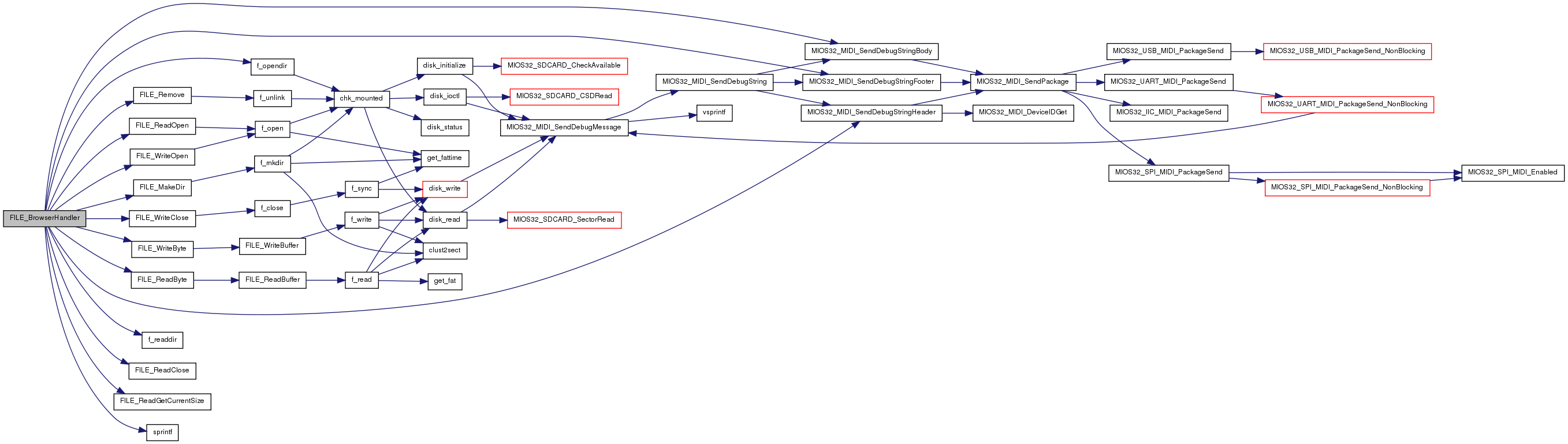

s32 FILE_BrowserHandler	(	mios32_midi_port_t	port,
		char *	command
	)

Handler for MIOS Studio Filebrowser accesses.
See $MIOS32_PATH/apps/controllers/midio128/src/terminal.c for usage example.

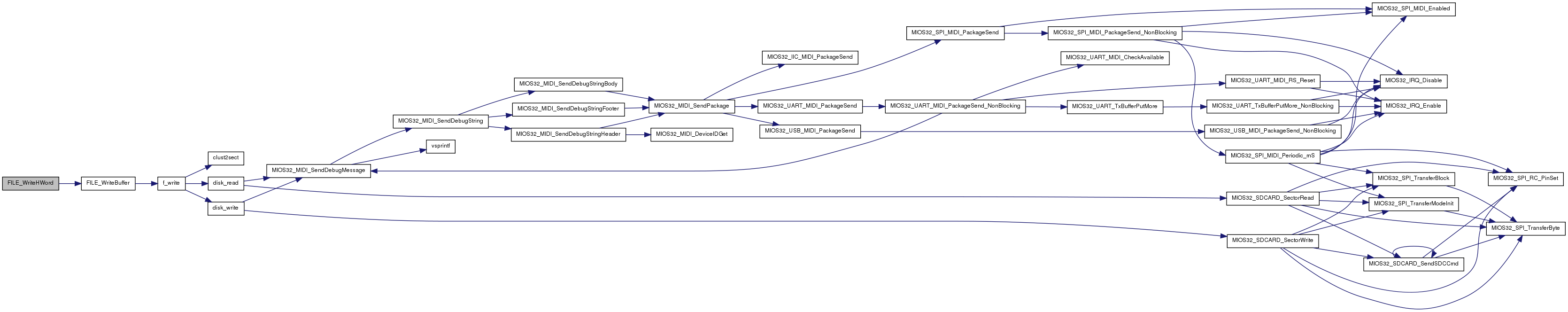

Here is the call graph for this function:

s32 FILE_BrowserUploadCallback_Init ( s32(*)(char *filename) callback_upload )

Installs the Browser Upload callback function which is executed whenever a file upload starts, and when it has been successfully finished.

Parameters:

[in] filename if != NULL, upload has been started for the given file, if NULL the upload has been finished.
This means: if the application should do anything with the uploaded file (e.g. auto-load), then it has to store the filename in a temporary variable!

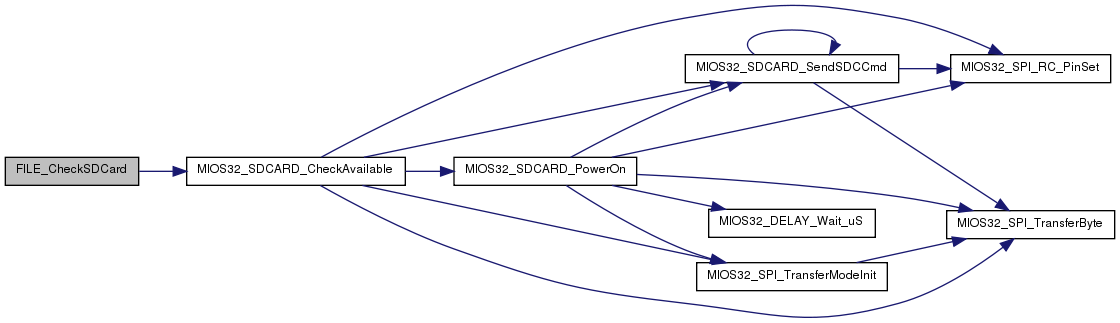

s32 FILE_CheckSDCard ( void )

This function should be called periodically to check the availability of the SD Card

Returns:: < 0 on errors (error codes are documented in file.h); 1 if SD card has been connected; 2 if SD card has been disconnected; 3 if new files should be loaded, e.g. after startup or SD Card change

Here is the call graph for this function:

s32 FILE_Copy	(	char *	src_file,
		char *	dst_file
	)

This function copies a file

Parameters:

`[in]`	src_file	the source file which should be copied
`[in]`	dst_file	the destination file

Here is the call graph for this function:

s32 FILE_DirExists ( char * path )

Returns 1 if directory exists, 0 if it doesn't exist, < 0 on errors

Here is the call graph for this function:

s32 FILE_FileExists ( char * filepath )

Returns 1 if file exists, 0 if it doesn't exist, < 0 on errors

Here is the call graph for this function:

s32 FILE_FindNextFile	(	char *	path,
		char *	filename,
		char *	ext_filter,
		char *	next_filename
	)

Returns a file next to the given filename with the given extension if filename == NULL, the first file will be returned in next_filename

Parameters:

`[in]`	path	directory in which we want to search
`[in]`	filename	current file (if NULL, the first file will be returned)
`[in]`	ext_filter	optional extension filter (if NULL: no extension)
`[out]`	next_filename	the next file if return status is 1

Returns:: < 0 on errors (error codes are documented in file.h); 1 if next file has been found; 0 if no additional file

Here is the call graph for this function:

s32 FILE_FindPreviousFile	(	char *	path,
		char *	filename,
		char *	ext_filter,
		char *	prev_filename
	)

Returns a previous file of the given filename with the given extension if filename == NULL, no first file will be returned in prev_filename

Parameters:

`[in]`	path	directory in which we want to search
`[in]`	filename	current file (if NULL, the last file will be returned)
`[in]`	ext_filter	optional extension filter (if NULL: no extension)
`[out]`	prev_filename	the previous file if return status is 1

Returns:: < 0 on errors (error codes are documented in file.h); 1 if previous file has been found; 0 if no additional file

Here is the call graph for this function:

s32 FILE_GetDirs	(	char *	path,
		char *	dir_list,
		u8	num_of_items,
		u8	dir_offset
	)

Here is the call graph for this function:

s32 FILE_GetFiles	(	char *	path,
		char *	ext_filter,
		char *	file_list,
		u8	num_of_items,
		u8	file_offset
	)

Here is the call graph for this function:

s32 FILE_Init ( u32 mode )

Initialisation

Here is the call graph for this function:

s32 FILE_MakeDir ( char * path )

Creates a directory

Here is the call graph for this function:

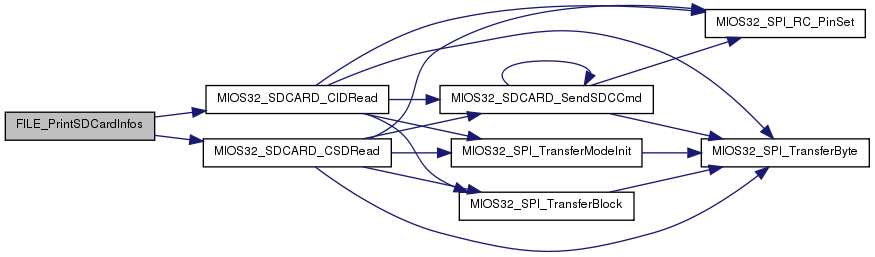

s32 FILE_PrintSDCardInfos ( void )

This function prints some useful SD card informations on the MIOS terminal

Here is the call graph for this function:

s32 FILE_ReadBuffer	(	u8 *	buffer,
		u32	len
	)

Read from file

Returns:: < 0 on errors (error codes are documented in file.h)

Here is the call graph for this function:

s32 FILE_ReadBufferUnknownLen	(	u8 *	buffer,
		u32	len
	)

Read from file with unknown size

Returns:: < 0 on errors (error codes are documented in file.h); >= 0: value contains the actual read bytes

Here is the call graph for this function:

s32 FILE_ReadByte ( u8 * byte )

Read a 8bit value from file

Returns:: < 0 on errors (error codes are documented in file.h)

Here is the call graph for this function:

s32 FILE_ReadClose ( file_t * file )

Closes a file which has been read File can be re-opened if required thereafter w/o performance issues

Returns:: < 0 on errors (error codes are documented in file.h)

u32 FILE_ReadGetCurrentPosition ( void )

Returns current file pointer of the write file

u32 FILE_ReadGetCurrentSize ( void )

Returns current size of write file

s32 FILE_ReadHWord ( u16 * hword )

Read a 16bit value from file

Returns:: < 0 on errors (error codes are documented in file.h)

Here is the call graph for this function:

s32 FILE_ReadLine	(	u8 *	buffer,
		u32	max_len
	)

Read a string (terminated with CR) from file

Returns:: < 0 on errors (error codes are documented in file.h)

Here is the call graph for this function:

s32 FILE_ReadOpen	(	file_t *	file,
		char *	filepath
	)

opens a file for reading Note: to save memory, one a single file is allowed to be opened per time - always use FILE_ReadClose() before opening a new file! Use FILE_ReadReOpen() to continue reading

Returns:: < 0 on errors (error codes are documented in file.h)

Here is the call graph for this function:

s32 FILE_ReadReOpen ( file_t * file )

reopens a file for reading

Returns:: < 0 on errors (error codes are documented in file.h)

Here is the call graph for this function:

s32 FILE_ReadSeek ( u32 offset )

Changes to a new file position

Returns:: < 0 on errors (error codes are documented in file.h)

Here is the call graph for this function:

s32 FILE_ReadWord ( u32 * word )

Read a 32bit value from file

Returns:: < 0 on errors (error codes are documented in file.h)

Here is the call graph for this function:

s32 FILE_Remove ( char * path )

Removes a file or directory

Here is the call graph for this function:

s32 FILE_SDCardAvailable ( void )

Returns:: 1 if SD card available

s32 FILE_SendErrorMessage ( s32 error_status )

Send a verbose error message to MIOS terminal

s32 FILE_SendSyxDump	(	char *	path,
		mios32_midi_port_t	port,
		u32	ms_delay_between_dumps
	)

This function sends a .syx file to given MIDI out port

Here is the call graph for this function:

s32 FILE_UpdateFreeBytes ( void )

This function updates the number of free bytes by scanning the FAT for unused clusters.
should be called before FILE_Volume* bytes are read

Here is the call graph for this function:

s32 FILE_VolumeAvailable ( void )

Returns:: 1 if volume available

u32 FILE_VolumeBytesFree ( void )

Returns:: number of available bytes

u32 FILE_VolumeBytesTotal ( void )

Returns:: total number of available bytes

u32 FILE_VolumeCluster2Sector ( u32 cluster )

Returns:: the physical sector of the given cluster

char* FILE_VolumeLabel ( void )

Returns:: volume label

u32 FILE_VolumeSectorsPerCluster ( void )

Returns:: number of sectors per cluster

s32 FILE_WriteBuffer	(	u8 *	buffer,
		u32	len
	)

Writes into a file with caching mechanism (actual write at end of sector) File has to be closed via FILE_WriteClose() after the last byte has been written
