MBNG_AIN

Functions
s32	MBNG_AIN_Init (u32 mode)
s32	MBNG_AIN_HandleCalibration (u16 pin_value, u16 min, u16 max, u16 ain_max, u8 spread_center)
s32	MBNG_AIN_HandleAinMode (mbng_event_item_t *item, u16 pin_value, u16 prev_pin_value)
s32	MBNG_AIN_NotifyChange (u32 pin, u32 pin_value, u8 no_midi)
s32	MBNG_AIN_Periodic (void)
s32	MBNG_AIN_NotifyReceivedValue (mbng_event_item_t *item)

---

Detailed Description

AIN access functions for MIDIbox NG

---

Function Documentation

s32 MBNG_AIN_HandleAinMode	(	mbng_event_item_t *	item,
		u16	pin_value,
		u16	prev_pin_value
	)

This function handles the various AIN modes Note: it's also used by the AINSER module, therefore public

Here is the call graph for this function:

s32 MBNG_AIN_HandleCalibration	(	u16	pin_value,
		u16	min,
		u16	max,
		u16	ain_max,
		u8	spread_center
	)

This function handles the calibration values Note: it's also used by the AINSER module, therefore public

s32 MBNG_AIN_Init

(

u32

mode

)

This function initializes the AIN handler

s32 MBNG_AIN_NotifyChange	(	u32	pin,
		u32	pin_value,
		u8	no_midi
	)

This function should be called from APP_AIN_NotifyChange when an input has changed its value

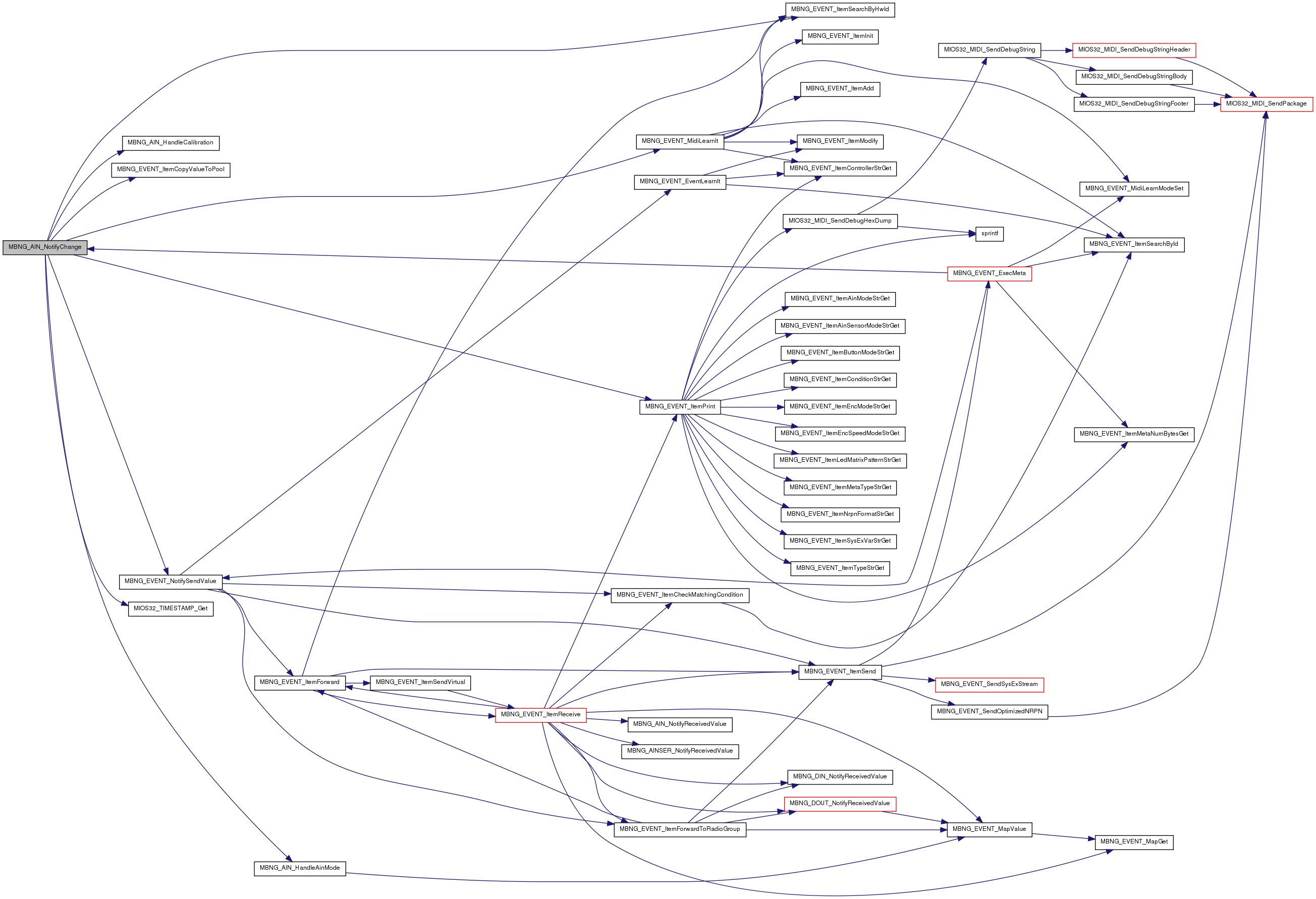

Here is the call graph for this function:

s32 MBNG_AIN_NotifyReceivedValue

(

mbng_event_item_t *

item

)

This function is called by MBNG_EVENT_ItemReceive when a matching value has been received

s32 MBNG_AIN_Periodic

(

void

)

Handle timed AIN events (sensor mode)

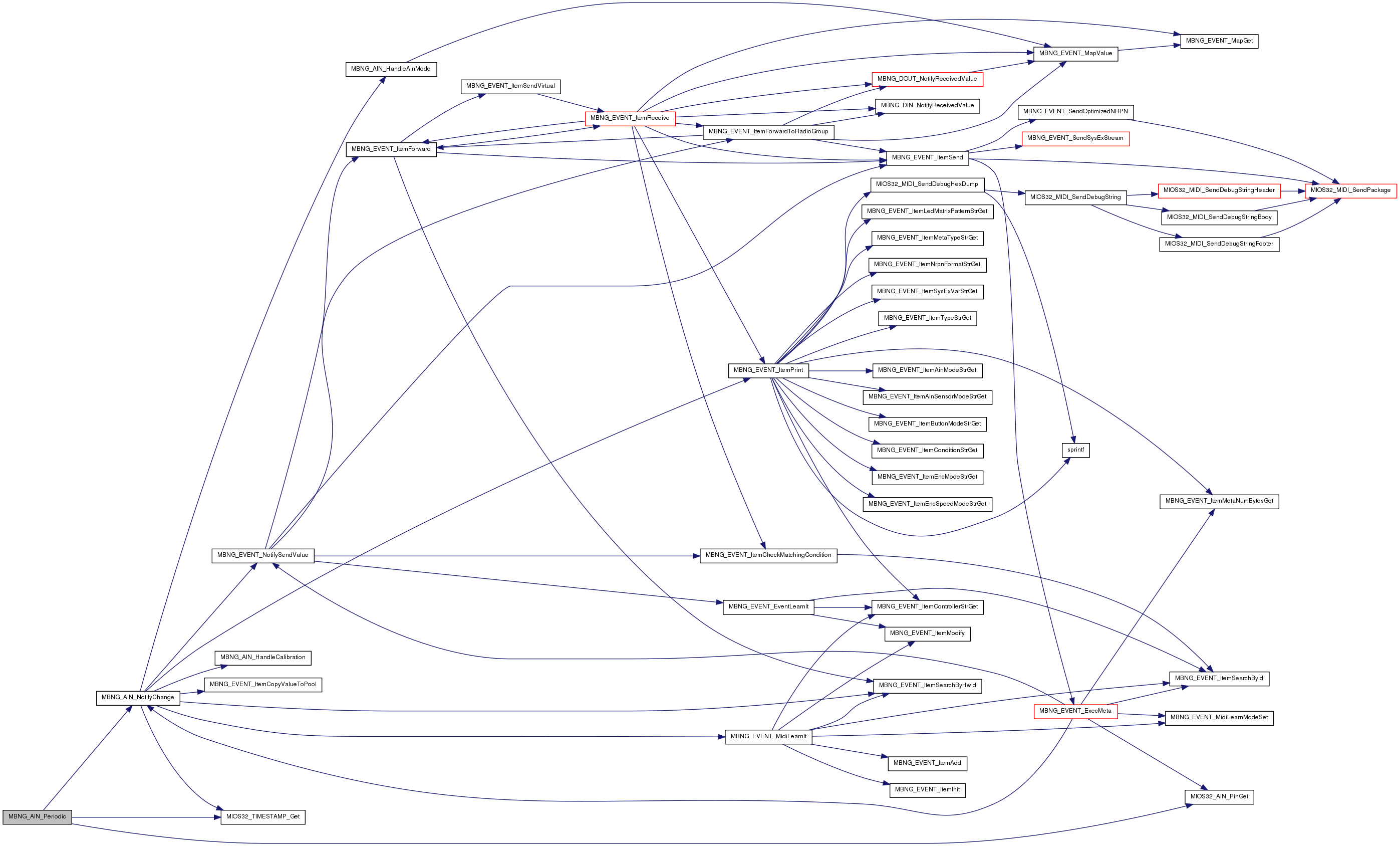

Here is the call graph for this function:
