MBNG_FILE_R

Data Structures
struct	mbng_file_r_info_t
union	mbng_file_r_req_t
struct	mbng_file_r_var_t
union	mbng_file_r_item_id_t
Defines
#define	DEBUG_VERBOSE_LEVEL   1
#define	DEBUG_FILE_HANDLER_PERFORMANCE   0
#define	NGR_TOKENIZED   0
#define	IF_MAX_NESTING_LEVEL   16
#define	MBNG_FILES_PATH   "/"
Enumerations
enum	ngr_token_t {   TOKEN_NOP = 0, TOKEN_EXIT = 0x01, TOKEN_DELAY_MS = 0x02, TOKEN_LCD = 0x03,   TOKEN_LOG = 0x04, TOKEN_SEND = 0x05, TOKEN_EXEC_META = 0x06, TOKEN_SET = 0x07,   TOKEN_CHANGE = 0x08, TOKEN_TRIGGER = 0x09, TOKEN_SET_RGB = 0x0a, TOKEN_SET_HSV = 0x0b,   TOKEN_SET_LOCK = 0x0c, TOKEN_SET_ACTIVE = 0x0d, TOKEN_SET_NO_DUMP = 0x0e, TOKEN_SET_MIN = 0x0f,   TOKEN_SET_MAX = 0x10, TOKEN_IF = 0x80, TOKEN_ELSE = 0x81, TOKEN_ELSEIF = 0x82,   TOKEN_ENDIF = 0x84, TOKEN_COND_EQ = 0x90, TOKEN_COND_NE = 0x91, TOKEN_COND_GTEQ = 0x92,   TOKEN_COND_LTEQ = 0x93, TOKEN_COND_GT = 0x94, TOKEN_COND_LT = 0x95 }
Functions
s32	MBNG_FILE_R_Init (u32 mode)
s32	MBNG_FILE_R_Load (char *filename)
s32	MBNG_FILE_R_Unload (void)
s32	MBNG_FILE_R_Valid (void)
s32	MBNG_FILE_R_TokenizedNgrSet (u8 enable)
s32	MBNG_FILE_R_TokenizedNgrGet (void)
s32	MBNG_FILE_R_TokenMemPrint (void)
s32	MBNG_FILE_R_VarSectionSet (u8 section)
s32	MBNG_FILE_R_VarSectionGet ()
s32	MBNG_FILE_R_VarValueSet (u8 value)
s32	MBNG_FILE_R_VarValueGet ()
s32	lineIsEmpty (char *line)
s32	parseCondition (u32 line, char *command, char **brkt, u8 tokenize_req)
s32	sendTokenized (mios32_midi_port_t port, mbng_event_type_t event_type, u8 *stream, u32 stream_size)
s32	parseSend (u32 line, char *command, char **brkt, u8 tokenize_req)
s32	parseExecMeta (u32 line, char *command, char **brkt, u8 tokenize_req)
s32	setTokenizedValue (ngr_token_t token, u16 id, s32 value, s32(*exec_function)(mbng_event_item_t *item, s32 value), s32(*exec_virtual_function)(mbng_event_item_id_t id, s32 value))
s32	parseCommand (u32 line, char *command, char **brkt, u8 tokenize_req, ngr_token_t command_token, s32(*exec_function)(mbng_event_item_t *item, s32 value), s32(*exec_virtual_function)(mbng_event_item_id_t id, s32 value))
s32	parseDelay (u32 line, char *command, char **brkt, u8 tokenize_req)
s32	parseLoad (u32 line, char *command, char **brkt, char *load_filename, u8 tokenize_req)
s32	MBNG_FILE_R_Parser (u32 line, char *line_buffer, u8 *if_state, u8 *nesting_level, char *load_filename, u8 tokenize_req)
s32	MBNG_FILE_R_Exec (u8 cont_script, u8 determine_if_offsets)
s32	MBNG_FILE_R_Read (char *filename, u8 cont_script, u8 tokenize_req)
s32	MBNG_FILE_R_ReadRequest (char *filename, u8 section, s16 value, u8 notify_done)
s32	MBNG_FILE_R_CheckRequest (void)
s32	MBNG_FILE_R_RunStop (void)
Variables
char	mbng_file_r_script_name [MBNG_FILE_R_FILENAME_LEN+1]

---

Detailed Description

Run File access functions

NOTE: before accessing the SD Card, the upper level function should synchronize with the SD Card semaphore! MUTEX_SDCARD_TAKE; // to take the semaphore MUTEX_SDCARD_GIVE; // to release the semaphore

---

Define Documentation

#define DEBUG_FILE_HANDLER_PERFORMANCE   0

for performance measurements

#define DEBUG_VERBOSE_LEVEL   1

Include files for optional debugging messages via DEBUG_MSG (defined in mios32_config.h)

#define IF_MAX_NESTING_LEVEL   16

Nesting vars

#define MBNG_FILES_PATH   "/"

Local definitions

#define NGR_TOKENIZED   0

Tokenize the source file?

---

Enumeration Type Documentation

enum ngr_token_t

Enumerator:

TOKEN_NOP
TOKEN_EXIT
TOKEN_DELAY_MS
TOKEN_LCD
TOKEN_LOG
TOKEN_SEND
TOKEN_EXEC_META
TOKEN_SET
TOKEN_CHANGE
TOKEN_TRIGGER
TOKEN_SET_RGB
TOKEN_SET_HSV
TOKEN_SET_LOCK
TOKEN_SET_ACTIVE
TOKEN_SET_NO_DUMP
TOKEN_SET_MIN
TOKEN_SET_MAX
TOKEN_IF
TOKEN_ELSE
TOKEN_ELSEIF
TOKEN_ENDIF
TOKEN_COND_EQ
TOKEN_COND_NE
TOKEN_COND_GTEQ
TOKEN_COND_LTEQ
TOKEN_COND_GT
TOKEN_COND_LT

---

Function Documentation

s32 lineIsEmpty

(

char *

line

)

Checks if line is empty (space, tab, # allowed

Returns:

1 if line is empty

0 if line is not empty

s32 MBNG_FILE_R_CheckRequest

(

void

)

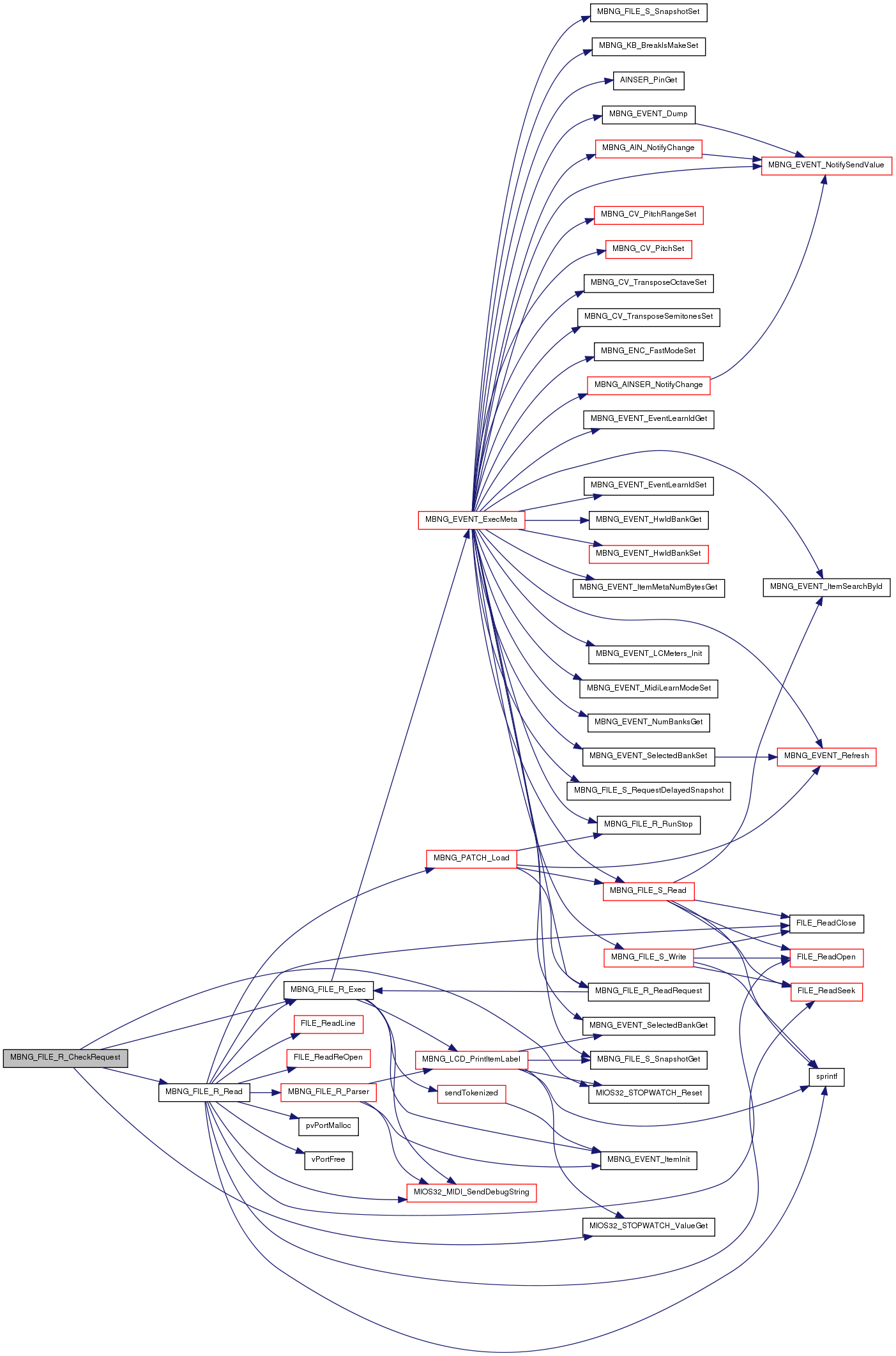

checks for a read request, should be called periodically each mS

Returns:

< 0 on errors

Here is the call graph for this function:

s32 MBNG_FILE_R_Exec	(	u8	cont_script,
		u8	determine_if_offsets
	)

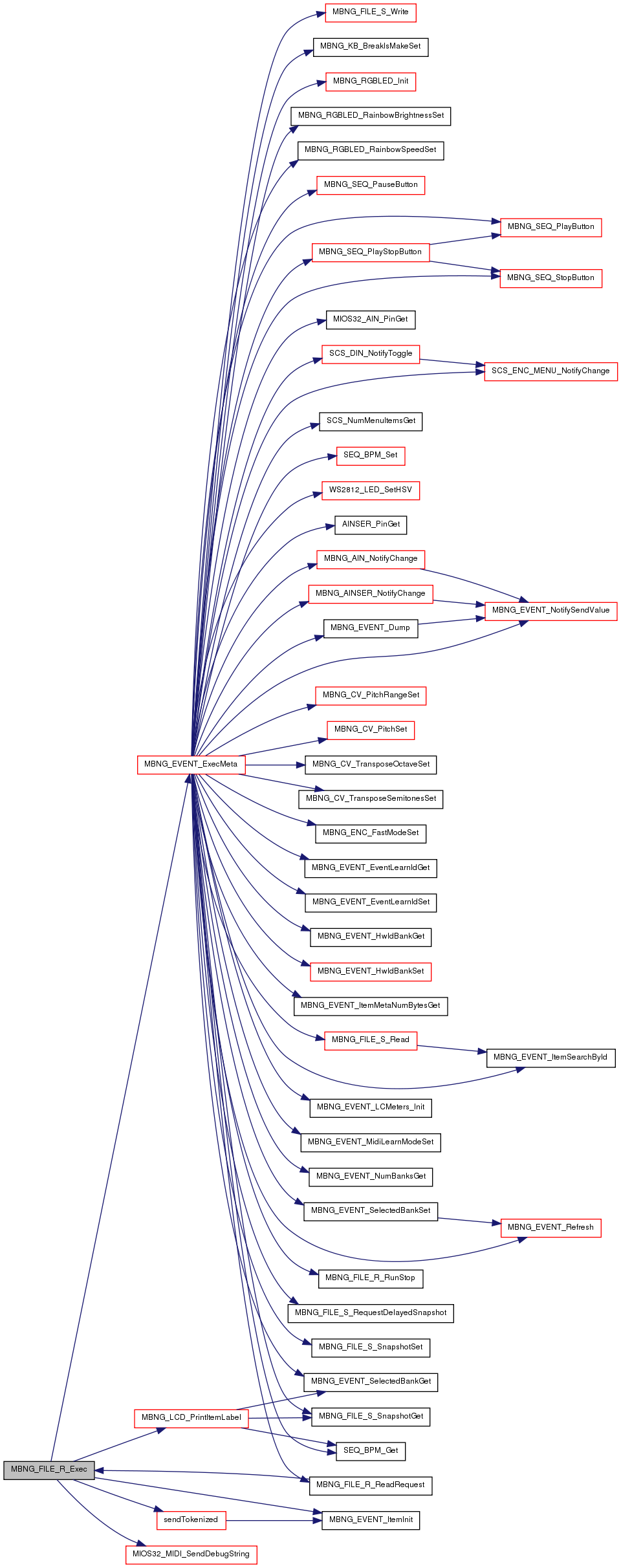

Executes the tokenized content of a NGR file

Returns:

< 0 on errors

Here is the call graph for this function:

s32 MBNG_FILE_R_Init

(

u32

mode

)

Initialisation

Here is the call graph for this function:

s32 MBNG_FILE_R_Load

(

char *

filename

)

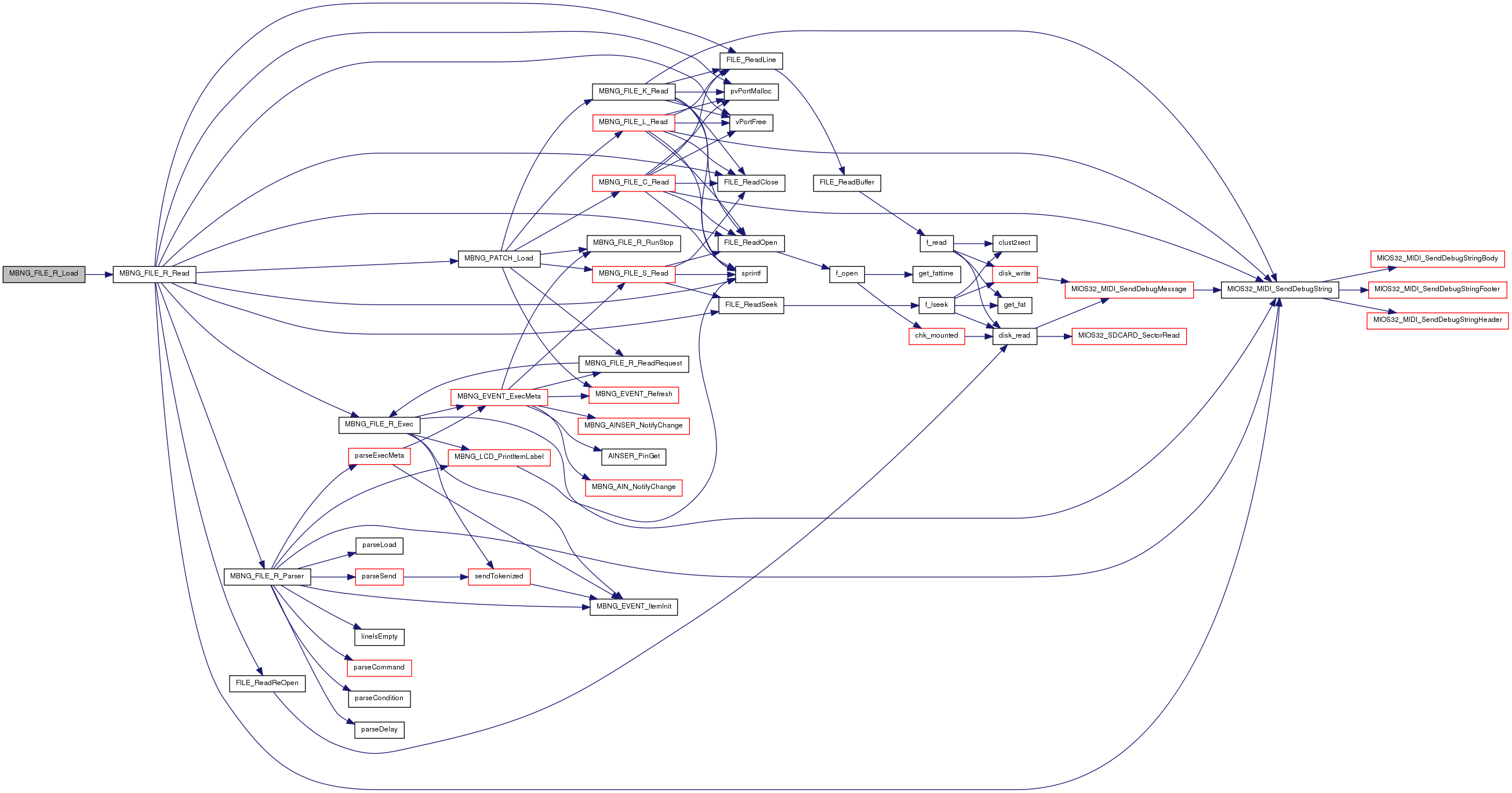

Loads script Called from MBNG_FILE_RheckSDCard() when the SD card has been connected

Returns:

< 0 on errors

Here is the call graph for this function:

s32 MBNG_FILE_R_Parser	(	u32	line,
		char *	line_buffer,
		u8 *	if_state,
		u8 *	nesting_level,
		char *	load_filename,
		u8	tokenize_req
	)

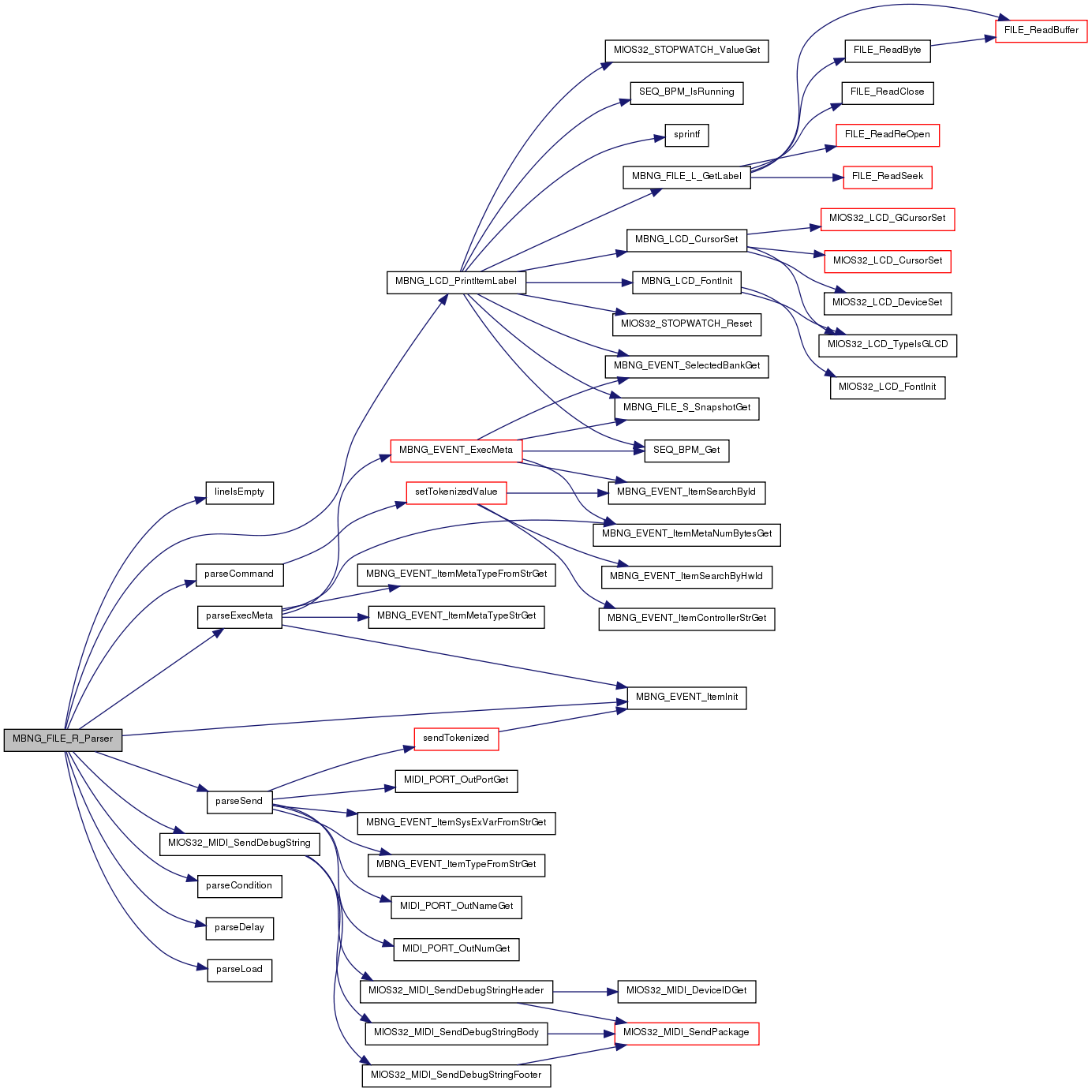

Parses a .NGR command line

Returns:

< 0 on errors (error codes are documented in mbng_file.h)

Here is the call graph for this function:

s32 MBNG_FILE_R_Read	(	char *	filename,
		u8	cont_script,
		u8	tokenize_req
	)

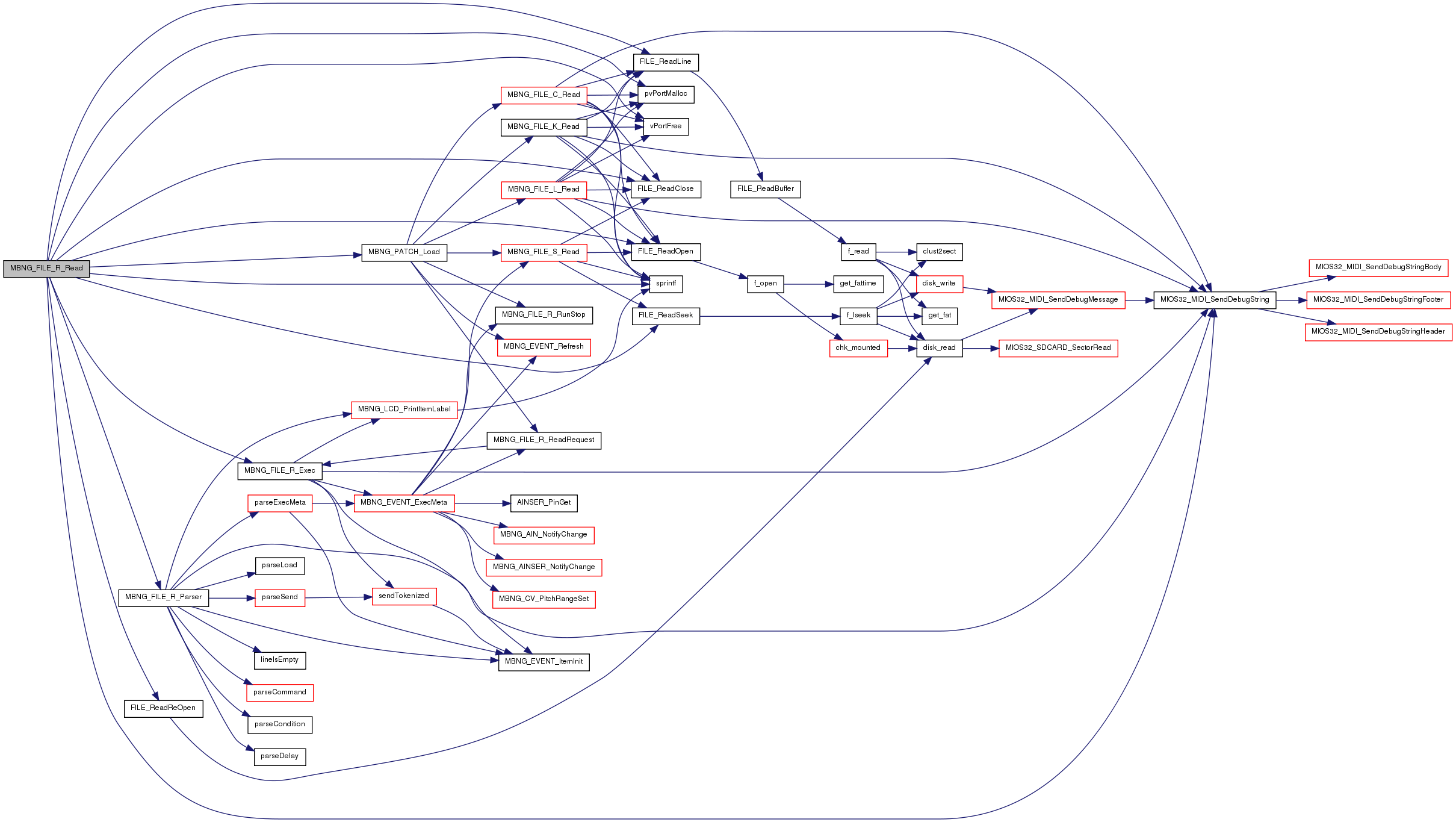

reads the config file content (again)

Returns:

< 0 on errors (error codes are documented in mbng_file.h)

Here is the call graph for this function:

s32 MBNG_FILE_R_ReadRequest	(	char *	filename,
		u8	section,
		s16	value,
		u8	notify_done
	)

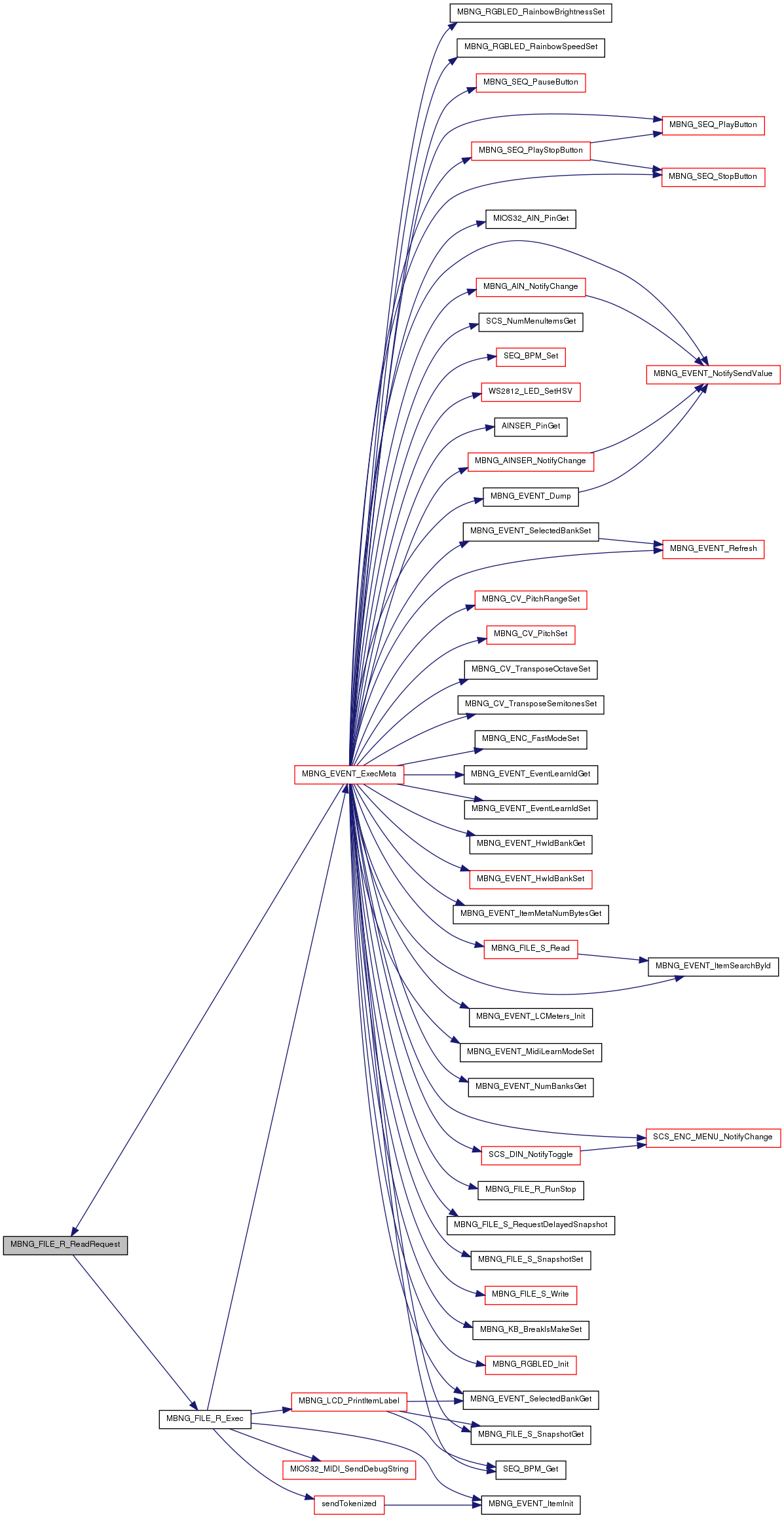

request to read the script file from run thread

Returns:

< 0 on errors

Here is the call graph for this function:

s32 MBNG_FILE_R_RunStop

(

void

)

Stops the execution of a currently running script

Returns:

< 0 on errors, 0 if script not running, 1 if script running (or requested)

s32 MBNG_FILE_R_TokenizedNgrGet

(

void

)

s32 MBNG_FILE_R_TokenizedNgrSet

(

u8

enable

)

Allows to enable/disable tokenized NGR

Here is the call graph for this function:

s32 MBNG_FILE_R_TokenMemPrint

(

void

)

Prints information about the token memory (used in terminal.c) returns < 0 on errors

Here is the call graph for this function:

s32 MBNG_FILE_R_Unload

(

void

)

Unloads script file Called from MBNG_FILE_RheckSDCard() when the SD card has been disconnected

Returns:

< 0 on errors

s32 MBNG_FILE_R_Valid

(

void

)

1 if current script file valid 0 if current script file not valid

s32 MBNG_FILE_R_VarSectionGet

(

)

s32 MBNG_FILE_R_VarSectionSet

(

u8

section

)

Set/Get functions for variables

Returns:

< 0 on errors

s32 MBNG_FILE_R_VarValueGet

(

)

s32 MBNG_FILE_R_VarValueSet

(

u8

value

)

s32 parseCommand	(	u32	line,
		char *	command,
		char **	brkt,
		u8	tokenize_req,
		ngr_token_t	command_token,
		s32(*)(mbng_event_item_t *item, s32 value)	exec_function,
		s32(*)(mbng_event_item_id_t id, s32 value)	exec_virtual_function
	)

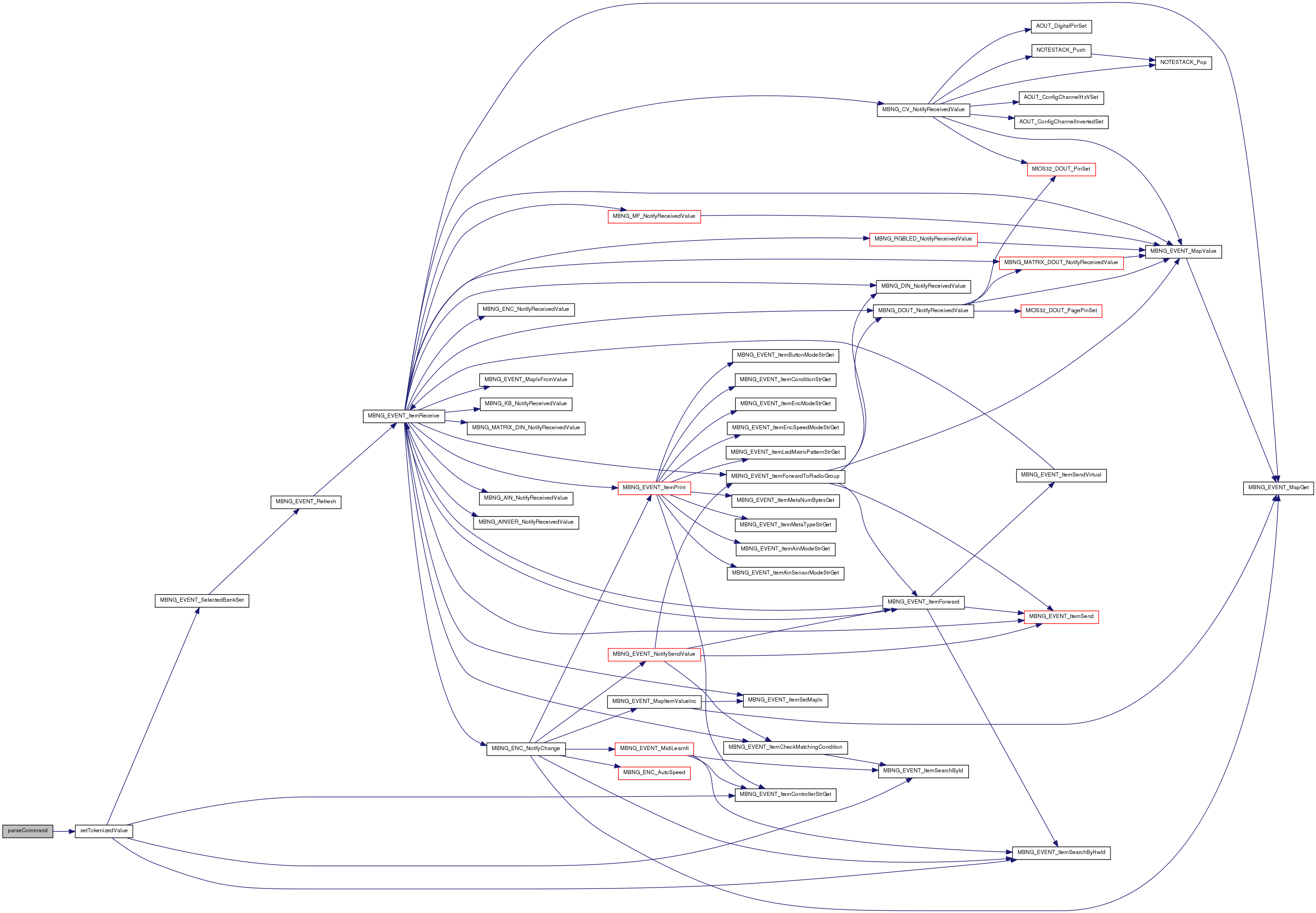

help function which parses a SET command

Here is the call graph for this function:

s32 parseCondition	(	u32	line,
		char *	command,
		char **	brkt,
		u8	tokenize_req
	)

help function which parses an IF condition

Returns:

>= 0 if condition is valid

< 0 if condition is invalid

s32 parseDelay	(	u32	line,
		char *	command,
		char **	brkt,
		u8	tokenize_req
	)

help function which parses a DELAY_MS command returns > 0 if a delay has been requested

s32 parseExecMeta	(	u32	line,
		char *	command,
		char **	brkt,
		u8	tokenize_req
	)

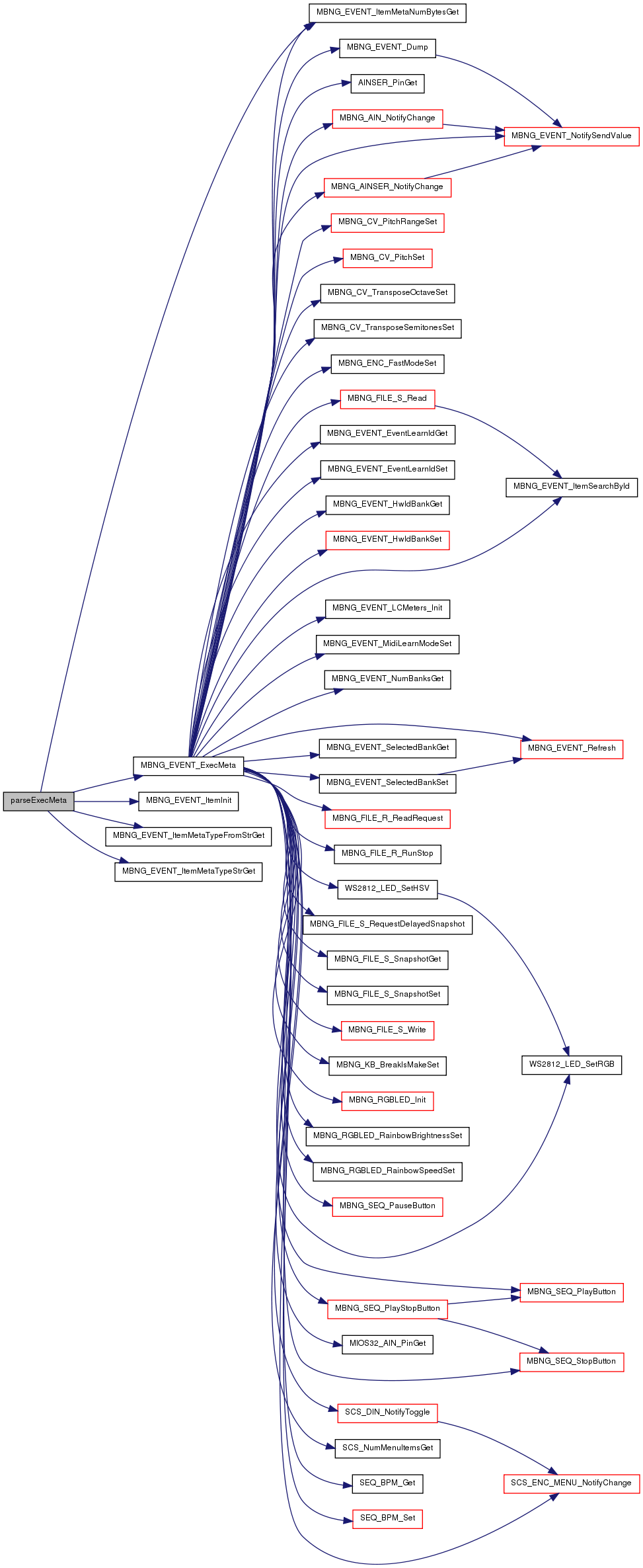

help function which parses a EXEC_META command

Here is the call graph for this function:

s32 parseLoad	(	u32	line,
		char *	command,
		char **	brkt,
		char *	load_filename,
		u8	tokenize_req
	)

help function which parses a LOAD command returns > 0 if a valid filename has been specified

s32 parseSend	(	u32	line,
		char *	command,
		char **	brkt,
		u8	tokenize_req
	)

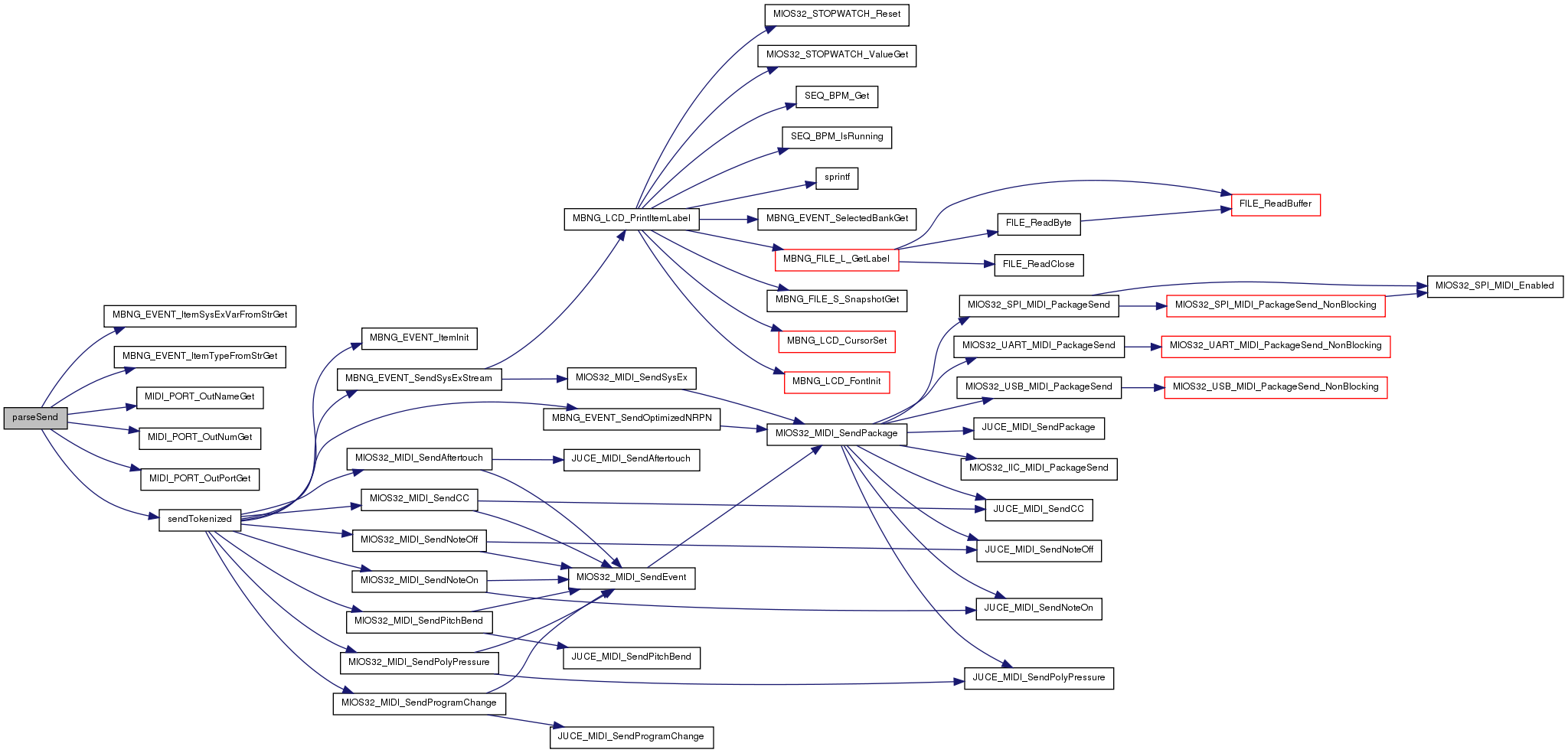

help function which parses a SEND command

Here is the call graph for this function:

s32 sendTokenized	(	mios32_midi_port_t	port,
		mbng_event_type_t	event_type,
		u8 *	stream,
		u32	stream_size
	)

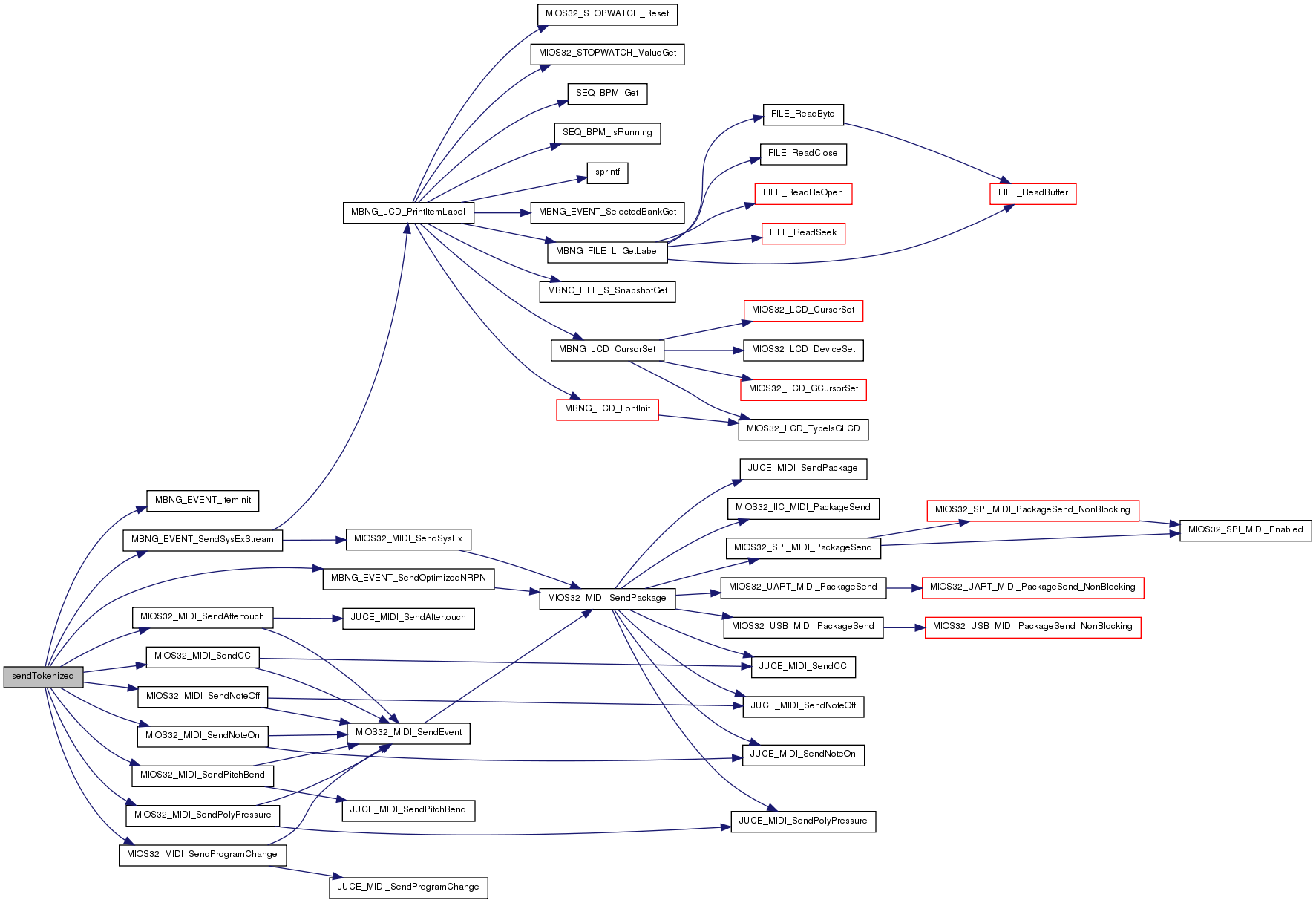

help function which executes a tokenized SEND command

Here is the call graph for this function:

s32 setTokenizedValue	(	ngr_token_t	token,
		u16	id,
		s32	value,
		s32(*)(mbng_event_item_t *item, s32 value)	exec_function,
		s32(*)(mbng_event_item_id_t id, s32 value)	exec_virtual_function
	)

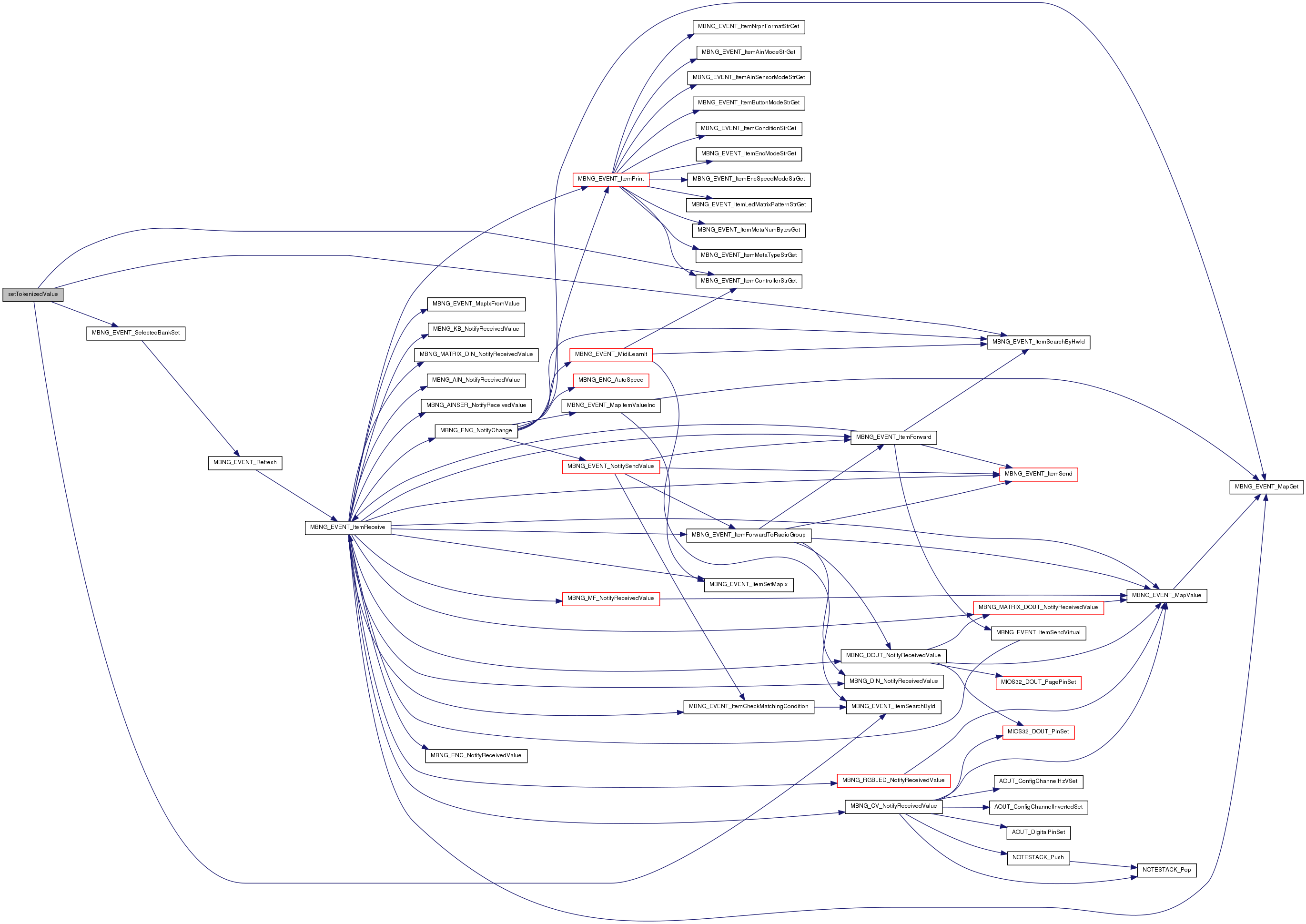

help function which SETs a value based on a token

Here is the call graph for this function:

---

Variable Documentation

char mbng_file_r_script_name[MBNG_FILE_R_FILENAME_LEN+1]

Global variables
