MBNG_PATCH

Functions
s32	MBNG_PATCH_Init (u32 mode)
s32	MBNG_PATCH_Load (char *filename)
s32	MBNG_PATCH_Store (char *filename)
Variables
mbng_patch_matrix_din_entry_t	mbng_patch_matrix_din [MBNG_PATCH_NUM_MATRIX_DIN]
mbng_patch_matrix_dout_entry_t	mbng_patch_matrix_dout [MBNG_PATCH_NUM_MATRIX_DOUT]
mbng_patch_ain_entry_t	mbng_patch_ain
mbng_patch_ainser_entry_t	mbng_patch_ainser [MBNG_PATCH_NUM_AINSER_MODULES]
mbng_patch_mf_entry_t	mbng_patch_mf [MBNG_PATCH_NUM_MF_MODULES]
char	mbng_patch_aout_spi_rc_pin
char	mbng_patch_max72xx_spi_rc_pin
mbng_patch_scs_t	mbng_patch_scs
mbng_patch_cfg_t	mbng_patch_cfg

---

Detailed Description

Patch Layer for MIDIbox NG

---

Function Documentation

s32 MBNG_PATCH_Init

(

u32

mode

)

This function initializes the patch structure

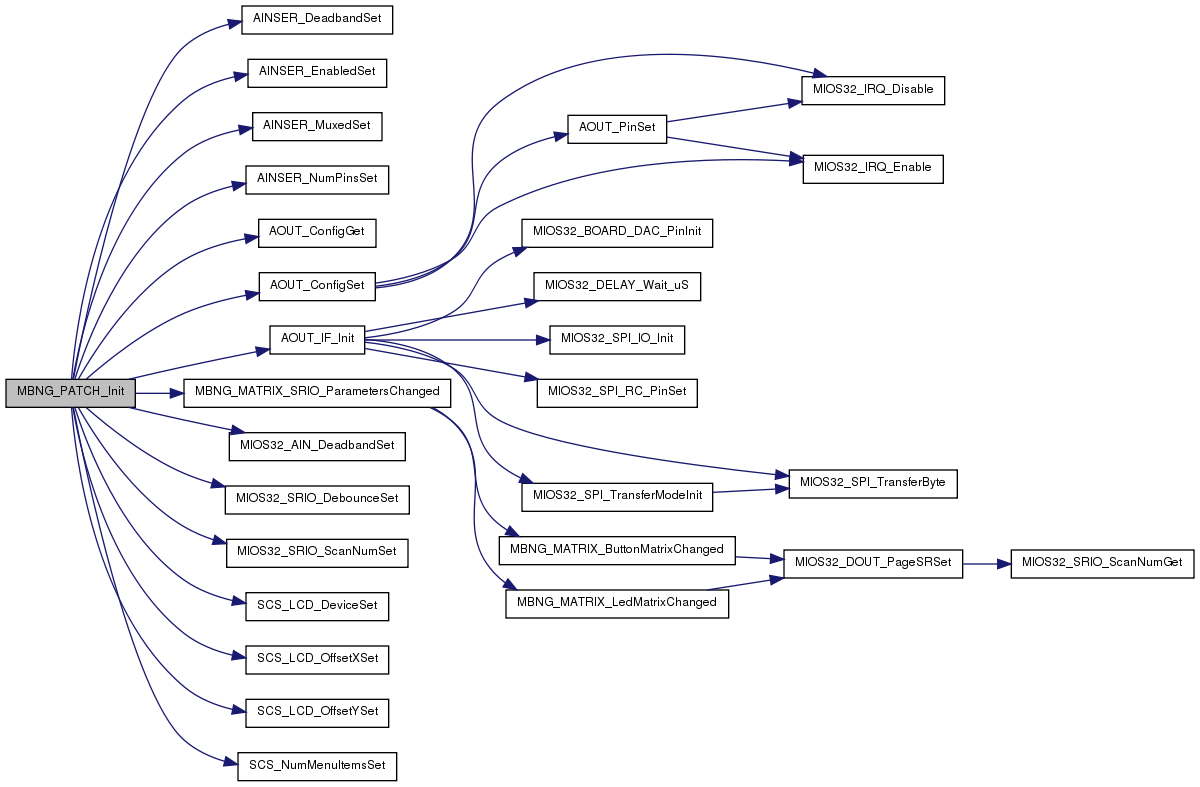

Here is the call graph for this function:

s32 MBNG_PATCH_Load

(

char *

filename

)

This function loads the patch from SD Card

Returns:

!= 0 if Load failed

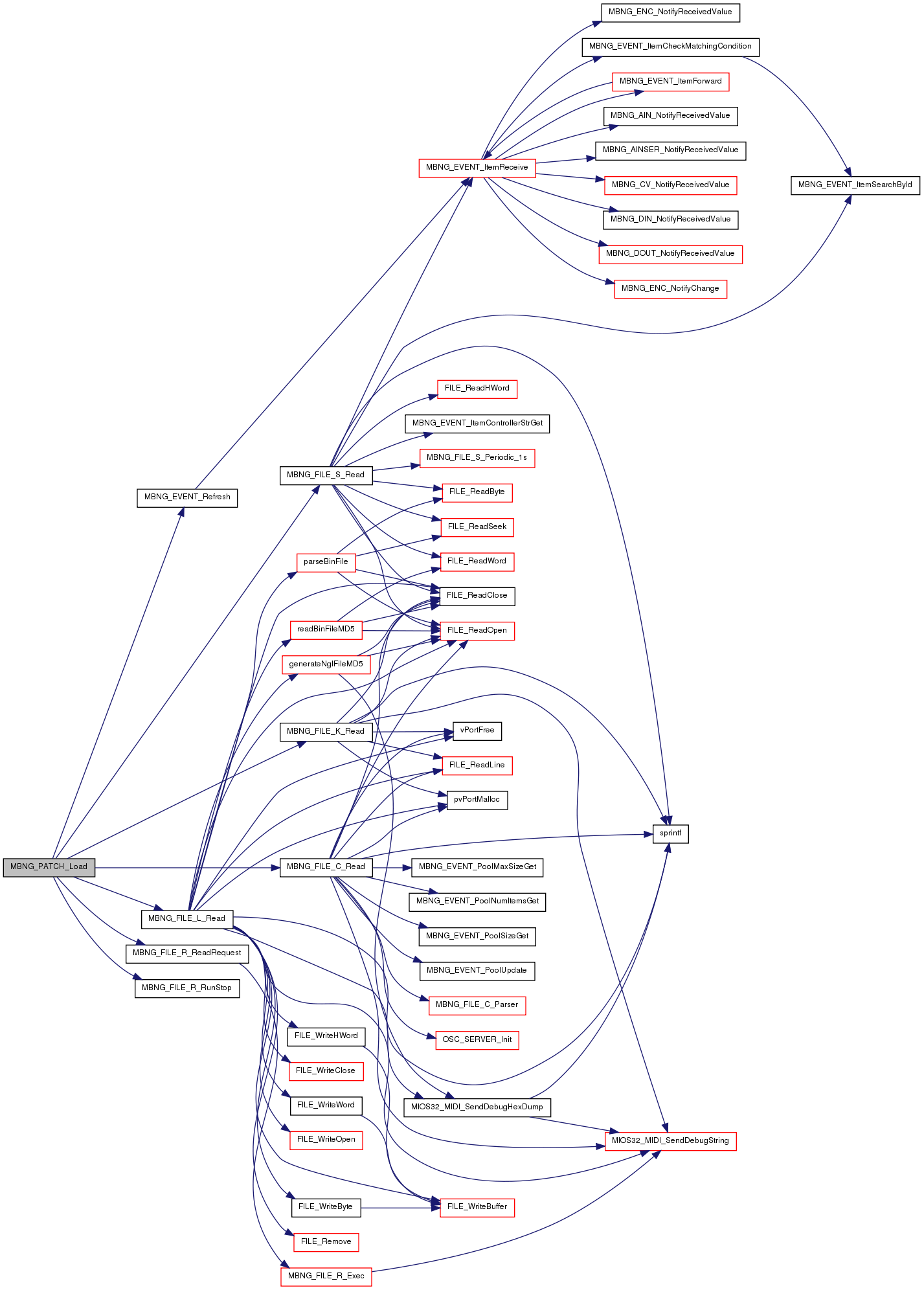

Here is the call graph for this function:

s32 MBNG_PATCH_Store

(

char *

filename

)

This function stores the patch on SD Card

Returns:

!= 0 if Store failed

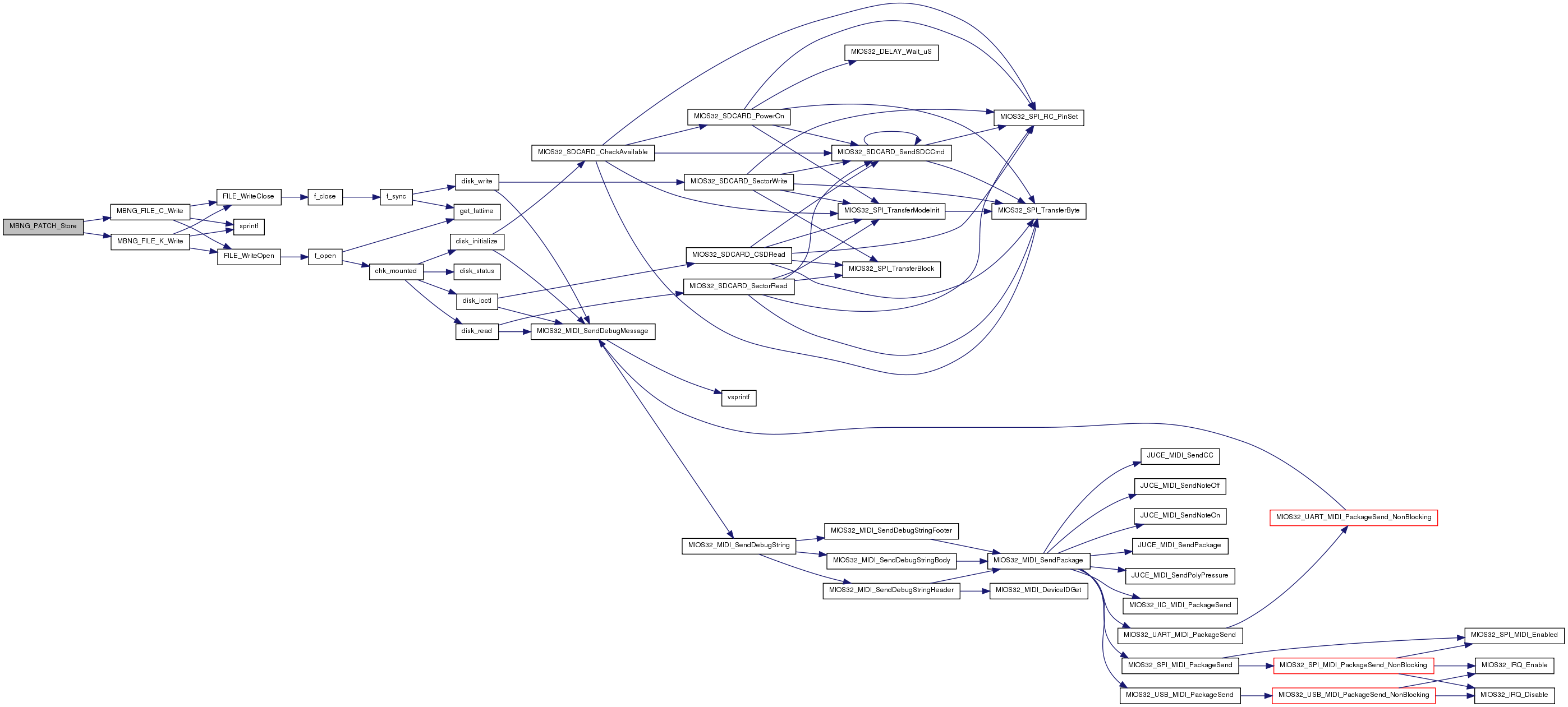

Here is the call graph for this function:

---

Variable Documentation

mbng_patch_ain_entry_t mbng_patch_ain

mbng_patch_ainser_entry_t mbng_patch_ainser[MBNG_PATCH_NUM_AINSER_MODULES]

char mbng_patch_aout_spi_rc_pin

mbng_patch_cfg_t mbng_patch_cfg

mbng_patch_matrix_din_entry_t mbng_patch_matrix_din[MBNG_PATCH_NUM_MATRIX_DIN]

Include files Preset patch

mbng_patch_matrix_dout_entry_t mbng_patch_matrix_dout[MBNG_PATCH_NUM_MATRIX_DOUT]

char mbng_patch_max72xx_spi_rc_pin

mbng_patch_mf_entry_t mbng_patch_mf[MBNG_PATCH_NUM_MF_MODULES]

mbng_patch_scs_t mbng_patch_scs
