/home/midibox/svn_snapshot/mios32/trunk/modules/uip/mios32/LPC17xx/lpc17xx_emac.h File Reference

#include "lpc_types.h"
#include "LPC17xx.h"
#include "target.h"

Defines
#define	MAC1_REC_EN   0x00000001
#define	MAC1_PASS_ALL   0x00000002
#define	MAC1_RX_FLOWC   0x00000004
#define	MAC1_TX_FLOWC   0x00000008
#define	MAC1_LOOPB   0x00000010
#define	MAC1_RES_TX   0x00000100
#define	MAC1_RES_MCS_TX   0x00000200
#define	MAC1_RES_RX   0x00000400
#define	MAC1_RES_MCS_RX   0x00000800
#define	MAC1_SIM_RES   0x00004000
#define	MAC1_SOFT_RES   0x00008000
#define	MAC2_FULL_DUP   0x00000001
#define	MAC2_FRM_LEN_CHK   0x00000002
#define	MAC2_HUGE_FRM_EN   0x00000004
#define	MAC2_DLY_CRC   0x00000008
#define	MAC2_CRC_EN   0x00000010
#define	MAC2_PAD_EN   0x00000020
#define	MAC2_VLAN_PAD_EN   0x00000040
#define	MAC2_ADET_PAD_EN   0x00000080
#define	MAC2_PPREAM_ENF   0x00000100
#define	MAC2_LPREAM_ENF   0x00000200
#define	MAC2_NO_BACKOFF   0x00001000
#define	MAC2_BACK_PRESSURE   0x00002000
#define	MAC2_EXCESS_DEF   0x00004000
#define	IPGT_FULL_DUP   0x00000015
#define	IPGT_HALF_DUP   0x00000012
#define	IPGR_DEF   0x00000012
#define	CLRT_DEF   0x0000370F
#define	SUPP_SPEED   0x00000100
#define	SUPP_RES_RMII   0x00000800
#define	TEST_SHCUT_PQUANTA   0x00000001
#define	TEST_TST_PAUSE   0x00000002
#define	TEST_TST_BACKP   0x00000004
#define	MCFG_SCAN_INC   0x00000001
#define	MCFG_SUPP_PREAM   0x00000002
#define	MCFG_CLK_SEL   0x0000001C
#define	MCFG_RES_MII   0x00008000
#define	MCFG_CLK_DIV4   0x00000000
#define	MCFG_CLK_DIV6   0x00000008
#define	MCFG_CLK_DIV8   0x0000000C
#define	MCFG_CLK_DIV10   0x00000010
#define	MCFG_CLK_DIV14   0x00000014
#define	MCFG_CLK_DIV20   0x00000018
#define	MCFG_CLK_DIV28   0x0000001C
#define	MCFG_CLK_DIV36   0x00000020
#define	MCFG_CLK_DIV64   0x0000003c
#define	MCMD_READ   0x00000001
#define	MCMD_SCAN   0x00000002
#define	MII_WR_TOUT   0x00050000
#define	MII_RD_TOUT   0x00050000
#define	MADR_REG_ADR   0x0000001F
#define	MADR_PHY_ADR   0x00001F00
#define	MIND_BUSY   0x00000001
#define	MIND_SCAN   0x00000002
#define	MIND_NOT_VAL   0x00000004
#define	MIND_MII_LINK_FAIL   0x00000008
#define	CR_RX_EN   0x00000001
#define	CR_TX_EN   0x00000002
#define	CR_REG_RES   0x00000008
#define	CR_TX_RES   0x00000010
#define	CR_RX_RES   0x00000020
#define	CR_PASS_RUNT_FRM   0x00000040
#define	CR_PASS_RX_FILT   0x00000080
#define	CR_TX_FLOW_CTRL   0x00000100
#define	CR_RMII   0x00000200
#define	CR_FULL_DUP   0x00000400
#define	SR_RX_EN   0x00000001
#define	SR_TX_EN   0x00000002
#define	TSV0_CRC_ERR   0x00000001
#define	TSV0_LEN_CHKERR   0x00000002
#define	TSV0_LEN_OUTRNG   0x00000004
#define	TSV0_DONE   0x00000008
#define	TSV0_MCAST   0x00000010
#define	TSV0_BCAST   0x00000020
#define	TSV0_PKT_DEFER   0x00000040
#define	TSV0_EXC_DEFER   0x00000080
#define	TSV0_EXC_COLL   0x00000100
#define	TSV0_LATE_COLL   0x00000200
#define	TSV0_GIANT   0x00000400
#define	TSV0_UNDERRUN   0x00000800
#define	TSV0_BYTES   0x0FFFF000
#define	TSV0_CTRL_FRAME   0x10000000
#define	TSV0_PAUSE   0x20000000
#define	TSV0_BACK_PRESS   0x40000000
#define	TSV0_VLAN   0x80000000
#define	TSV1_BYTE_CNT   0x0000FFFF
#define	TSV1_COLL_CNT   0x000F0000
#define	RSV_BYTE_CNT   0x0000FFFF
#define	RSV_PKT_IGNORED   0x00010000
#define	RSV_RXDV_SEEN   0x00020000
#define	RSV_CARR_SEEN   0x00040000
#define	RSV_REC_CODEV   0x00080000
#define	RSV_CRC_ERR   0x00100000
#define	RSV_LEN_CHKERR   0x00200000
#define	RSV_LEN_OUTRNG   0x00400000
#define	RSV_REC_OK   0x00800000
#define	RSV_MCAST   0x01000000
#define	RSV_BCAST   0x02000000
#define	RSV_DRIB_NIBB   0x04000000
#define	RSV_CTRL_FRAME   0x08000000
#define	RSV_PAUSE   0x10000000
#define	RSV_UNSUPP_OPC   0x20000000
#define	RSV_VLAN   0x40000000
#define	FCC_MIRR_CNT   0x0000FFFF
#define	FCC_PAUSE_TIM   0xFFFF0000
#define	FCS_MIRR_CNT   0x0000FFFF
#define	RFC_UCAST_EN   0x00000001
#define	RFC_BCAST_EN   0x00000002
#define	RFC_MCAST_EN   0x00000004
#define	RFC_UCAST_HASH_EN   0x00000008
#define	RFC_MCAST_HASH_EN   0x00000010
#define	RFC_PERFECT_EN   0x00000020
#define	RFC_MAGP_WOL_EN   0x00001000
#define	RFC_PFILT_WOL_EN   0x00002000
#define	WOL_UCAST   0x00000001
#define	WOL_BCAST   0x00000002
#define	WOL_MCAST   0x00000004
#define	WOL_UCAST_HASH   0x00000008
#define	WOL_MCAST_HASH   0x00000010
#define	WOL_PERFECT   0x00000020
#define	WOL_RX_FILTER   0x00000080
#define	WOL_MAG_PACKET   0x00000100
#define	INT_RX_OVERRUN   0x00000001
#define	INT_RX_ERR   0x00000002
#define	INT_RX_FIN   0x00000004
#define	INT_RX_DONE   0x00000008
#define	INT_TX_UNDERRUN   0x00000010
#define	INT_TX_ERR   0x00000020
#define	INT_TX_FIN   0x00000040
#define	INT_TX_DONE   0x00000080
#define	INT_SOFT_INT   0x00001000
#define	INT_WAKEUP   0x00002000
#define	PD_POWER_DOWN   0x80000000
#define	RCTRL_SIZE   0x000007FF
#define	RCTRL_INT   0x80000000
#define	RHASH_SA   0x000001FF
#define	RHASH_DA   0x001FF000
#define	RINFO_SIZE   0x000007FF
#define	RINFO_CTRL_FRAME   0x00040000
#define	RINFO_VLAN   0x00080000
#define	RINFO_FAIL_FILT   0x00100000
#define	RINFO_MCAST   0x00200000
#define	RINFO_BCAST   0x00400000
#define	RINFO_CRC_ERR   0x00800000
#define	RINFO_SYM_ERR   0x01000000
#define	RINFO_LEN_ERR   0x02000000
#define	RINFO_RANGE_ERR   0x04000000
#define	RINFO_ALIGN_ERR   0x08000000
#define	RINFO_OVERRUN   0x10000000
#define	RINFO_NO_DESCR   0x20000000
#define	RINFO_LAST_FLAG   0x40000000
#define	RINFO_ERR   0x80000000
#define	RINFO_ERR_MASK
#define	TCTRL_SIZE   0x000007FF
#define	TCTRL_OVERRIDE   0x04000000
#define	TCTRL_HUGE   0x08000000
#define	TCTRL_PAD   0x10000000
#define	TCTRL_CRC   0x20000000
#define	TCTRL_LAST   0x40000000
#define	TCTRL_INT   0x80000000
#define	TINFO_COL_CNT   0x01E00000
#define	TINFO_DEFER   0x02000000
#define	TINFO_EXCESS_DEF   0x04000000
#define	TINFO_EXCESS_COL   0x08000000
#define	TINFO_LATE_COL   0x10000000
#define	TINFO_UNDERRUN   0x20000000
#define	TINFO_NO_DESCR   0x40000000
#define	TINFO_ERR   0x80000000
#define	OLD_EMAC_MODULE_ID   0x39022000
Functions
BOOL_32	EMAC_Init (uint8_t *mac_addr)
BOOL_32	EMAC_Init2 (uint8_t *mac_addr)
BOOL_32	EMAC_Init3 (uint8_t *mac_addr)
BOOL_32	EMAC_CheckLink (void)
UNS_32	EMAC_ReadPacket (void *pPacket)
BOOL_32	EMAC_SendPacket (void *pPacket, UNS_32 size, void *pPacket2, UNS_32 size2)

---

Define Documentation

#define CLRT_DEF   0x0000370F

#define CR_FULL_DUP   0x00000400

#define CR_PASS_RUNT_FRM   0x00000040

#define CR_PASS_RX_FILT   0x00000080

#define CR_REG_RES   0x00000008

#define CR_RMII   0x00000200

#define CR_RX_EN   0x00000001

#define CR_RX_RES   0x00000020

#define CR_TX_EN   0x00000002

#define CR_TX_FLOW_CTRL   0x00000100

#define CR_TX_RES   0x00000010

#define FCC_MIRR_CNT   0x0000FFFF

#define FCC_PAUSE_TIM   0xFFFF0000

#define FCS_MIRR_CNT   0x0000FFFF

#define INT_RX_DONE   0x00000008

#define INT_RX_ERR   0x00000002

#define INT_RX_FIN   0x00000004

#define INT_RX_OVERRUN   0x00000001

#define INT_SOFT_INT   0x00001000

#define INT_TX_DONE   0x00000080

#define INT_TX_ERR   0x00000020

#define INT_TX_FIN   0x00000040

#define INT_TX_UNDERRUN   0x00000010

#define INT_WAKEUP   0x00002000

#define IPGR_DEF   0x00000012

#define IPGT_FULL_DUP   0x00000015

#define IPGT_HALF_DUP   0x00000012

#define MAC1_LOOPB   0x00000010

#define MAC1_PASS_ALL   0x00000002

#define MAC1_REC_EN   0x00000001

#define MAC1_RES_MCS_RX   0x00000800

#define MAC1_RES_MCS_TX   0x00000200

#define MAC1_RES_RX   0x00000400

#define MAC1_RES_TX   0x00000100

#define MAC1_RX_FLOWC   0x00000004

#define MAC1_SIM_RES   0x00004000

#define MAC1_SOFT_RES   0x00008000

#define MAC1_TX_FLOWC   0x00000008

#define MAC2_ADET_PAD_EN   0x00000080

#define MAC2_BACK_PRESSURE   0x00002000

#define MAC2_CRC_EN   0x00000010

#define MAC2_DLY_CRC   0x00000008

#define MAC2_EXCESS_DEF   0x00004000

#define MAC2_FRM_LEN_CHK   0x00000002

#define MAC2_FULL_DUP   0x00000001

#define MAC2_HUGE_FRM_EN   0x00000004

#define MAC2_LPREAM_ENF   0x00000200

#define MAC2_NO_BACKOFF   0x00001000

#define MAC2_PAD_EN   0x00000020

#define MAC2_PPREAM_ENF   0x00000100

#define MAC2_VLAN_PAD_EN   0x00000040

#define MADR_PHY_ADR   0x00001F00

#define MADR_REG_ADR   0x0000001F

#define MCFG_CLK_DIV10   0x00000010

#define MCFG_CLK_DIV14   0x00000014

#define MCFG_CLK_DIV20   0x00000018

#define MCFG_CLK_DIV28   0x0000001C

#define MCFG_CLK_DIV36   0x00000020

#define MCFG_CLK_DIV4   0x00000000

#define MCFG_CLK_DIV6   0x00000008

#define MCFG_CLK_DIV64   0x0000003c

#define MCFG_CLK_DIV8   0x0000000C

#define MCFG_CLK_SEL   0x0000001C

#define MCFG_RES_MII   0x00008000

#define MCFG_SCAN_INC   0x00000001

#define MCFG_SUPP_PREAM   0x00000002

#define MCMD_READ   0x00000001

#define MCMD_SCAN   0x00000002

#define MII_RD_TOUT   0x00050000

#define MII_WR_TOUT   0x00050000

#define MIND_BUSY   0x00000001

#define MIND_MII_LINK_FAIL   0x00000008

#define MIND_NOT_VAL   0x00000004

#define MIND_SCAN   0x00000002

#define OLD_EMAC_MODULE_ID   0x39022000

#define PD_POWER_DOWN   0x80000000

#define RCTRL_INT   0x80000000

#define RCTRL_SIZE   0x000007FF

#define RFC_BCAST_EN   0x00000002

#define RFC_MAGP_WOL_EN   0x00001000

#define RFC_MCAST_EN   0x00000004

#define RFC_MCAST_HASH_EN   0x00000010

#define RFC_PERFECT_EN   0x00000020

#define RFC_PFILT_WOL_EN   0x00002000

#define RFC_UCAST_EN   0x00000001

#define RFC_UCAST_HASH_EN   0x00000008

#define RHASH_DA   0x001FF000

#define RHASH_SA   0x000001FF

#define RINFO_ALIGN_ERR   0x08000000

#define RINFO_BCAST   0x00400000

#define RINFO_CRC_ERR   0x00800000

#define RINFO_CTRL_FRAME   0x00040000

#define RINFO_ERR   0x80000000

#define RINFO_ERR_MASK

Value:

(RINFO_FAIL_FILT | RINFO_CRC_ERR   | RINFO_SYM_ERR | \
                            RINFO_LEN_ERR   | RINFO_ALIGN_ERR | RINFO_OVERRUN)

#define RINFO_FAIL_FILT   0x00100000

#define RINFO_LAST_FLAG   0x40000000

#define RINFO_LEN_ERR   0x02000000

#define RINFO_MCAST   0x00200000

#define RINFO_NO_DESCR   0x20000000

#define RINFO_OVERRUN   0x10000000

#define RINFO_RANGE_ERR   0x04000000

#define RINFO_SIZE   0x000007FF

#define RINFO_SYM_ERR   0x01000000

#define RINFO_VLAN   0x00080000

#define RSV_BCAST   0x02000000

#define RSV_BYTE_CNT   0x0000FFFF

#define RSV_CARR_SEEN   0x00040000

#define RSV_CRC_ERR   0x00100000

#define RSV_CTRL_FRAME   0x08000000

#define RSV_DRIB_NIBB   0x04000000

#define RSV_LEN_CHKERR   0x00200000

#define RSV_LEN_OUTRNG   0x00400000

#define RSV_MCAST   0x01000000

#define RSV_PAUSE   0x10000000

#define RSV_PKT_IGNORED   0x00010000

#define RSV_REC_CODEV   0x00080000

#define RSV_REC_OK   0x00800000

#define RSV_RXDV_SEEN   0x00020000

#define RSV_UNSUPP_OPC   0x20000000

#define RSV_VLAN   0x40000000

#define SR_RX_EN   0x00000001

#define SR_TX_EN   0x00000002

#define SUPP_RES_RMII   0x00000800

#define SUPP_SPEED   0x00000100

#define TCTRL_CRC   0x20000000

#define TCTRL_HUGE   0x08000000

#define TCTRL_INT   0x80000000

#define TCTRL_LAST   0x40000000

#define TCTRL_OVERRIDE   0x04000000

#define TCTRL_PAD   0x10000000

#define TCTRL_SIZE   0x000007FF

#define TEST_SHCUT_PQUANTA   0x00000001

#define TEST_TST_BACKP   0x00000004

#define TEST_TST_PAUSE   0x00000002

#define TINFO_COL_CNT   0x01E00000

#define TINFO_DEFER   0x02000000

#define TINFO_ERR   0x80000000

#define TINFO_EXCESS_COL   0x08000000

#define TINFO_EXCESS_DEF   0x04000000

#define TINFO_LATE_COL   0x10000000

#define TINFO_NO_DESCR   0x40000000

#define TINFO_UNDERRUN   0x20000000

#define TSV0_BACK_PRESS   0x40000000

#define TSV0_BCAST   0x00000020

#define TSV0_BYTES   0x0FFFF000

#define TSV0_CRC_ERR   0x00000001

#define TSV0_CTRL_FRAME   0x10000000

#define TSV0_DONE   0x00000008

#define TSV0_EXC_COLL   0x00000100

#define TSV0_EXC_DEFER   0x00000080

#define TSV0_GIANT   0x00000400

#define TSV0_LATE_COLL   0x00000200

#define TSV0_LEN_CHKERR   0x00000002

#define TSV0_LEN_OUTRNG   0x00000004

#define TSV0_MCAST   0x00000010

#define TSV0_PAUSE   0x20000000

#define TSV0_PKT_DEFER   0x00000040

#define TSV0_UNDERRUN   0x00000800

#define TSV0_VLAN   0x80000000

#define TSV1_BYTE_CNT   0x0000FFFF

#define TSV1_COLL_CNT   0x000F0000

#define WOL_BCAST   0x00000002

#define WOL_MAG_PACKET   0x00000100

#define WOL_MCAST   0x00000004

#define WOL_MCAST_HASH   0x00000010

#define WOL_PERFECT   0x00000020

#define WOL_RX_FILTER   0x00000080

#define WOL_UCAST   0x00000001

#define WOL_UCAST_HASH   0x00000008

---

Function Documentation

BOOL_32 EMAC_CheckLink

(

void

)

BOOL_32 EMAC_Init

(

uint8_t *

mac_addr

)

BOOL_32 EMAC_Init2

(

uint8_t *

mac_addr

)

BOOL_32 EMAC_Init3

(

uint8_t *

mac_addr

)

UNS_32 EMAC_ReadPacket

(

void *

pPacket

)

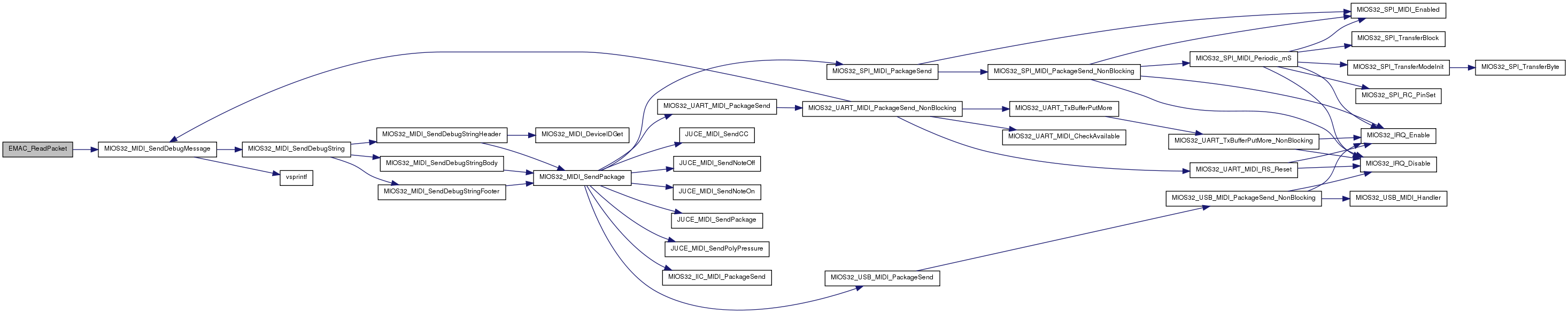

Here is the call graph for this function:

BOOL_32 EMAC_SendPacket	(	void *	pPacket,
		UNS_32	size,
		void *	pPacket2,
		UNS_32	size2
	)
