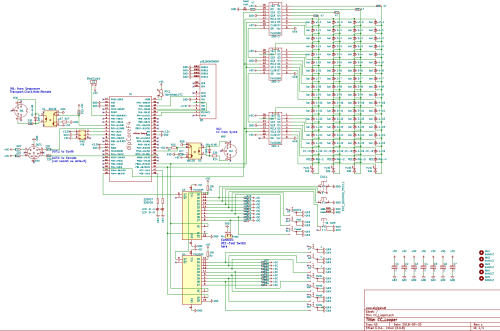

====== CC-Looper ====== CC-Automation\\ Midi Control Change MotionSequencer - for Synthesizer with LEDRINGS\\ {{:phatline:CCL-pcb-foto.jpg?500|}}\\ ===== Features ===== * 4Midichannels @ each 512Steps X 32th-looprate X 128 CCs \\ * only a few of the 128CC should be used @ once - 4x128xCCs @ 32th is Midi Data MESS and µC Death\\ * maybe only 256Steps, will depend on RAM.... RealWorld will tell\\ * each TRACK has a shared Track length for all its 128 CCs\\ * Copy, Paste, Clear: for the all 128CCs/or single CC\\ * There is no EDIT, you can clear a CC or Track and make a new Take\\ * ProgramChange Load and Store on microSD-Card, Load and Store are CC-Commands, so you can remote the device\\ * The Sequencer can be set to Tact Systems: 3/4 4/4 5/4 7/4 9/4 11/4 13/4 ====== Hardware Requirements ====== **External Requirement:**(for example) * You need a Synth with LEDRINGs - otherwise you have no Feedback and Overview - NordRack III is such one\\ * Melody/Clock Source with ProgramChange-Output: [[mididocs:midibox_seq_v4l]] oops that dont do PC...\\ * Melody/Clock/CC Destination: NordRack III or any other Synth with Visual Feedback off CC-States\\ **Midibox:**\\ * [[http://wiki.midibox.org/doku.php?id=dipcoref4|dipcoref4]] - this is the µC Brain for the Looper\\ * [[http://wiki.midibox.org/doku.php?id=cc-looper|cc-looper]] - this is the UI-PCB of the Looper\\ * no other PCBs needet * µSD-Card, formated with FAT32\\ * Soldering Iron - with a Dip that can Handle SMD-Parts, Wires, solder Paste for the µC....\\ * USB Power Supply with µUSB-Connector\\ ==== Set ==== == Cabeling == Midi IN1 >>> MelodySequencer and Remote Devices\\ Midi IN2 >>> Midi Out from Synthesizer - which sends out the Moved CCs\\ Midi OUT >>> Midi IN of Synthesizer input (Automated CCs merged with mididata from Midi IN1)\\ ====== Software ====== ===== Firmware ===== FIXME Firmware not made yet ====== Building ====== {{:phatline:CCL-sheme.png?500|}}\\ {{:phatline:CCL-pcb.png?500|}}\\ {{:phatline:CCL-pcb-3dfront.png?500|}}\\ ==== Frontpanel ==== FIXME - a clear Acrylic Frontplate, with NO Engravings, UI-Labeling is viewable from PCB\\ ==== Case ==== ===== BOM ===== ===== To Do ===== alot, beta test, programming the firmware, housing\\ ===== Resources ===== its based on a mixture off: * [[http://wiki.midibox.org/doku.php?id=msq-cc-lre|msq-cc-lre]] * [[http://wiki.midibox.org/doku.php?id=msq-cc-bcr|msq-cc-bcr]] but its a complete new design, and firmware ====== Community users working on it ====== * **[[Phatline]]** = Programming, Documentation...\\ Just let a Private message on the forum to user already involved.\\ I have 10 ProtoBoards here - i test one, and if it works, i can share them for Beta Testing-if you pay the postage\\
