DAW-BTN - Board



It is one part to build a DAW-controller, it can be used multiple times
it needs external din and dout modules (doutx4,dinx4 for example)

Here are the gerberfiles for production - i made it withJLCPCB
daw-btn-gerber.zip

They are not testet at the moment, i am waiting for the PCBs…

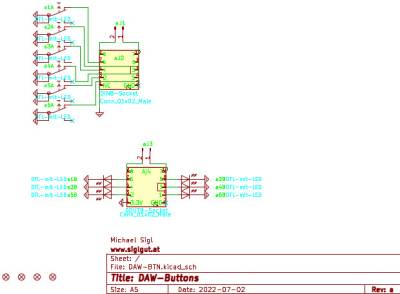

Shematic

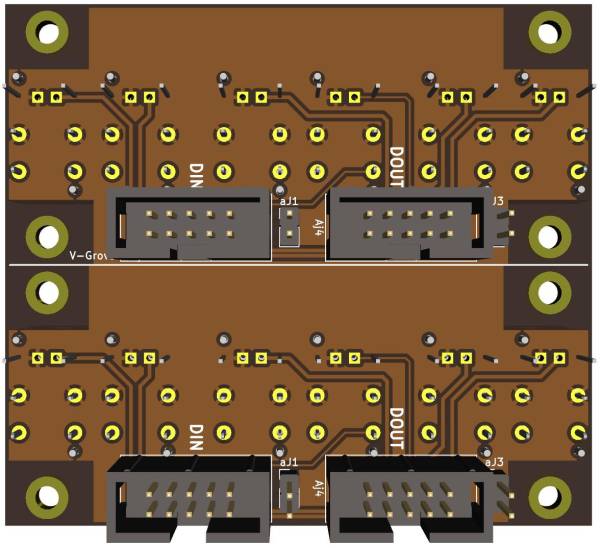

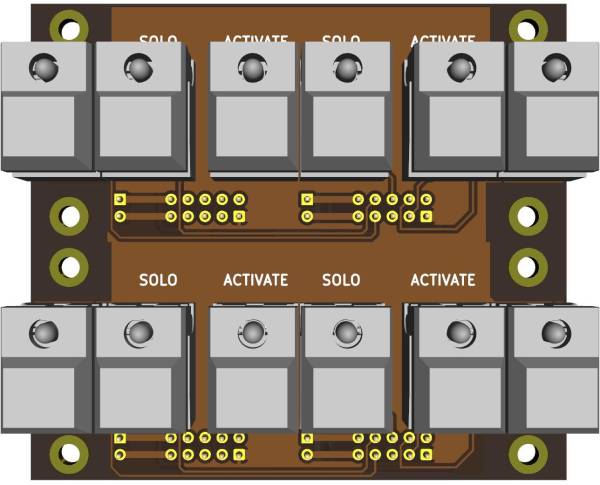

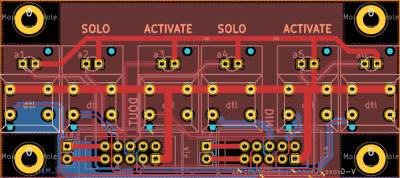

Building and BOM


To Do

Nothing > this works… because i wanted it cheap as possible i only make 3 channelstrip-buttons here… better off course is to make 4 channelstrips on a pcb… but then the pcb is greater then 100mm… then the price is greater…

Community users working on it

  • Phatline = PCB & Shematic, UI-Programming, Documentation…

Just let a Private message on the forum to user already involved.
or join the forum: daw-controller-ableton
