EuroRack - AOUT-NG - IO-Port and Frontpanel

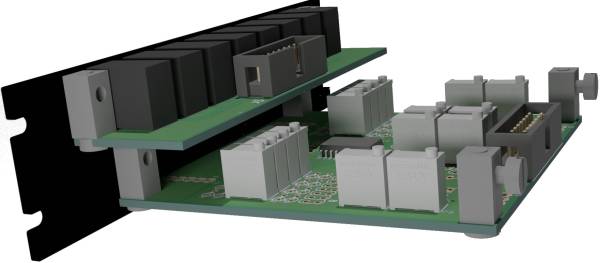

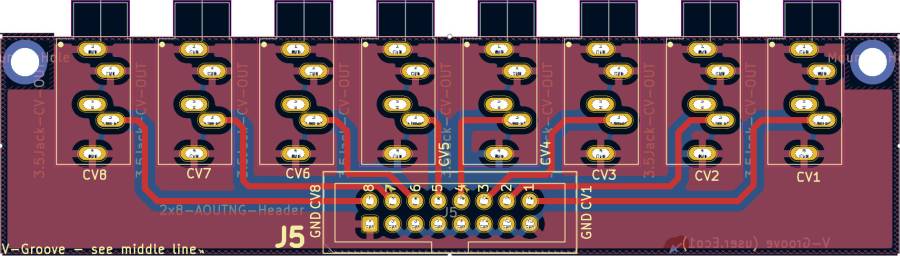

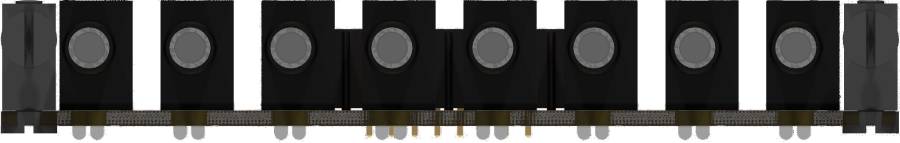

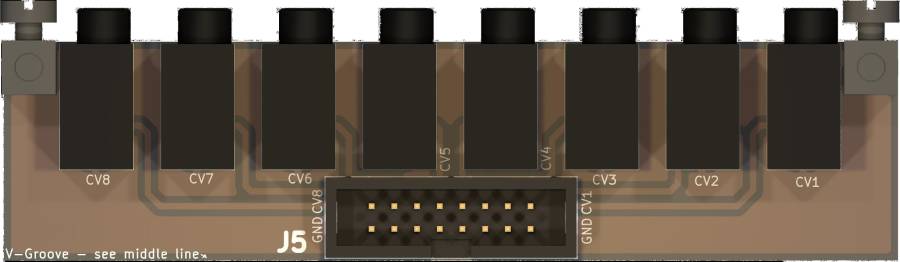

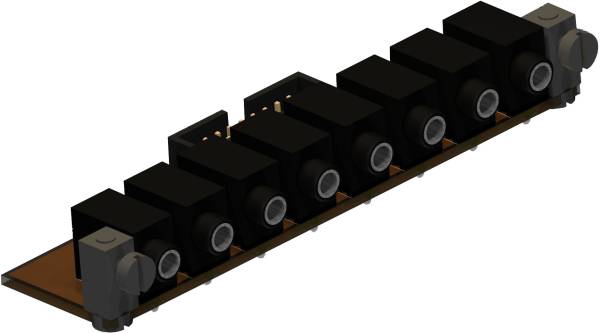

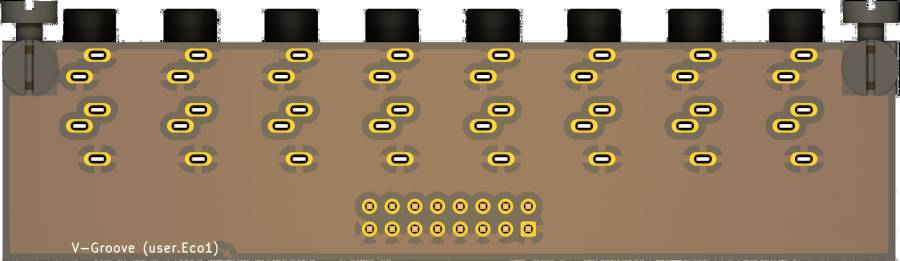

PCB Size is 100x40mm
Hardware Requirements
- Soldering Iron - with a Dip that can Handle Thruhole-Parts solder Paste…
- The other Parts from the BOM
- a Midibox Core32 + Aout-NG
Building and BOM
All necessery Information is printet on the PCB, but also check the Shematic…
Mouser:
| Ref | Q | mouser | Type | Footprint | Description |
|---|---|---|---|---|---|
| J5 | 1 | 517-30316-6002 | 2×8 Pin Header | 2×8 Pin Header 2.54 * 2.54 Pitch | to connect to Aout-NG J5 |
| J5 | 2 | 710-61201623021 | 2×8 Pin Header | 2×8 Pin Header 2.54 * 2.54 Pitch | to connect to Aout-NG J5 |
| U3 | 1 | 771-74HC14D-T | 74HC14 | SOIC-14 | SOLDER SKILLs |
| Cable | 1 | 617-09180407001 | Flat | a quantity forEver - you may have that already | |
4x Leiterplatten Montageblock aka Standoffs 100x summed 30€
You will also need M3 Screws - 4 off them…
Also here it is clever to order 100 pieces for a cheaper price - you will need this on all my projects…
if you order the PCB via my Gerbers you get 4 PCB on 1 100x100mm PCB… on JLCPCB you get min 5 of thes PCBs… so you may order the needet Parts 20x times

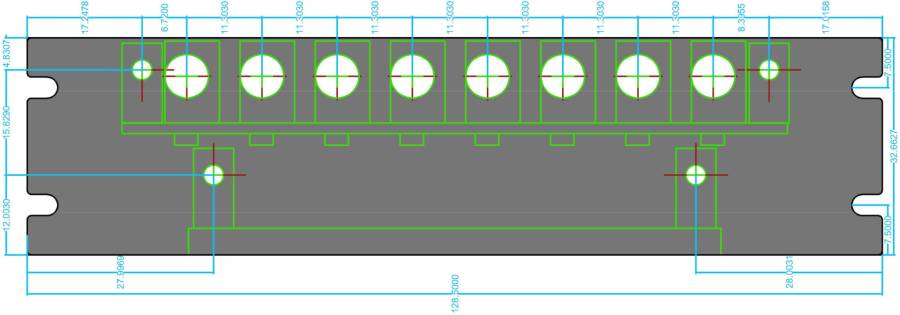

Frontpanel
Recommend Material
2mm x 128.5 x 17.78 Aluminium, anodised
A cheaper way is: order a 1,6mm thick Aluminium PCB as Frontpanel:
I will test this… later the gerbers:
To Do
waiting for the PCBs and Panels…
Community users working on it
- Phatline = PCB & Shematic, Documentation…
Just let a Private message on the forum to user already involved.
