* Route 1 Userinterface to 8 Cores
* So you save space in your Eurorack
* So you save money
* Route SRIO (J89 aka DIN and DOUT)
* ROUTE 8x OLED Screens (with a extra expansion PCB…)
* No Support for AIN

ready for Pick and Place
–all Parts are presoldered except:

• 2x Switches

• 8x LEDs

• Micromatch Headers


• up to 8 STM32F4 compatible MIOS32 Cores (J89, J15AB)

• Soldering Iron - with a Dip that can Handle Thruhole-Parts, solder Paste…

• dont forget the Micromatch connectors, and Ribbon cables

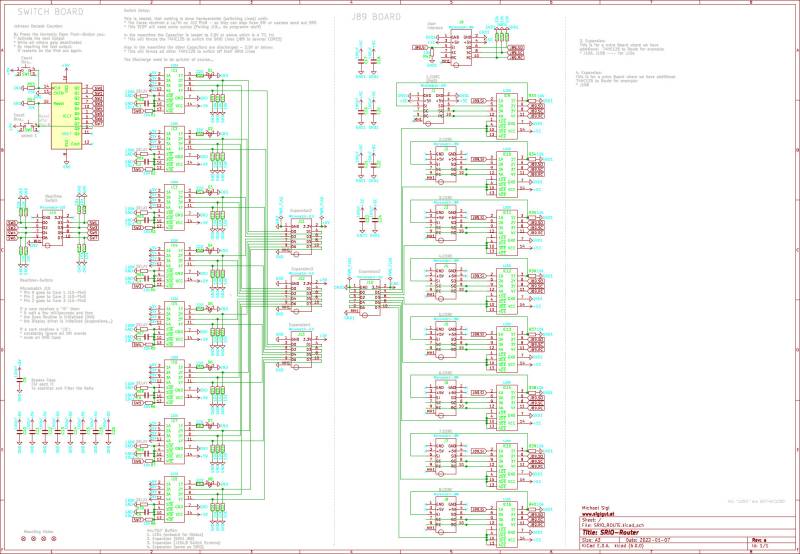

srio-router-shematic.pdf

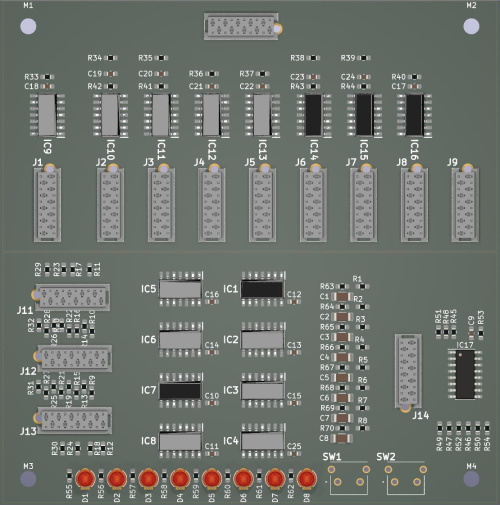

The Design is optimized for Pick and Place > all SMD Parts are on the Top-PCB
The Rest is Thruhole > easy handsolder

now waiting for Presoldered PCBs

these are the parts which must be handsoldered
14-24x Micromatch Header 2x5p:
Mouser: 571-12150790
Reichelt: MPE 369-1-010
LCSC: C590954

14-24 Micromatch Plug 2x5p or even more…:
Mouser: 571-1-2178712-0
Reichelt: MPE 372-1-010

2x Tact Switch:
Mouser: 113-DTSA-65N-V
Reichelt: TASTER 3305B

8x 3mm LED Thruhole ca 400mcd: Mouser: 859-LTL1CHJETNN
Reichelt: EVL 1224-10SURC

Flat-band-Cable - 30m !!! x 40pins…last forever:
Mouser: 617-09180407001

these are the parts which are presoldered by the Pick and Place Machine
