TM5-DinDoutGates
this is one essential part for my triggermatrix5
it gives 24 Digital Inputs, and 32 Digital Outputs, while 16 Outputs are used for UI, the othere 16 are buffered, and are for use as 16 GAte/Triggger output at 5V Level

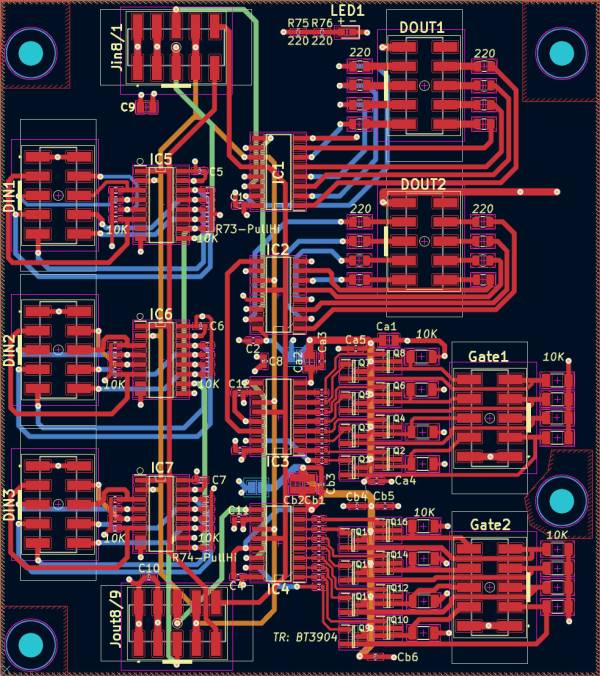

i created this board. its fully SMD, and made it pick and place ready - so no soldering required!

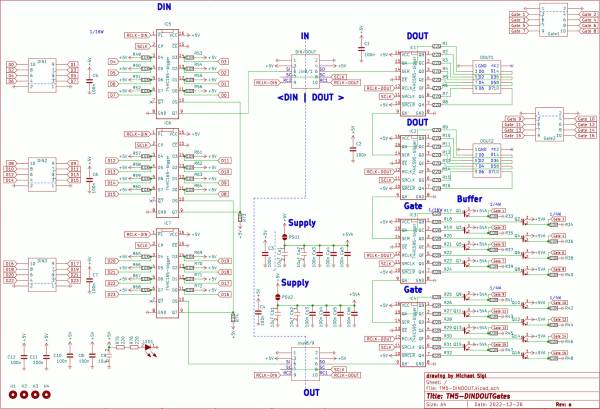

Shematic
Building and BOM
Its build by pick and place robots… so no need to build
BOM
| qty | reference | value | footprint | jlc |
|---|---|---|---|---|
| 18 | C1 – C12, Ca3, Ca4, Ca5, Cb3, Cb4, Cb5, Cb6 | 100n | C_0402 | C307331 |
| 5 | C9, Ca1, Ca2, Cb1, Cb2 | 10uF | C0805 | C440198 |
| 5 | DIN1, DIN2, DIN3, Gate1, Gate2, Gates | Pin-Head-10-SMD C124391 | ||
| 4 | DOUT1, DOUT2, Jin8/1, Jout8/9 DIN/DOUT | Pin-Head-10-SMD C124391 | ||
| 4 | IC1, IC2, IC3, IC4 | 74HC595-bigger | HC595-smd | C5947 |
| 3 | IC5, IC6, IC7 | 74HC165-bigger | HC165-smd | C5613 |
| 1 | LED1 | LED LED-0603 | C2286 | |
| 16 | Q1 – Q16 | MMBT3904-7-F MMBT3904-7-F | C20526 | |
| 16 | R1 – R16 | 220 R_0805 | C25294 | |
| 42 | R17 – R74 | 10K R_0402 | C25744 | |
| 16 | R33 – R48 | 10K R_1206 | C17902 | |
| 2 | R75, R76 | 220 R_0402 | C25091 |
To Do
waiting for the assembled Prototype
Community users working on it
- Phatline = PCB & Shematic, UI-Programming, Documentation…
Just let a Private message on the forum to user already involved.
or join the forum: Triggermatrix 5
