TM5 Gate-Expansion

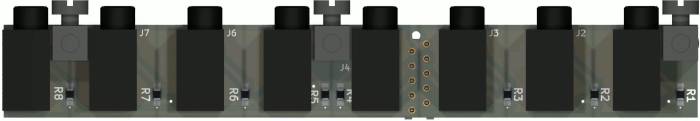

This are the Gate In/Out boards, 4 off them are needet to get 16x Gate-input/Trigger, and 16x Gate-Output


Building and BOM

You need this PCB 4times


qty reference value footprint MouserPartNr
1 Gate1 Header-2×5-Micromatch Header-2×5-Micromatch 571-1-2178710-0
8 J1-J8 3.5Jack for Gates 3-5JACK-CUI_SJ1-3535NG 490-SJ1-3535NG
8 R1-R8 1K R-1K-0805-250mW 667-ERJ-P06J102V

ok this is a list for one PCB, for Triggermatrix you need that 4times!
so all following lists are already 4 times values!
copy following list into this


Order from Reichelt:
6xMicromatch-connector 10pin

The 3x Montage Blocks H1,H2,H3 * 4 = 12 - is already includet in the triggermatrix5 - BOM!

To Do

waiting for Prototype PCB

Community users working on it

  • Phatline = PCB & Shematic, UI-Programming, Documentation…

Just let a Private message on the forum to user already involved.
or join the forum: Triggermatrix 5
