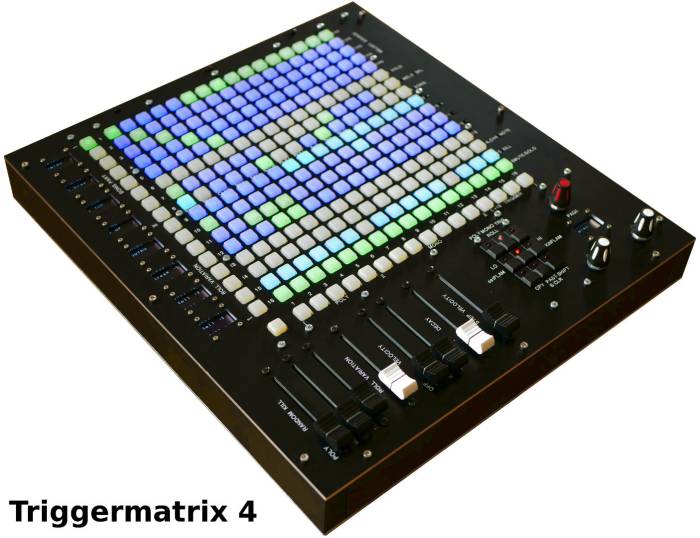

REAL:

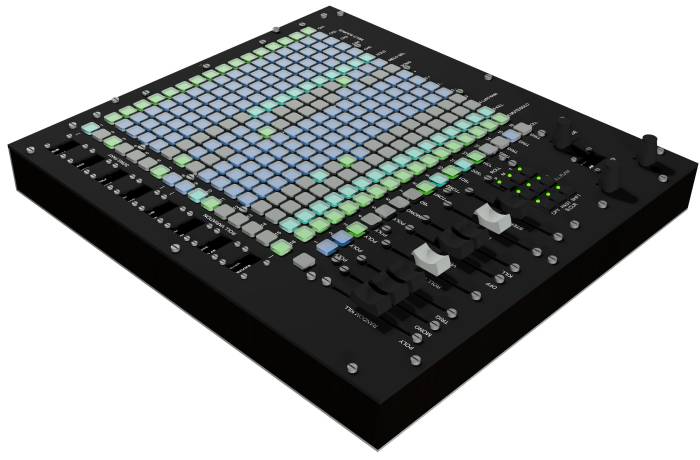

CAD-Design:

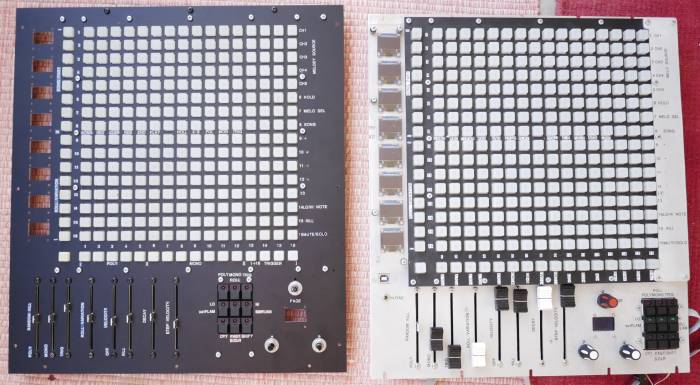

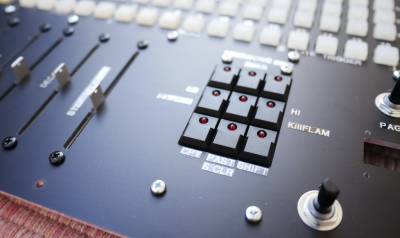

Left: Serial Nr1 « » Right: Prototype

Install MIOS Studio, connect TM4 via USB, and Start the STUDIO

1. Upload MIOS BOOTLOADER
2. (only needet for Virgin Machines) type following commands into the MIOS-TERMINAL:

• set lcd_type GLCD_SSD1306_ROTATED

• set lcd_num_x 9

• set lcd_num_y 1

• set lcd_width 128

• set lcd_height 64

• store


3. (for Version Updates) Unzip the TM4-Firmware, and Upload the TM4.hex
4. Unconnect USB & Connect the USB again — finished.

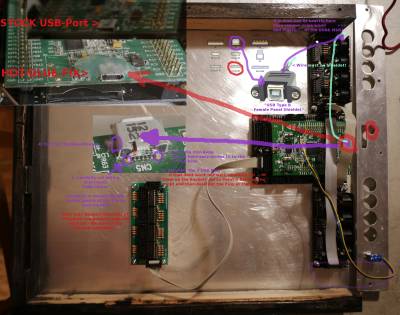

5. If the Machine is not detected by mios studio, and you already checked the usb-connections, the device or the code is broken, for that on the backside of TM4 is a switch, please set it to “bLOAD”, now you can upload new & unbroken codes, dont forget to set it to “normal” back again - after upload new code - else the APP will not boot…

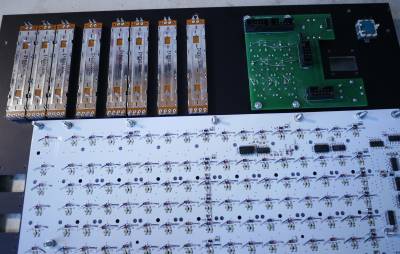

• BLM16x16x, not longer produced anymore...

• CORE32 STM32F4

• 2x Midi IO
• DINX4
• 8x 10K Lin, Faders
• 6x Fader-Knob, BLACK
• 2x Fader-Knob, WHITE

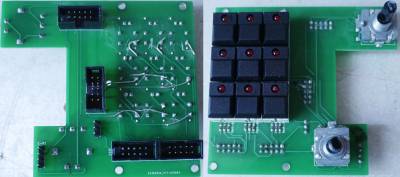

• 9x Switches
• 3x Encoder
• 9x OLED-Displays 128x64px 0,96"
• 108x M2 Nuts
• 36x M2 Screws
• 20x Crimpable connector, 2x5 Pole
• 5x Crimpable connector, 2x8 Pole
• 1x 26Pole Wire
• 1x Boot-Switch for Bootload-Mod
• 3x Encoder Knob
• Full Sized SD-CARD, which is not Hi-Capacity, eg take 4 or 8GB Cards!

• 2x Wood: 15 x 400 x 39mm, or > 16 x 400 x 39mm (39mm is minimal, i took 40mm…)
• 1x Wood: 15 x 335 x 39mm, or > 16 x 333 x 39mm (39mm is minimal, i took 40mm…)
• 3mm Alu Plates for Ground and Backpanel (you cut and drill it by your own)

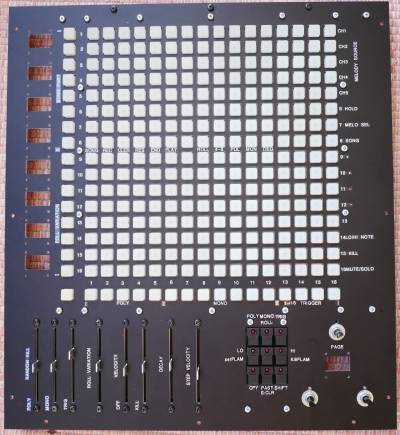

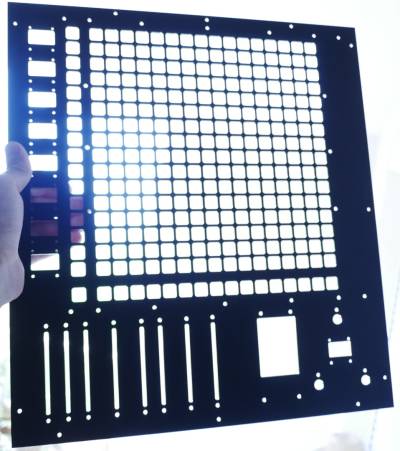

• 3mm Alu Frontpanel, CNC-machined (See DXF-File for more info)

\

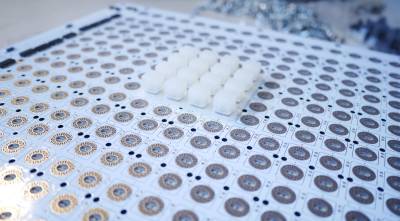

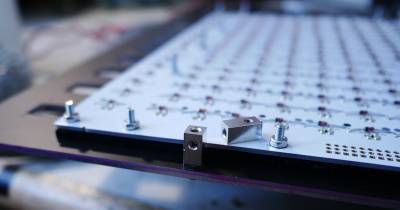

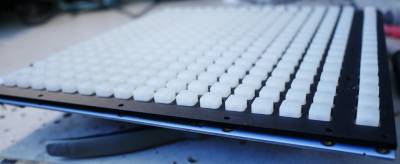

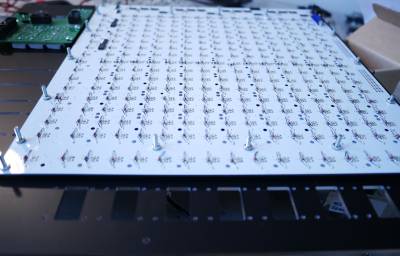

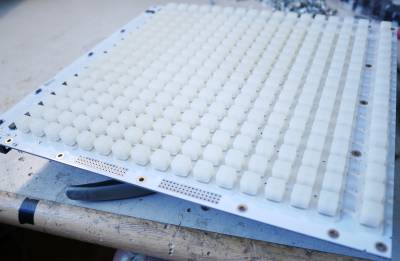

BLM16x16
\ \ \ \ \
Code-Block
\ \

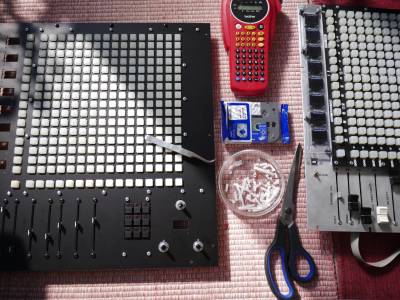

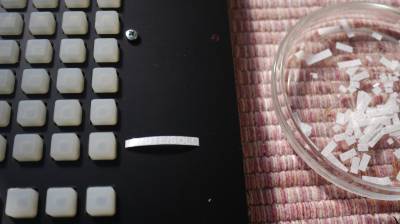

Labels:
\ \ \

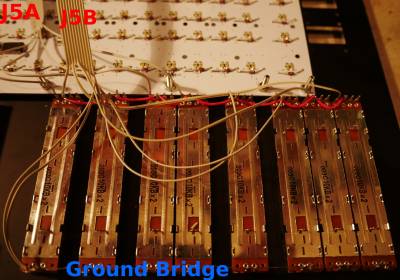

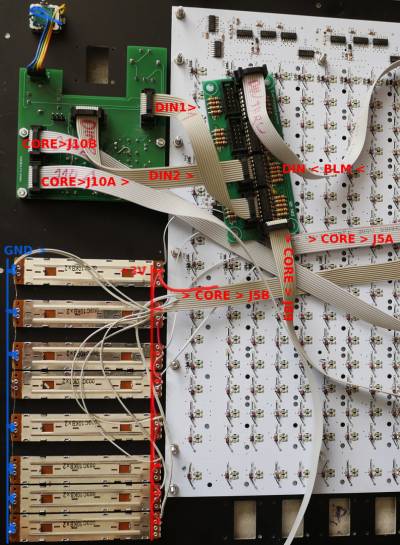

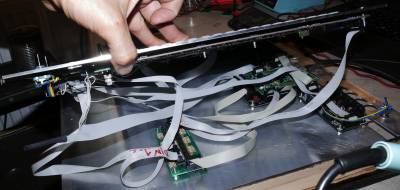

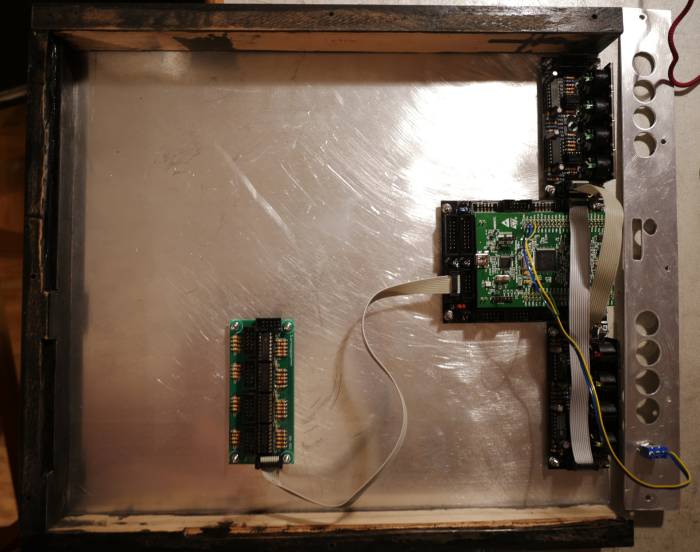

Wires:

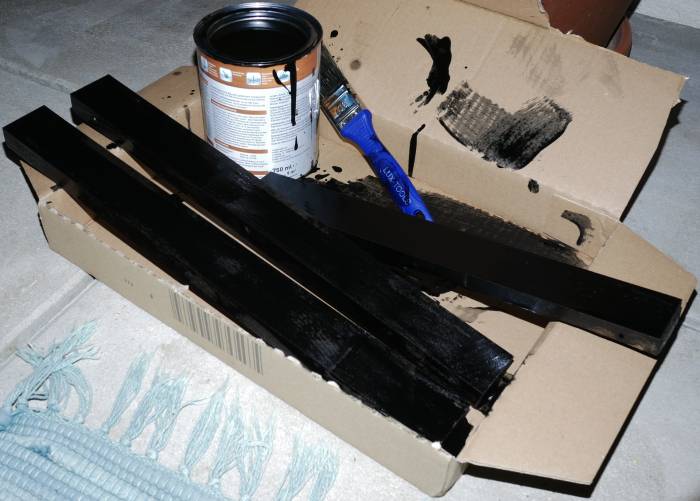

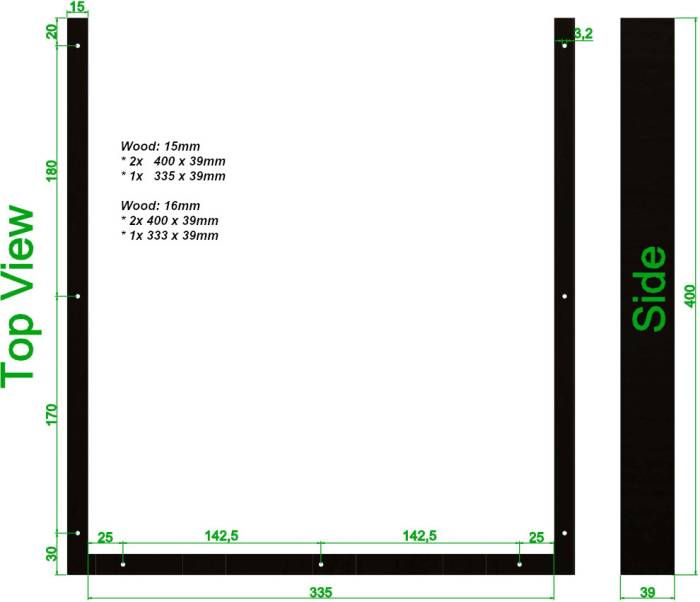

Wood-Elements:
15mm “hard-Wood”, i use BEECH, let it cut by your local hardwarestore…

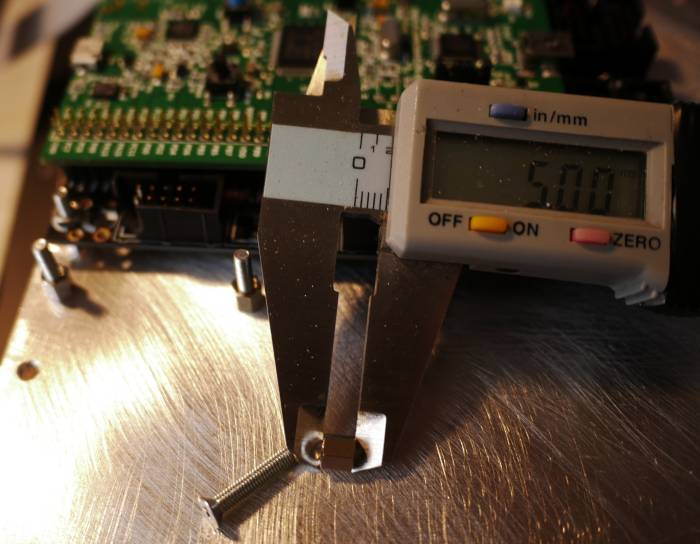

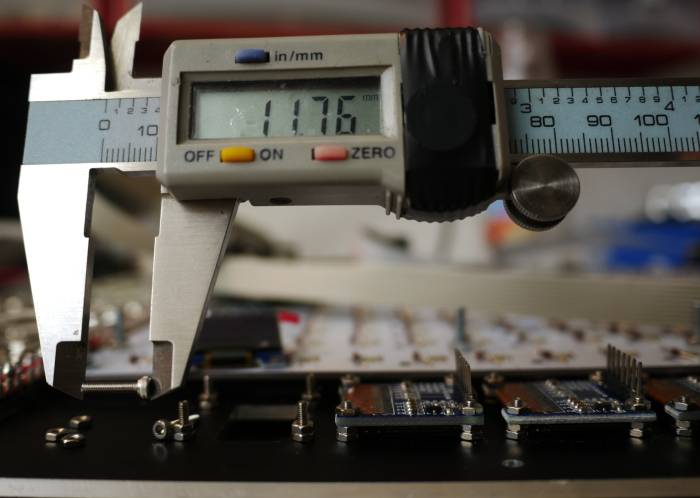

Screws:

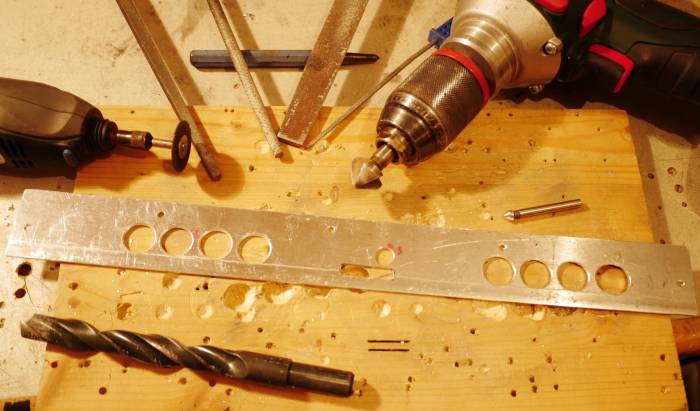

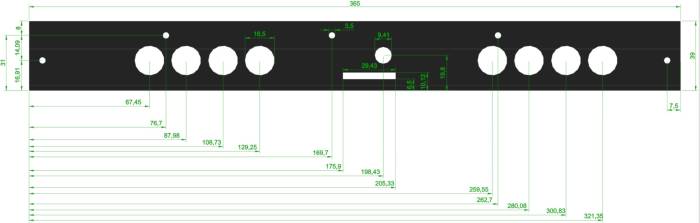

DIY-Back-Panel:
3mm Aluminium Plate

Short spoken:

• 16xdrumtriggers > Trigger-Routing-Matrix > Drum-Syntesizers

• 5x Poly Melody-lines > Trigger-Routing-Matrix > Melody-Syntesizers (track 1-5)

• 7x Mono Melody-lines > Trigger-Routing-Matrix > Melody-Syntesizers/Pitachable Drums (track 6-12)


Rules:

• Drum-Trigger are Velocity Master > we dont care about the velocity of the Melodys

• There are Songs (ProgramChange), each Song has 8 different Trigger-Routings Presets> these are the Song-Parts

• Each Song has 4 StepSequencer-Variants (Rythms)

• Each Song can Remote up to 6 Melody Scenes (LoopA-compatible!)

• 256 Songs saved on SD-Card, and Load-able while playing

• The Tempo has to be changed by Hand or Midi, it is not saved with the song

• System-Settings, like Ports or MidiChannels are Hardcodet, but there will be a sys-menue in near future

• Triggermatrix midi-outs are connected to all synths, so it manage the program-change also

• 16x Trigger-OUTs with fixed Notes, on one midichannel - to connect Drum-Synths, Drum-Samplers

• 5x Polyphonic Melody-Retrigger-OUTs on 5 MidiChannels - to connect MelodySynths to it

• 7x Monophonic Melody-Retrigger-OUTs on 7 MidiChannels - to connect Monophonic Synths like pitchable Drums or Bass-Synths - i think 1-5 is poly the rest is mono!

• All 16 Trigger & ReTrigger-OUTs share the same Routing and Channelstrip UI (Mute, Solo, Roll…)

• Trigger, Poly, Mono-OUTs can be controlled seperatly by > Random-Kill & Velocity-OFFSet

• 5×16 Melody-Input-Matrix - Route & Mix Melody Inputs to the 16 Melody-Retrigger-Outs (saved in Song)

• 16x Melody-Input-Matrix-Hold-Buttons - hold the last Note, save it in the Patch - usefull when pitch drums.


the Matrix has also a Trigger-Sequencer built in, the Melodys have to come from anywhere else, but @ the end, they have to be plugged into the matrix…
Trigger-sequencer, a few facts:

• is a Drum-Step-Sequencer

• 256 Steps in total

• 32 th fixed rate

• 3,4,5,7,11,13/4 tact

• minimal LoopSection is 16steps = 1 Page, there are 16 pages to chain

• intro LoopSection, from step 0 until to the “minimal LoopSection”- is played once, then it loops the normal LoopSection

• The sequencer is made to give a static NoteStream, the Song-Structure is done LIVE by the TriggerMatrix-ROUTER

• Full Velocity control, visible with 3 different colours, Velocity Set via FADER

• Free programmable Swing to each Step, with 2 different swing Length-sets, which are controlled live with encoder

• copy, paste, erase of pages

• copy, paste, erase of rows

• fixed forward play direction


• Phatline = Programming, Documentation, Hardware-Prototype, Testing, Jamin…

• Maxim Anokhin - as first User of TM4 - Serial Nr.1

Just let a Private message on the forum to user already involved
