MBNG_MATRIX

Defines
#define	NUM_MATRIX_DIM_LEVELS   (MIOS32_SRIO_NUM_DOUT_PAGES/2)
Functions
s32	MBNG_MATRIX_Init (u32 mode)
s32	MBNG_MATRIX_LedMatrixChanged (u8 matrix)
s32	MBNG_MATRIX_ButtonMatrixChanged (u8 matrix)
s32	MBNG_MATRIX_SRIO_ParametersChanged (void)
s32	MBNG_MATRIX_PatternSet (u8 num, u8 pos, u16 pattern)
u16	MBNG_MATRIX_PatternGet (u8 num, u8 pos)
s32	MBNG_MATRIX_LcMeterPatternSet (u8 pos, u16 pattern)
u16	MBNG_MATRIX_LcMeterPatternGet (u8 pos)
s32	MBNG_MATRIX_DOUT_PinSet (u8 matrix, u8 color, u16 pin, u8 level)
s32	MBNG_MATRIX_DOUT_PatternSet (u8 matrix, u8 color, u16 row, u16 value, u16 range, u8 pattern, u8 level)
s32	MBNG_MATRIX_DOUT_PatternSet_LC (u8 matrix, u8 color, u16 row, u16 value, u8 level)
s32	MBNG_MATRIX_DOUT_PatternSet_LCMeter (u8 matrix, u8 color, u16 row, u8 meter_value, u8 level)
s32	MBNG_MATRIX_DOUT_PatternSet_Digit (u8 matrix, u8 color, u16 row, u8 value, u8 level, u8 dot)
s32	MBNG_MATRIX_GetRow (void)
s32	MBNG_MATRIX_ButtonHandler (void)
s32	MBNG_MATRIX_MAX72xx_Update (void)
s32	MBNG_MATRIX_DIN_NotifyReceivedValue (mbng_event_item_t *item)
s32	MBNG_MATRIX_DOUT_NotifyReceivedValue (mbng_event_item_t *item)
Variables
const u16	selection_4rows [MBNG_PATCH_NUM_MATRIX_ROWS_MAX]
const u16	selection_8rows [MBNG_PATCH_NUM_MATRIX_ROWS_MAX]
const u16	selection_16rows [MBNG_PATCH_NUM_MATRIX_ROWS_MAX]

---

Detailed Description

DIN/DOUT Scan Matrix functions for MIDIbox NG

---

Define Documentation

#define NUM_MATRIX_DIM_LEVELS   (MIOS32_SRIO_NUM_DOUT_PAGES/2)

Include files local definitions

---

Function Documentation

s32 MBNG_MATRIX_ButtonHandler

(

void

)

This function should be called from a task to check for button changes periodically. Events (change from 0->1 or from 1->0) will be notified to MBNG_MATRIX_NotifyToggle(u8 matrix, u32 pin, u32 pin_value)

Here is the call graph for this function:

s32 MBNG_MATRIX_ButtonMatrixChanged

(

u8

matrix

)

Call this function whenever the BUTTON_MATRIX configuration has been changed

Here is the call graph for this function:

s32 MBNG_MATRIX_DIN_NotifyReceivedValue

(

mbng_event_item_t *

item

)

This function is called by MBNG_EVENT_ItemReceive when a matching value has been received

s32 MBNG_MATRIX_DOUT_NotifyReceivedValue

(

mbng_event_item_t *

item

)

This function is called by MBNG_EVENT_ItemReceive when a matching value has been received

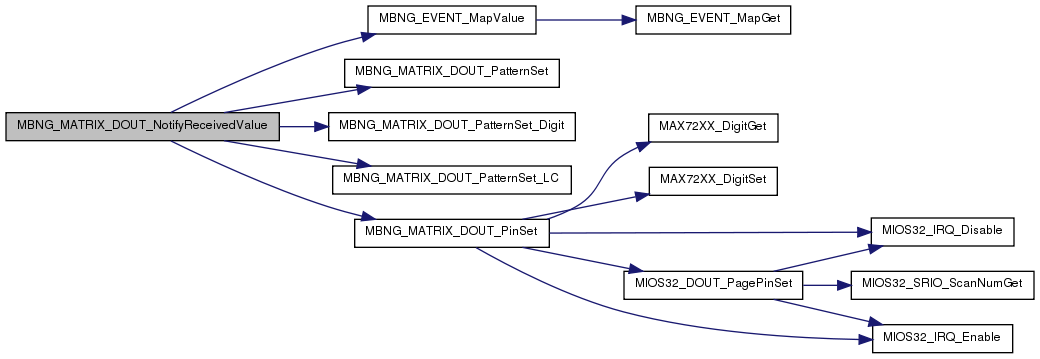

Here is the call graph for this function:

s32 MBNG_MATRIX_DOUT_PatternSet	(	u8	matrix,
		u8	color,
		u16	row,
		u16	value,
		u16	range,
		u8	pattern,
		u8	level
	)

This function sets a pattern DOUT matrix row

s32 MBNG_MATRIX_DOUT_PatternSet_Digit	(	u8	matrix,
		u8	color,
		u16	row,
		u8	value,
		u8	level,
		u8	dot
	)

This function sets a pattern DOUT matrix row for a ASCII Digit

s32 MBNG_MATRIX_DOUT_PatternSet_LC	(	u8	matrix,
		u8	color,
		u16	row,
		u16	value,
		u8	level
	)

This function sets a pattern DOUT matrix row for the LC protocol

s32 MBNG_MATRIX_DOUT_PatternSet_LCMeter	(	u8	matrix,
		u8	color,
		u16	row,
		u8	meter_value,
		u8	level
	)

This function sets a pattern DOUT matrix row for a Meter of the LC protocol

s32 MBNG_MATRIX_DOUT_PinSet	(	u8	matrix,
		u8	color,
		u16	pin,
		u8	level
	)

This function sets a pin on the given DOUT matrix The level ranges from 0..NUM_MATRIX_DIM_LEVELS-1

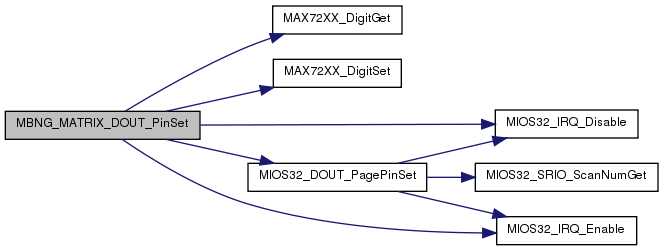

Here is the call graph for this function:

s32 MBNG_MATRIX_GetRow

(

void

)

This function gets the DIN values of the selected row. It should be called from the APP_SRIO_ServiceFinish() hook

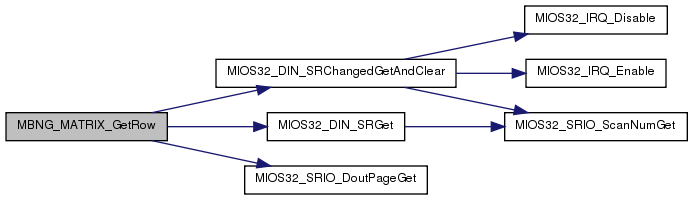

Here is the call graph for this function:

s32 MBNG_MATRIX_Init

(

u32

mode

)

This function initializes the matrix handler

Here is the call graph for this function:

u16 MBNG_MATRIX_LcMeterPatternGet

(

u8

pos

)

s32 MBNG_MATRIX_LcMeterPatternSet	(	u8	pos,
		u16	pattern
	)

s32 MBNG_MATRIX_LedMatrixChanged

(

u8

matrix

)

Call this function whenever the LED_MATRIX configuration has been changed

Here is the call graph for this function:

s32 MBNG_MATRIX_MAX72xx_Update

(

void

)

This function is periodically called from app.c to update the MAX72xx chain

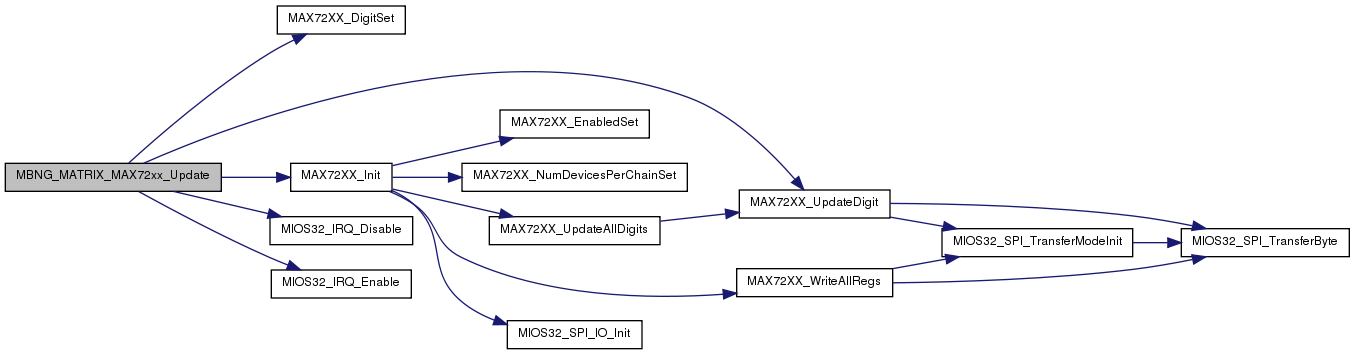

Here is the call graph for this function:

u16 MBNG_MATRIX_PatternGet	(	u8	num,
		u8	pos
	)

s32 MBNG_MATRIX_PatternSet	(	u8	num,
		u8	pos,
		u16	pattern
	)

Set/Get pattern

s32 MBNG_MATRIX_SRIO_ParametersChanged

(

void

)

Call this function if SRIO configuration has been changed (to update page selections)

Here is the call graph for this function:

---

Variable Documentation

const u16 selection_16rows[MBNG_PATCH_NUM_MATRIX_ROWS_MAX]

Initial value:

 {
  0xfffe, 0xfffd, 0xfffb, 0xfff7,
  0xffef, 0xffdf, 0xffbf, 0xff7f,
  0xfeff, 0xfdff, 0xfbff, 0xf7ff,
  0xefff, 0xdfff, 0xbfff, 0x7fff,
}

const u16 selection_4rows[MBNG_PATCH_NUM_MATRIX_ROWS_MAX]

Initial value:

 {
  0xeeee, 0xdddd, 0xbbbb, 0x7777,
  0xeeee, 0xdddd, 0xbbbb, 0x7777,
  0xeeee, 0xdddd, 0xbbbb, 0x7777,
  0xeeee, 0xdddd, 0xbbbb, 0x7777,
}

const u16 selection_8rows[MBNG_PATCH_NUM_MATRIX_ROWS_MAX]

Initial value:

 {
  0xfefe, 0xfdfd, 0xfbfb, 0xf7f7,
  0xefef, 0xdfdf, 0xbfbf, 0x7f7f,
  0xfefe, 0xfdfd, 0xfbfb, 0xf7f7,
  0xefef, 0xdfdf, 0xbfbf, 0x7f7f,
}
