MIOS32_USB

Data Structures
struct	TLineCoding
Defines
#define	DSCR_DEVICE 1
#define	DSCR_CONFIG 2
#define	DSCR_STRING 3
#define	DSCR_INTRFC 4
#define	DSCR_ENDPNT 5
#define	CS_INTERFACE 0x24
#define	CS_ENDPOINT 0x25
#define	LE_WORD(x) ((x)&0xFF),((x)>>8)
#define	SET_LINE_CODING 0x20
#define	GET_LINE_CODING 0x21
#define	SET_CONTROL_LINE_STATE 0x22
#define	MIOS32_USB_MIDI_NUM_INTERFACES 2
#define	MIOS32_USB_MIDI_AC_INTERFACE_IX 0x00
#define	MIOS32_USB_MIDI_AS_INTERFACE_IX 0x01
#define	MIOS32_USB_MIDI_INTERFACE_OFFSET 2
#define	MIOS32_USB_MIDI_SIZ_CLASS_DESC (7+MIOS32_USB_MIDI_NUM_PORTS*(6+6+9+9)+9+(4+MIOS32_USB_MIDI_NUM_PORTS)+9+(4+MIOS32_USB_MIDI_NUM_PORTS))
#define	MIOS32_USB_MIDI_SIZ_CONFIG_DESC (9+MIOS32_USB_MIDI_USE_AC_INTERFACE*(9+9)+MIOS32_USB_MIDI_SIZ_CLASS_DESC)
#define	MIOS32_USB_MIDI_SIZ_CLASS_DESC_SINGLE_USB (7+1*(6+6+9+9)+9+(4+1)+9+(4+1))
#define	MIOS32_USB_MIDI_SIZ_CONFIG_DESC_SINGLE_USB (9+MIOS32_USB_MIDI_USE_AC_INTERFACE*(9+9)+MIOS32_USB_MIDI_SIZ_CLASS_DESC_SINGLE_USB)
#define	MIOS32_USB_COM_NUM_INTERFACES 2
#define	MIOS32_USB_COM_SIZ_CONFIG_DESC 58
#define	MIOS32_USB_COM_CC_INTERFACE_IX (MIOS32_USB_MIDI_INTERFACE_OFFSET + 0x00)
#define	MIOS32_USB_COM_CD_INTERFACE_IX (MIOS32_USB_MIDI_INTERFACE_OFFSET + 0x01)
#define	MIOS32_USB_COM_INTERFACE_OFFSET (MIOS32_USB_MIDI_INTERFACE_OFFSET + 2)
#define	MIOS32_USB_NUM_INTERFACES (MIOS32_USB_MIDI_NUM_INTERFACES + MIOS32_USB_COM_NUM_INTERFACES)
#define	MIOS32_USB_SIZ_CONFIG_DESC (9 + MIOS32_USB_MIDI_SIZ_CONFIG_DESC + MIOS32_USB_COM_SIZ_CONFIG_DESC)
#define	MIOS32_USB_SIZ_CONFIG_DESC_SINGLE_USB (9 + MIOS32_USB_MIDI_SIZ_CONFIG_DESC_SINGLE_USB)
#define	MIOS32_USB_SIZ_DEVICE_DESC 18
#define	BUFFER_SIZE 100
#define	RESULT int
#define	NOP_Process NULL
#define	DSCR_DEVICE 1
#define	DSCR_CONFIG 2
#define	DSCR_STRING 3
#define	DSCR_INTRFC 4
#define	DSCR_ENDPNT 5
#define	CS_INTERFACE 0x24
#define	CS_ENDPOINT 0x25
#define	IMR_MSK (CNTR_CTRM \| CNTR_RESETM )
#define	MIOS32_USB_MIDI_NUM_INTERFACES 2
#define	MIOS32_USB_MIDI_AC_INTERFACE_IX 0x00
#define	MIOS32_USB_MIDI_AS_INTERFACE_IX 0x01
#define	MIOS32_USB_MIDI_INTERFACE_OFFSET 2
#define	MIOS32_USB_MIDI_SIZ_CLASS_DESC (7+MIOS32_USB_MIDI_NUM_PORTS*(6+6+9+9)+9+(4+MIOS32_USB_MIDI_NUM_PORTS)+9+(4+MIOS32_USB_MIDI_NUM_PORTS))
#define	MIOS32_USB_MIDI_SIZ_CONFIG_DESC (9+MIOS32_USB_MIDI_USE_AC_INTERFACE*(9+9)+MIOS32_USB_MIDI_SIZ_CLASS_DESC)
#define	MIOS32_USB_COM_NUM_INTERFACES 2
#define	MIOS32_USB_COM_SIZ_CONFIG_DESC 58
#define	MIOS32_USB_COM_CC_INTERFACE_IX (MIOS32_USB_MIDI_INTERFACE_OFFSET + 0x00)
#define	MIOS32_USB_COM_CD_INTERFACE_IX (MIOS32_USB_MIDI_INTERFACE_OFFSET + 0x01)
#define	MIOS32_USB_COM_INTERFACE_OFFSET (MIOS32_USB_MIDI_INTERFACE_OFFSET + 2)
#define	MIOS32_USB_NUM_INTERFACES (MIOS32_USB_MIDI_NUM_INTERFACES + MIOS32_USB_COM_NUM_INTERFACES)
#define	MIOS32_USB_SIZ_CONFIG_DESC (9 + MIOS32_USB_MIDI_SIZ_CONFIG_DESC + MIOS32_USB_COM_SIZ_CONFIG_DESC)
#define	MIOS32_USB_SIZ_DEVICE_DESC 18
#define	DSCR_DEVICE 1
#define	DSCR_CONFIG 2
#define	DSCR_STRING 3
#define	DSCR_INTRFC 4
#define	DSCR_ENDPNT 5
#define	CS_INTERFACE 0x24
#define	CS_ENDPOINT 0x25
#define	IMR_MSK (CNTR_CTRM \| CNTR_RESETM)
#define	MIOS32_USB_MIDI_NUM_INTERFACES 2
#define	MIOS32_USB_MIDI_AC_INTERFACE_IX 0x00
#define	MIOS32_USB_MIDI_AS_INTERFACE_IX 0x01
#define	MIOS32_USB_MIDI_INTERFACE_OFFSET 2
#define	MIOS32_USB_MIDI_SIZ_CLASS_DESC (7+MIOS32_USB_MIDI_NUM_PORTS*(6+6+9+9)+9+(4+MIOS32_USB_MIDI_NUM_PORTS)+9+(4+MIOS32_USB_MIDI_NUM_PORTS))
#define	MIOS32_USB_MIDI_SIZ_CONFIG_DESC (9+MIOS32_USB_MIDI_USE_AC_INTERFACE*(9+9)+MIOS32_USB_MIDI_SIZ_CLASS_DESC)
#define	MIOS32_USB_MIDI_SIZ_CLASS_DESC_SINGLE_USB (7+1*(6+6+9+9)+9+(4+1)+9+(4+1))
#define	MIOS32_USB_MIDI_SIZ_CONFIG_DESC_SINGLE_USB (9+MIOS32_USB_MIDI_USE_AC_INTERFACE*(9+9)+MIOS32_USB_MIDI_SIZ_CLASS_DESC)
#define	MIOS32_USB_COM_NUM_INTERFACES 2
#define	MIOS32_USB_COM_SIZ_CONFIG_DESC 58
#define	MIOS32_USB_COM_CC_INTERFACE_IX (MIOS32_USB_MIDI_INTERFACE_OFFSET + 0x00)
#define	MIOS32_USB_COM_CD_INTERFACE_IX (MIOS32_USB_MIDI_INTERFACE_OFFSET + 0x01)
#define	MIOS32_USB_COM_INTERFACE_OFFSET (MIOS32_USB_MIDI_INTERFACE_OFFSET + 2)
#define	MIOS32_USB_NUM_INTERFACES (MIOS32_USB_MIDI_NUM_INTERFACES + MIOS32_USB_COM_NUM_INTERFACES)
#define	MIOS32_USB_SIZ_CONFIG_DESC (9 + MIOS32_USB_MIDI_SIZ_CONFIG_DESC + MIOS32_USB_COM_SIZ_CONFIG_DESC)
#define	MIOS32_USB_SIZ_CONFIG_DESC_SINGLE_USB (9 + MIOS32_USB_MIDI_SIZ_CONFIG_DESC_SINGLE_USB)
#define	MIOS32_USB_SIZ_DEVICE_DESC 18
#define	DSCR_DEVICE 1
#define	DSCR_CONFIG 2
#define	DSCR_STRING 3
#define	DSCR_INTRFC 4
#define	DSCR_ENDPNT 5
#define	CS_INTERFACE 0x24
#define	CS_ENDPOINT 0x25
#define	MIOS32_USB_MIDI_NUM_INTERFACES 2
#define	MIOS32_USB_MIDI_AC_INTERFACE_IX 0x00
#define	MIOS32_USB_MIDI_AS_INTERFACE_IX 0x01
#define	MIOS32_USB_MIDI_INTERFACE_OFFSET 2
#define	MIOS32_USB_MIDI_SIZ_CLASS_DESC (7+MIOS32_USB_MIDI_NUM_PORTS*(6+6+9+9)+9+(4+MIOS32_USB_MIDI_NUM_PORTS)+9+(4+MIOS32_USB_MIDI_NUM_PORTS))
#define	MIOS32_USB_MIDI_SIZ_CONFIG_DESC (9+MIOS32_USB_MIDI_USE_AC_INTERFACE*(9+9)+MIOS32_USB_MIDI_SIZ_CLASS_DESC)
#define	MIOS32_USB_MIDI_SIZ_CLASS_DESC_SINGLE_USB (7+1*(6+6+9+9)+9+(4+1)+9+(4+1))
#define	MIOS32_USB_MIDI_SIZ_CONFIG_DESC_SINGLE_USB (9+MIOS32_USB_MIDI_USE_AC_INTERFACE*(9+9)+MIOS32_USB_MIDI_SIZ_CLASS_DESC)
#define	MIOS32_USB_COM_NUM_INTERFACES 2
#define	MIOS32_USB_COM_SIZ_CONFIG_DESC 58
#define	MIOS32_USB_COM_CC_INTERFACE_IX (MIOS32_USB_MIDI_INTERFACE_OFFSET + 0x00)
#define	MIOS32_USB_COM_CD_INTERFACE_IX (MIOS32_USB_MIDI_INTERFACE_OFFSET + 0x01)
#define	MIOS32_USB_COM_INTERFACE_OFFSET (MIOS32_USB_MIDI_INTERFACE_OFFSET + 2)
#define	MIOS32_USB_NUM_INTERFACES (MIOS32_USB_MIDI_NUM_INTERFACES + MIOS32_USB_COM_NUM_INTERFACES)
#define	MIOS32_USB_SIZ_CONFIG_DESC (9 + MIOS32_USB_MIDI_SIZ_CONFIG_DESC + MIOS32_USB_COM_SIZ_CONFIG_DESC)
#define	MIOS32_USB_SIZ_CONFIG_DESC_SINGLE_USB (9 + MIOS32_USB_MIDI_SIZ_CONFIG_DESC_SINGLE_USB)
#define	MIOS32_USB_SIZ_DEVICE_DESC 18
Typedefs
typedef enum _RESUME_STATE	RESUME_STATE
typedef enum _DEVICE_STATE	DEVICE_STATE
typedef enum _DEVICE_STATE	DEVICE_STATE
Enumerations
enum	_RESUME_STATE { RESUME_EXTERNAL, RESUME_INTERNAL, RESUME_LATER, RESUME_WAIT, RESUME_START, RESUME_ON, RESUME_OFF, RESUME_ESOF }
enum	_DEVICE_STATE { UNCONNECTED, ATTACHED, POWERED, SUSPENDED, ADDRESSED, CONFIGURED, UNCONNECTED, ATTACHED, POWERED, SUSPENDED, ADDRESSED, CONFIGURED }
enum	_DEVICE_STATE { UNCONNECTED, ATTACHED, POWERED, SUSPENDED, ADDRESSED, CONFIGURED, UNCONNECTED, ATTACHED, POWERED, SUSPENDED, ADDRESSED, CONFIGURED }
Functions
s32	MIOS32_USB_Init (u32 mode)
void	USB_IRQHandler (void)
s32	MIOS32_USB_IsInitialized (void)
s32	MIOS32_USB_ForceSingleUSB (void)
void	USB_LP_CAN_RX0_IRQHandler (void)
void	USB_LP_CAN1_RX0_IRQHandler (void)
void	USB_OTG_BSP_Init (USB_OTG_CORE_HANDLE *pdev)
	USB_OTG_BSP_Init Initilizes BSP configurations.
void	USB_OTG_BSP_EnableInterrupt (USB_OTG_CORE_HANDLE *pdev)
	USB_OTG_BSP_EnableInterrupt Enabele USB Global interrupt.
void	OTG_FS_IRQHandler (void)
	This function handles OTG_FS Handler.
void	USB_OTG_BSP_uDelay (const uint32_t usec)
	USB_OTG_BSP_uDelay This function provides delay time in micro sec.
void	USB_OTG_BSP_mDelay (const uint32_t msec)
	USB_OTG_BSP_mDelay This function provides delay time in milli sec.
void	USB_OTG_BSP_ConfigVBUS (USB_OTG_CORE_HANDLE *pdev)
	USB_OTG_BSP_ConfigVBUS Configures the IO for the Vbus and OverCurrent.
void	USB_OTG_BSP_DriveVBUS (USB_OTG_CORE_HANDLE *pdev, uint8_t state)
	BSP_Drive_VBUS Drives the Vbus signal through IO.
s32	MIOS32_USB_ForceDeviceMode (void)
Variables
void(*	pEpInt_IN [7])(void)
void(*	pEpInt_OUT [7])(void)
volatile u16	wIstr
DEVICE_INFO *	pInformation
DEVICE	Device_Table
DEVICE_PROP *	pProperty
USER_STANDARD_REQUESTS *	pUser_Standard_Requests
void(*	pEpInt_IN [7])(void)
void(*	pEpInt_OUT [7])(void)
__ALIGN_BEGIN USB_OTG_CORE_HANDLE USB_OTG_dev	__ALIGN_END
uint32_t	USB_rx_buffer [MIOS32_USB_MIDI_DATA_OUT_SIZE/4]
const USBH_Class_cb_TypeDef	MIOS32_MIDI_USBH_Callbacks

Detailed Description

USB driver for MIOS32

Uses LPCUSB driver from Bertrik Sikken (bertrik@sikken.nl) which is installed under $MIOS32_PATH/drivers/LPC17xx/usbstack -> http://sourceforge.net/projects/lpcusb

Applications shouldn't call these functions directly, instead please use MIOS32_COM or MIOS32_MIDI layer functions

USB driver for MIOS32

Based on driver included in STM32 USB library Some code copied and modified from Virtual_COM_Port demo

Applications shouldn't call these functions directly, instead please use MIOS32_COM or MIOS32_MIDI layer functions

Define Documentation

#define BUFFER_SIZE 100

#define CS_ENDPOINT 0x25

#define CS_INTERFACE 0x24

#define DSCR_CONFIG 2

#define DSCR_DEVICE 1

#define DSCR_ENDPNT 5

#define DSCR_INTRFC 4

#define DSCR_STRING 3

#define GET_LINE_CODING 0x21

#define IMR_MSK (CNTR_CTRM | CNTR_RESETM)

#define IMR_MSK (CNTR_CTRM | CNTR_RESETM )

#define LE_WORD ( x ) ((x)&0xFF),((x)>>8)

#define MIOS32_USB_COM_CC_INTERFACE_IX (MIOS32_USB_MIDI_INTERFACE_OFFSET + 0x00)

#define MIOS32_USB_COM_CD_INTERFACE_IX (MIOS32_USB_MIDI_INTERFACE_OFFSET + 0x01)

#define MIOS32_USB_COM_INTERFACE_OFFSET (MIOS32_USB_MIDI_INTERFACE_OFFSET + 2)

#define MIOS32_USB_COM_NUM_INTERFACES 2

#define MIOS32_USB_COM_SIZ_CONFIG_DESC 58

#define MIOS32_USB_MIDI_AC_INTERFACE_IX 0x00

#define MIOS32_USB_MIDI_AS_INTERFACE_IX 0x01

#define MIOS32_USB_MIDI_INTERFACE_OFFSET 2

#define MIOS32_USB_MIDI_NUM_INTERFACES 2

#define MIOS32_USB_MIDI_SIZ_CLASS_DESC (7+MIOS32_USB_MIDI_NUM_PORTS*(6+6+9+9)+9+(4+MIOS32_USB_MIDI_NUM_PORTS)+9+(4+MIOS32_USB_MIDI_NUM_PORTS))

#define MIOS32_USB_MIDI_SIZ_CLASS_DESC_SINGLE_USB (7+1*(6+6+9+9)+9+(4+1)+9+(4+1))

#define MIOS32_USB_MIDI_SIZ_CONFIG_DESC (9+MIOS32_USB_MIDI_USE_AC_INTERFACE*(9+9)+MIOS32_USB_MIDI_SIZ_CLASS_DESC)

#define MIOS32_USB_MIDI_SIZ_CONFIG_DESC_SINGLE_USB (9+MIOS32_USB_MIDI_USE_AC_INTERFACE*(9+9)+MIOS32_USB_MIDI_SIZ_CLASS_DESC)

#define MIOS32_USB_MIDI_SIZ_CONFIG_DESC_SINGLE_USB (9+MIOS32_USB_MIDI_USE_AC_INTERFACE*(9+9)+MIOS32_USB_MIDI_SIZ_CLASS_DESC_SINGLE_USB)

#define MIOS32_USB_NUM_INTERFACES (MIOS32_USB_MIDI_NUM_INTERFACES + MIOS32_USB_COM_NUM_INTERFACES)

#define MIOS32_USB_SIZ_CONFIG_DESC (9 + MIOS32_USB_MIDI_SIZ_CONFIG_DESC + MIOS32_USB_COM_SIZ_CONFIG_DESC)

#define MIOS32_USB_SIZ_CONFIG_DESC_SINGLE_USB (9 + MIOS32_USB_MIDI_SIZ_CONFIG_DESC_SINGLE_USB)

#define MIOS32_USB_SIZ_DEVICE_DESC 18

#define NOP_Process NULL

#define RESULT int

#define SET_CONTROL_LINE_STATE 0x22

#define SET_LINE_CODING 0x20

Typedef Documentation

typedef enum _DEVICE_STATE DEVICE_STATE

typedef enum _RESUME_STATE RESUME_STATE

Enumeration Type Documentation

enum _DEVICE_STATE

Enumerator:

UNCONNECTED
ATTACHED
POWERED
SUSPENDED
ADDRESSED
CONFIGURED
UNCONNECTED
ATTACHED
POWERED
SUSPENDED
ADDRESSED
CONFIGURED

enum _DEVICE_STATE

Enumerator:

UNCONNECTED
ATTACHED
POWERED
SUSPENDED
ADDRESSED
CONFIGURED
UNCONNECTED
ATTACHED
POWERED
SUSPENDED
ADDRESSED
CONFIGURED

enum _RESUME_STATE

Enumerator:

RESUME_EXTERNAL
RESUME_INTERNAL
RESUME_LATER
RESUME_WAIT
RESUME_START
RESUME_ON
RESUME_OFF
RESUME_ESOF

Function Documentation

s32 MIOS32_USB_ForceDeviceMode ( void )

Returns:: != 0 if device mode is enforced in the bootloader config section

s32 MIOS32_USB_ForceSingleUSB ( void )

Returns:: != 0 if a single USB port has been forced in the bootloader config section

s32 MIOS32_USB_Init ( u32 mode )

Initializes USB interface

Parameters:

[in]

mode

if 0, USB peripheral won't be initialized if this has already been done before
if 1, USB peripheral re-initialisation will be forced
if 2, USB peripheral re-initialisation will be forced, STM32 driver hooks won't be overwritten.
This mode can be used for a local USB driver which installs it's own hooks during runtime.
The application can switch back to MIOS32 drivers (e.g. MIOS32_USB_MIDI) by calling MIOS32_USB_Init(1)

Returns:: < 0 if initialisation failed

Note:: Applications shouldn't call this function directly, instead please use MIOS32_COM or MIOS32_MIDI layer functions

Initializes USB interface

Parameters:

[in]

mode

if 0, USB peripheral won't be initialized if this has already been done before
if 1, USB peripheral re-initialisation will be forced

Returns:: < 0 if initialisation failed

Note:: Applications shouldn't call this function directly, instead please use MIOS32_COM or MIOS32_MIDI layer functions

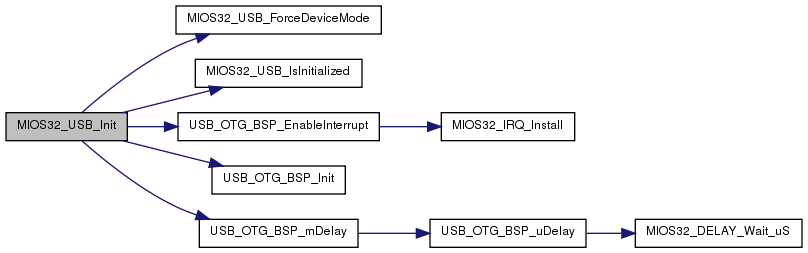

Here is the call graph for this function:

s32 MIOS32_USB_IsInitialized ( void )

Allows to query, if the USB interface has already been initialized.
This function is used by the bootloader to avoid a reconnection, it isn't relevant for typical applications!

Returns:: 1 if USB already initialized, 0 if not initialized

void OTG_FS_IRQHandler ( void )

This function handles OTG_FS Handler.

Parameters:

None

Return values:

None

void USB_IRQHandler ( void )

Interrupt handler for USB

Note:: Applications shouldn't call this function directly, instead please use MIOS32_COM or MIOS32_MIDI layer functions

void USB_LP_CAN1_RX0_IRQHandler ( void )

Interrupt handler for USB

Note:: Applications shouldn't call this function directly, instead please use MIOS32_COM or MIOS32_MIDI layer functions

void USB_LP_CAN_RX0_IRQHandler ( void )

Interrupt handler for USB

Note:: Applications shouldn't call this function directly, instead please use MIOS32_COM or MIOS32_MIDI layer functions

void USB_OTG_BSP_ConfigVBUS ( USB_OTG_CORE_HANDLE * pdev )

USB_OTG_BSP_ConfigVBUS Configures the IO for the Vbus and OverCurrent.

Parameters:

None

Return values:

None

Here is the call graph for this function:

void USB_OTG_BSP_DriveVBUS	(	USB_OTG_CORE_HANDLE *	pdev,
		uint8_t	state
	)

BSP_Drive_VBUS Drives the Vbus signal through IO.

Parameters:

state

: VBUS states

Return values:

None

void USB_OTG_BSP_EnableInterrupt ( USB_OTG_CORE_HANDLE * pdev )

USB_OTG_BSP_EnableInterrupt Enabele USB Global interrupt.

Parameters:

None

Return values:

None

Here is the call graph for this function:

void USB_OTG_BSP_Init ( USB_OTG_CORE_HANDLE * pdev )

USB_OTG_BSP_Init Initilizes BSP configurations.

Parameters:

None

Return values:

None

void USB_OTG_BSP_mDelay ( const uint32_t msec )

USB_OTG_BSP_mDelay This function provides delay time in milli sec.

Parameters:

msec

: Value of delay required in milli sec

Return values:

None

Here is the call graph for this function:

void USB_OTG_BSP_uDelay ( const uint32_t usec )

USB_OTG_BSP_uDelay This function provides delay time in micro sec.

Parameters:

usec

: Value of delay required in micro sec

Return values:

None

Here is the call graph for this function:

Variable Documentation

const __ALIGN_BEGIN u8 USBD_LangIDDesc [4] __ALIGN_END

Initial value:

{
     4,
     USB_DESC_TYPE_STRING,
     0x09,
     0x04,
}

DEVICE Device_Table

const USBH_Class_cb_TypeDef MIOS32_MIDI_USBH_Callbacks

void(* pEpInt_IN[7])(void)

Initial value:

 {
  NOP_Process, NOP_Process, NOP_Process, NOP_Process, NOP_Process, NOP_Process, NOP_Process
}

void(* pEpInt_IN[7])(void)

Initial value:

 {

  MIOS32_USB_MIDI_EP1_IN_Callback,





  NOP_Process,
  NOP_Process,
  MIOS32_USB_COM_EP4_IN_Callback,






  NOP_Process,
  NOP_Process,
  NOP_Process
}

void(* pEpInt_OUT[7])(void)

Initial value:

 {
  NOP_Process, NOP_Process, NOP_Process, NOP_Process, NOP_Process, NOP_Process, NOP_Process
}

void(* pEpInt_OUT[7])(void)

Initial value:

 {

  MIOS32_USB_MIDI_EP1_OUT_Callback,




  NOP_Process,
  MIOS32_USB_COM_EP3_OUT_Callback,
  NOP_Process,





  NOP_Process,
  NOP_Process,
  NOP_Process
}

DEVICE_INFO* pInformation

DEVICE_PROP* pProperty

USER_STANDARD_REQUESTS* pUser_Standard_Requests

uint32_t USB_rx_buffer[MIOS32_USB_MIDI_DATA_OUT_SIZE/4]

volatile u16 wIstr

MIOS32_USB

Data Structures

Defines

Typedefs

Enumerations

Functions

Variables

Detailed Description

Define Documentation

Typedef Documentation

Enumeration Type Documentation

Function Documentation

Variable Documentation
