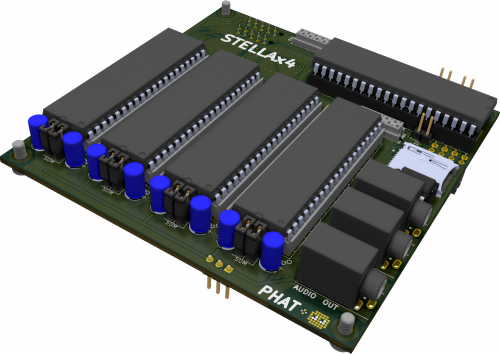

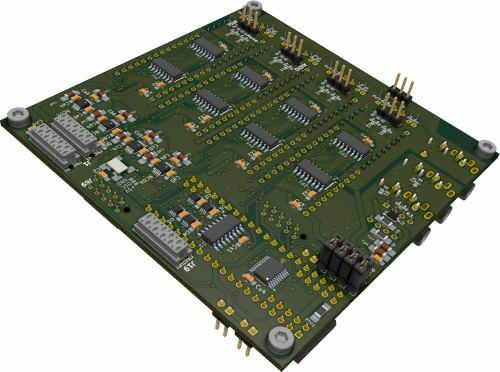

STELLAx4


4x 8Bit Soundchips/TIAś on a 10x10cm PCB,
controlled from a STM32F4 Microcontroller dipcoref4,
based on Antichambreś TIA Module, with AD9833ś as External programmable Clock, the Frequency-range is expandet…
The Board acts a Motherboard, for

  • 4x Soundchip… AND:

also like the stm32f4_module it provides:

  • Midi-IO - 1x IN, 1x OUT > 3,5Jacks/TRS
  • µSD-Card - 2 Save Patches
  • µController-Socket - 2 Plug the dipcore_f4 in, ask antichambre to get one!
  • J19>AoutNG - to connect VCF or VCAs…
  • J8/9>DOUT & DIN - 4 the UI
  • J15 (JLCD1) which handle from Stock 4x SPI-Displays (SSD1306), - 4 the UI
  • J1>chain a nother STELLAx4 as “SLAVE” to it, to expand polyphony

ready for Pick and Place

–all SMD-Parts are on one SIDE and are presoldered..

Features

* Summed or Individual Audio-Outs, selectable via normal Jumpers
* NTSC or PAL > select via SMD-Solder-Jumper
* User-Interface is C-Language-Programmable

Hardware Requirements

  • 4 x TIA/STELLA [PAL or NTSC…)
  • Soldering Iron - with a Dip that can Handle Thruhole-Parts, solder Paste…
  • 5V from Mini-USB-Plug, or 5V at a 2Pin-Header connected to example a Eurorack Power Source (+5VDC!)
  • dont forget Midi TRS Cables

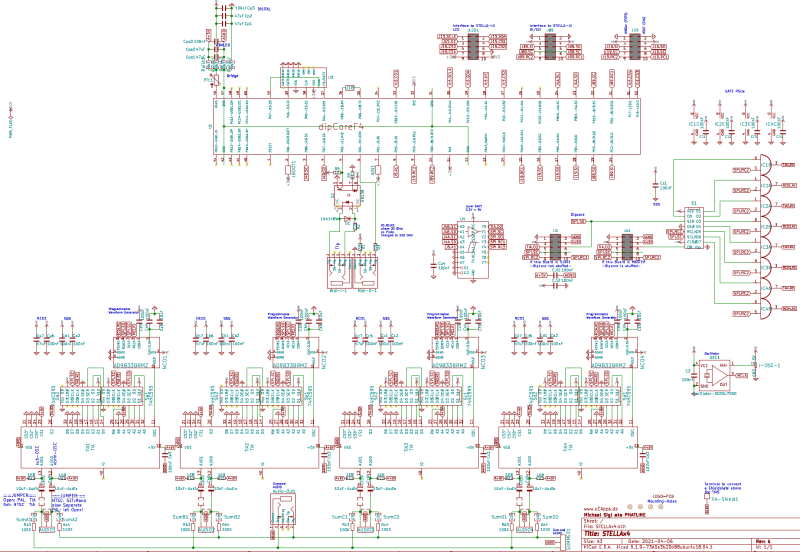

Shematic

Building

The Design is optimized for Pick and Place > all SMD Parts are on the Top-PCB
The Rest is Thruhole > easy

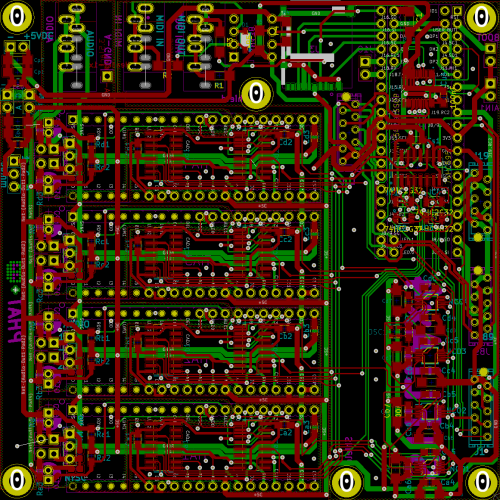

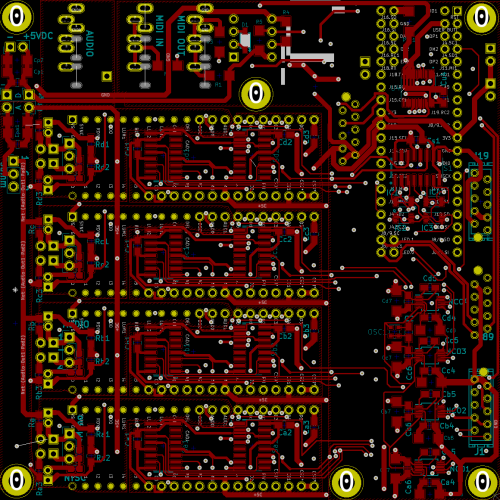

Rev.A

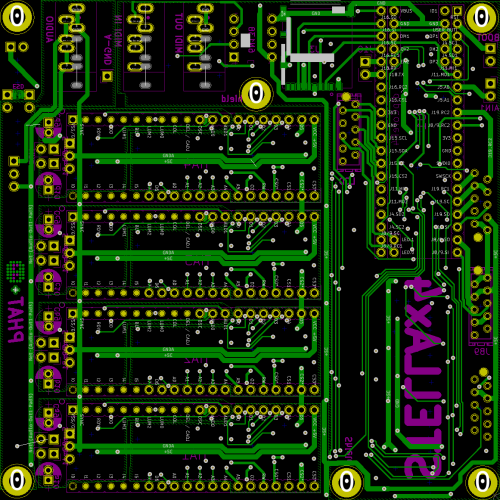

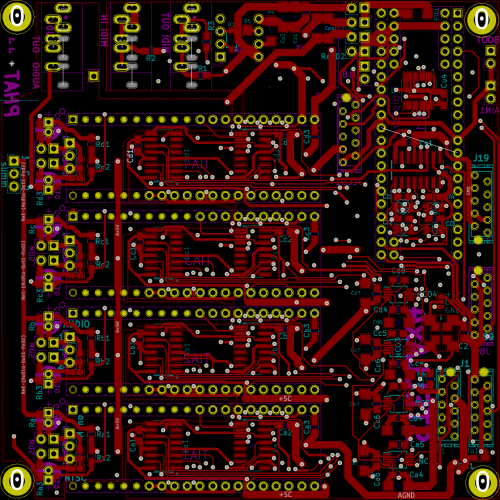

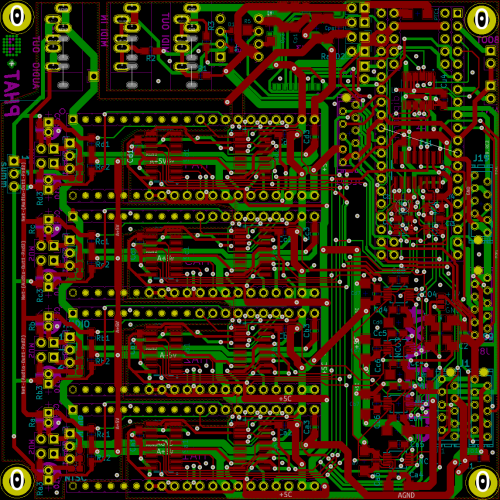

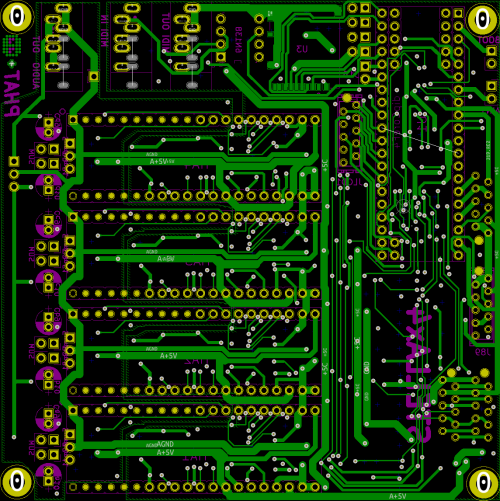

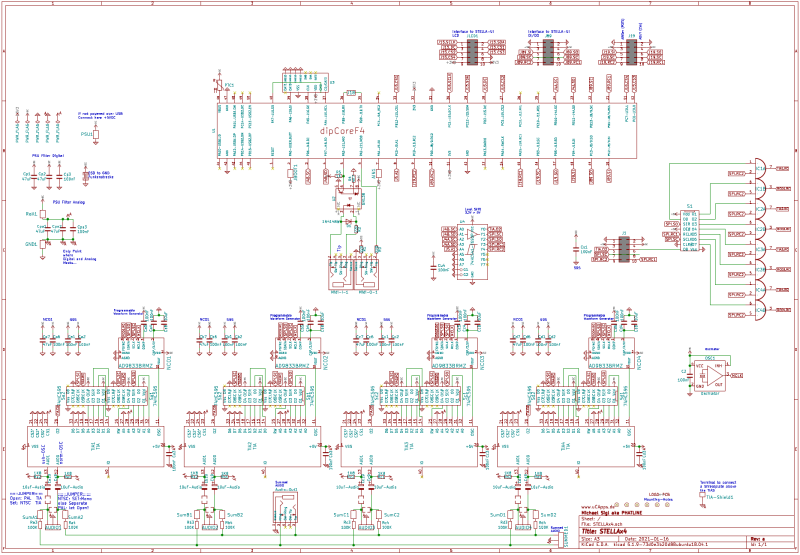

Rev.B



BOM LCSC

these are the parts which are presoldered by the Pick and Place Machine

CommentDesignatorFootprintLCSC Part NumberLibrary Type
100KRa3,Rb3,Rc3,Rd3,Ra4,Rb4,Rc4,Rd4midibox:0805-RC17407basic
100nFCa1,Cb1,Cc1,Cs1,Cd1,Ci1,CJi1,Ca2,Cb2,Cc2,C2,Cd2,Ci2,CJi2,Ca3,Cb3,Cc3,Cd3,Ci3,Cpa3,Cp3,Ca4,Cb4,Cc4,Cd4,Cu4,Ci4,Ca5,Cb5,Cc5,Cd5,Ca6,Cb6,Cc6,Cd6midibox:0805-CC49678basic
10uFCa8,Cb8,Cc8,Cd8midibox:1206-CC13585basic
1KR5midibox:1206-RC4410basic
1K8Ra1,Rb1,Rc1,Rd1,Ra2,Rb2,Rc2,Rd2midibox:0805-RC17398basic
1N4148WD1midibox:SOD123-DIODEC81598basic
220R1,R2,R3midibox:0805-RC17557basic
47uFCpa1,Cp1,Cpa2,Cp2,Ca7,Cb7,Cc7,Cd7midibox:1206-CC96123basic
4K7R4midibox:1206-RC17936basic
74HC2G32IC1,IC2,IC3,IC4SOIC:VSSOP-8_2.3x2mm_P0.5mmC91874extendet
74HC541-TSSOPU4midibox:74HC541-TSSOP20C406865extendet
74HC595Sa1,Sb1,Sc1,Sd1,S1,Sa2,Sb2,Sc2,Sd2midibox:SOP-16_SOIC-16C5947basic
AD9833BRMZNCO1,NCO2,NCO3,NCO4midibox:MSOP-10_3x3mm_P0.5mmC9652extendet
PTCPTC1midibox:1206-RC126818extended


BOM Mouser

ca. <30€ exlc shipping > so better order other stuff too, over 50€ there is free shipping!
Parts for Handsolder:copy list below, and paste in this link

CommentDesignatorMouser Part Nr

647-UKW1H100MDD|8
490-SJ1-3535NG-GR|3
512-6N138M|1
575-1104730841001000|1
200-CES12001TS|3
649-68000-220HLF|1
151-8010-E|12
649-68000-220HLF|1
571-1-2178710-0|5
732-5032CC25.0HJGA3|1
649-68000-220HLF|1
575-1104764041001000|4
798-DM3AT-SF-PEJM5|1

for prototyping i ordered:
490-SJ1-3535NG-GR instead of 490-SJ1-3535NG because it is out of stock - so GREEN sockets for now!

Cable-Connectors for UserInterface and AOUT-Module you will need also:
571-1-2178712-0|8
+ Ribbon Cables for example:
710-63911015521CAB|1

CommentDesignatorMouser Part Nr
10uF-AudioCa9Cb9Cc9Cd9Ca10Cb10Cc10Cd10647-UFG1H100MDM8
3.5JackMidi-I-1Midi-O-1Audio-Out1490-SJ1-3535NG3
6N138U2512-6N138M & 575-11047308410010001
DIPCOREF4_52PU1200-CES12001TS3
Header-1×2-JUMPERSumA-SumD2SumB2RailD2RailA2649-68000-220HLF + 151-8010-E12
Header-1×3AUDIO1SUMMED1AUDIO2AUDIO3AUDIO4649-68000-220HLF1
Header-2×5-MicromatchJLCD1,Jo1,Ji1,J19,J89571-1-2178710-05
Oscillator-5032u7050OSC1732-5032CC25.0HJGA31
PinHead-1×2JBOOT1AIN1J18649-68000-220HLF1
TIATIA1TIA2TIA3TIA4575-11047640410010004
uSD_DM3ATDM3ATU3798-DM3AT-SF-PEJM51

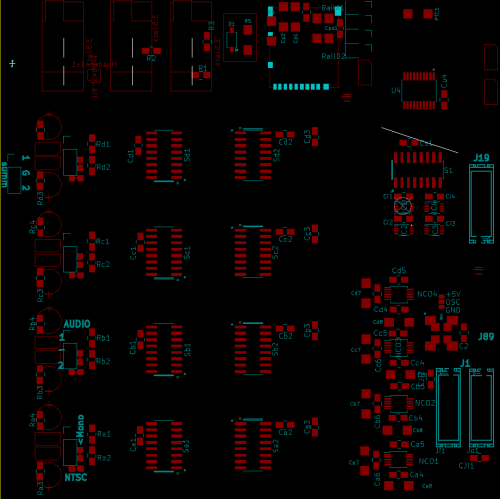

PART Locations
