Display Driver - Board - for 18 SSD1306 Screens
this is one essential part for my triggermatrix5
I need there 17 Displays, and i had good expierence with andys display_driver-board

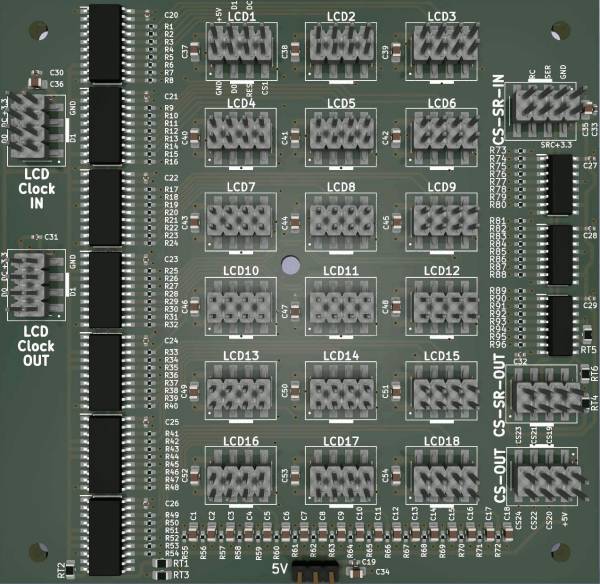

since i didnt want to solder this board by hand again - i created this board. its fully SMD, and made it pick and place ready - so no soldering required!

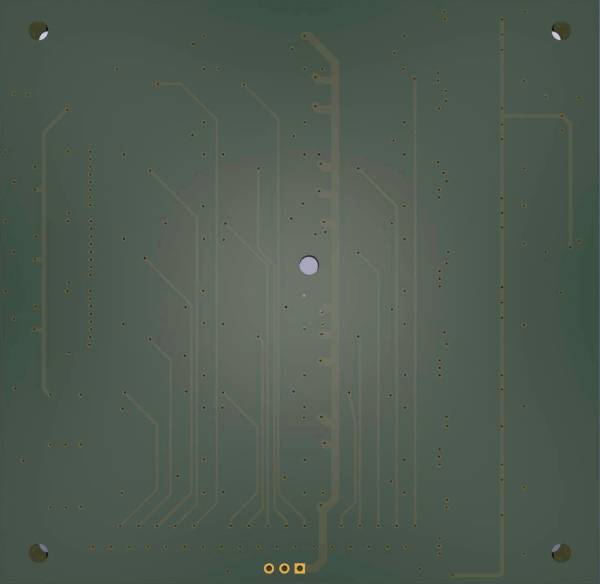

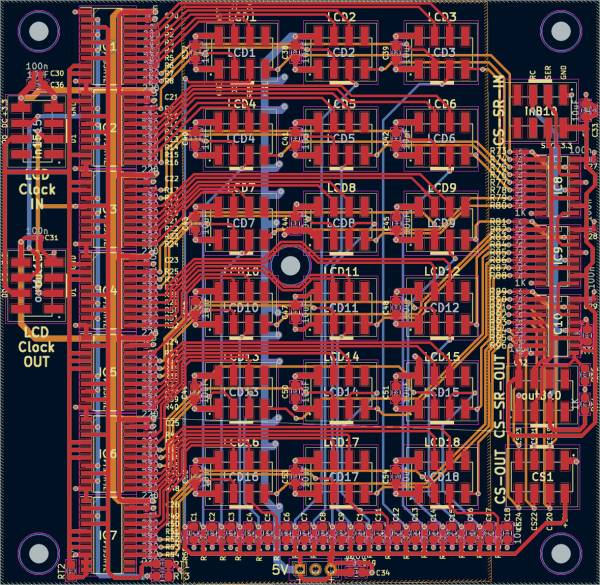

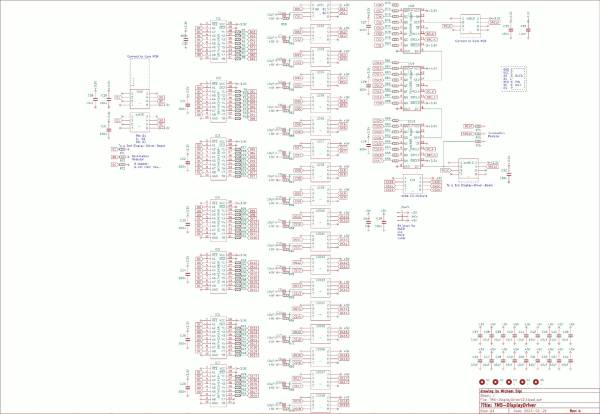

Shematic
Building and BOM
BOM
Follwing list is for reference, and debugging only, no need to order them! all the parts are already soldered on the PCB!
| Comment | Designator | Footprint | LCSC |
|---|---|---|---|
| 10uF | C1-18,C34-54 | 0805_C | CL21A106KAYNNNE |
| 100n | C19-33 | 0402_C | C307331 |
| - | CS1,LCD1-18,inB10,outB10,in15 | PinHead-SMD-2,54mm Pitch | C192300 |
| SN74HC541 | IC1-7 | SOIC127P780X200-20N | C116811 |
| 74HC595 | IC8-10 | SOIC-16 | C5947 |
| 220 OHM | R1-54 | 0402_R | C25091 |
| 1K OHM | R55-96 | 0402_R | C11702 |
Order-List
copy following list into this mouser.com-Link
710-61200823021|22
Order from Reichelt:
17xFemale Pinheader 1x7pin
To Do
waiting for the assembled Prototype
Community users working on it
- Phatline = PCB & Shematic, UI-Programming, Documentation…
Just let a Private message on the forum to user already involved.
or join the forum: Triggermatrix 5
